Switchcraft® Slide Switch for Mustang®, Duosonic®, Jazzmaster®, Jaguar® guitars and Brian May Wiring

Switchcraft® Slide Switch
Mustang®, Duosonic®, Jazzmaster®, Jaguar® guitars and Brian May Wiring
(Please Read the Details)

Premium quality double-pole switches from Switchcraft.
This is not an ordinary Switchcraft slide switch.
This is the top quality variant from Switchcraft that are being used in boutique guitar builds.

Typically used for Mustang, Duosonic, Jazzmaster and Jaguar guitars.
Used by Fender and other guitars, amps, and pedals.
2 position and 3 position switches available.

This switch can be used when doing wiring mods like series-parallel, phase-in phase-out, split-coil, and more!

Options:

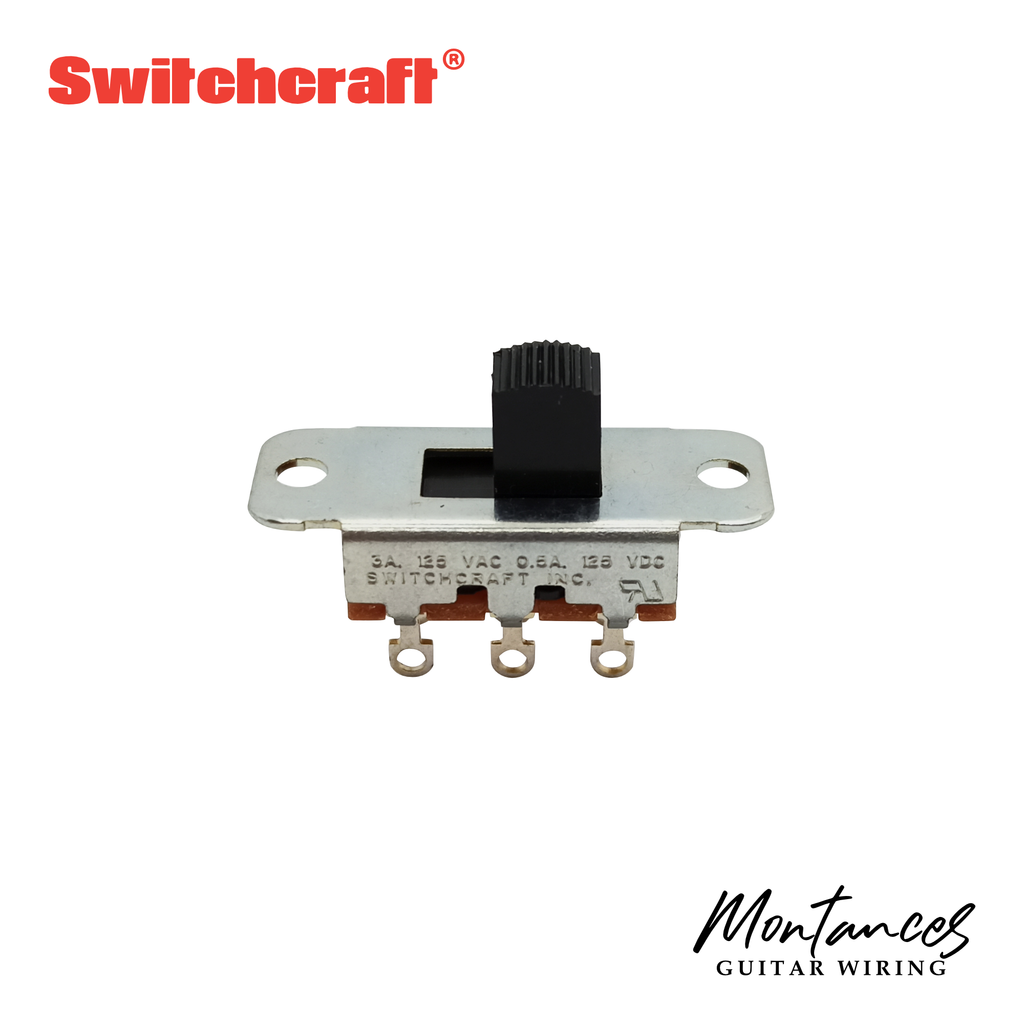

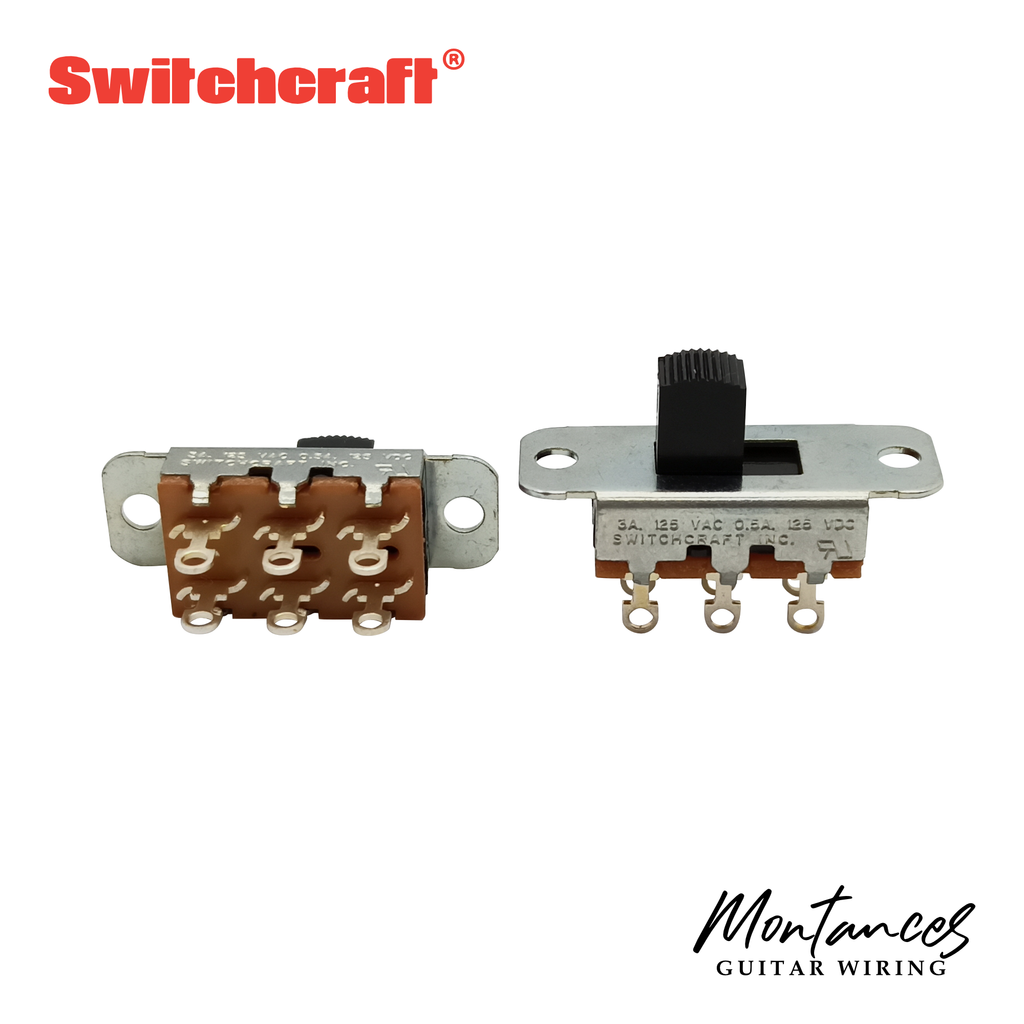

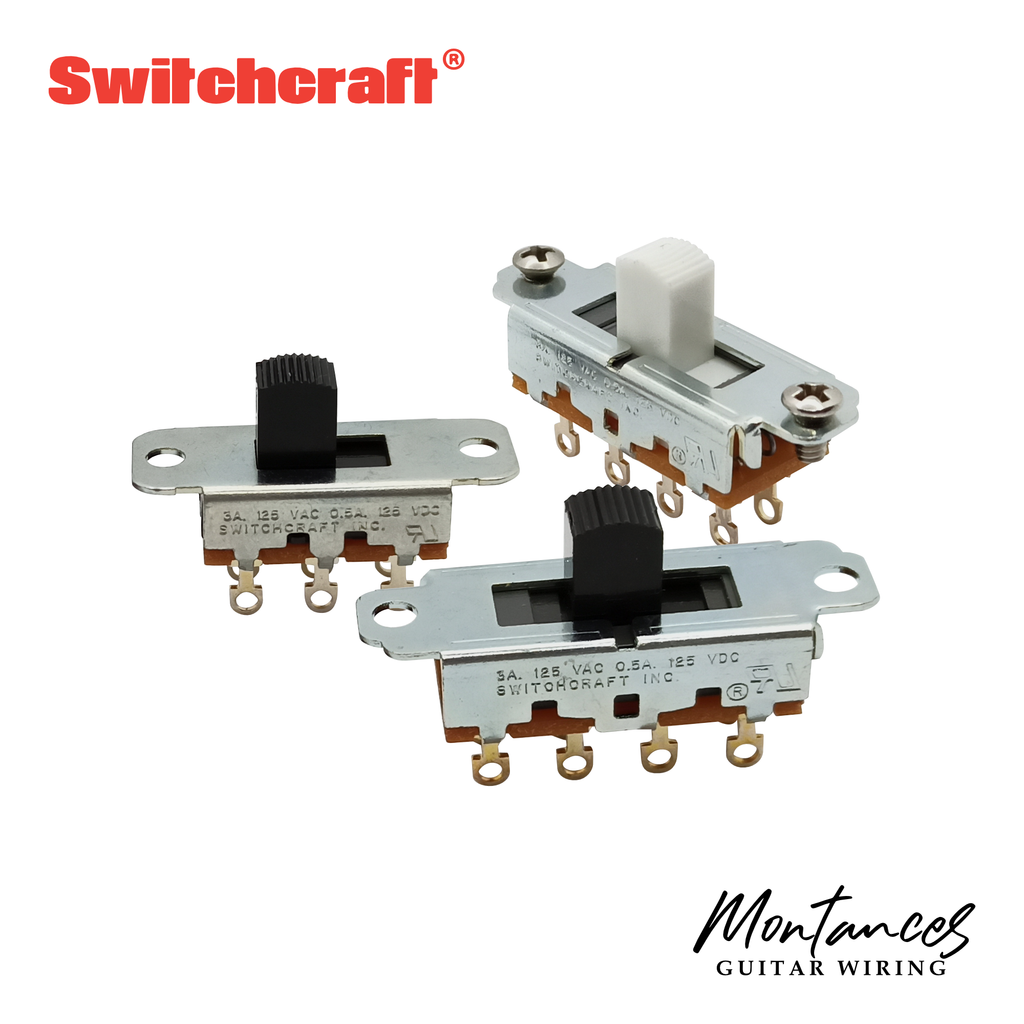

2-way DPDT ON-ON switch - black

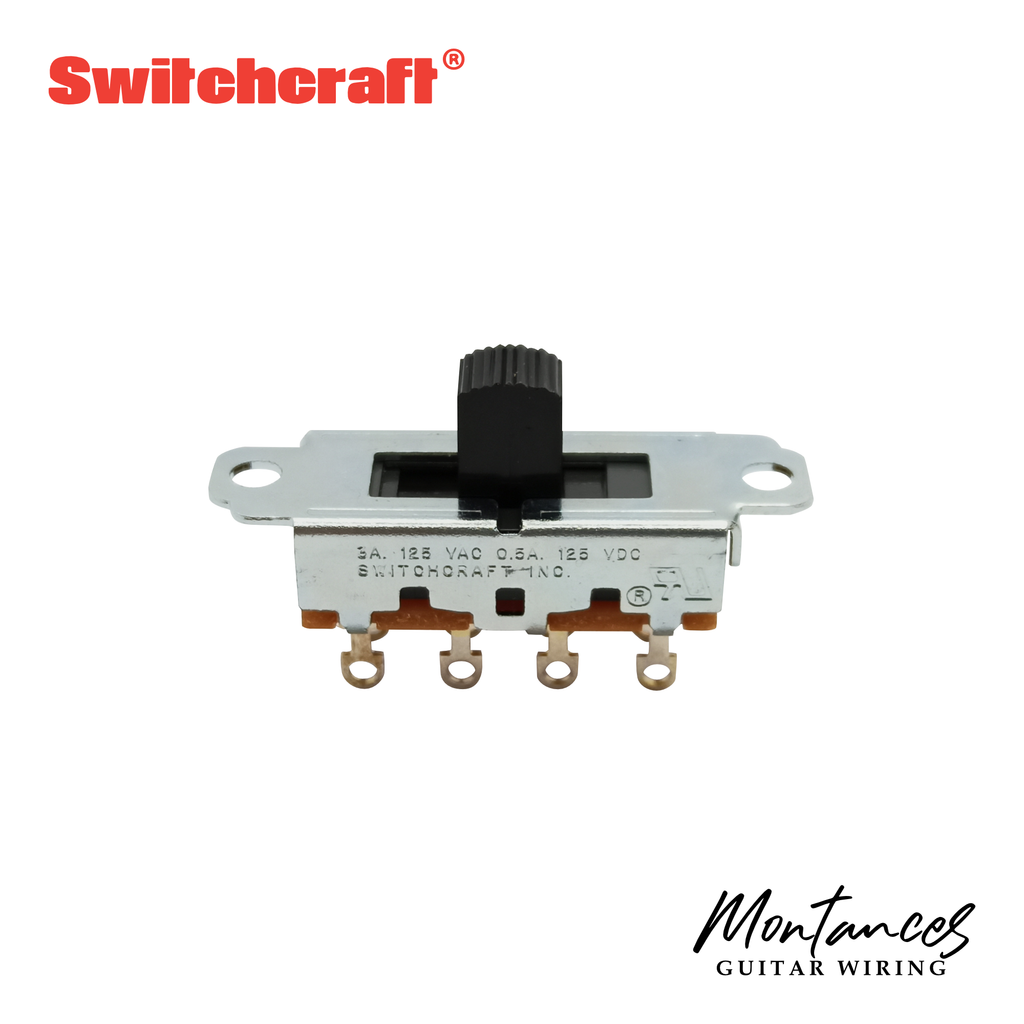

3-way DP3T ON-ON-ON switch - black

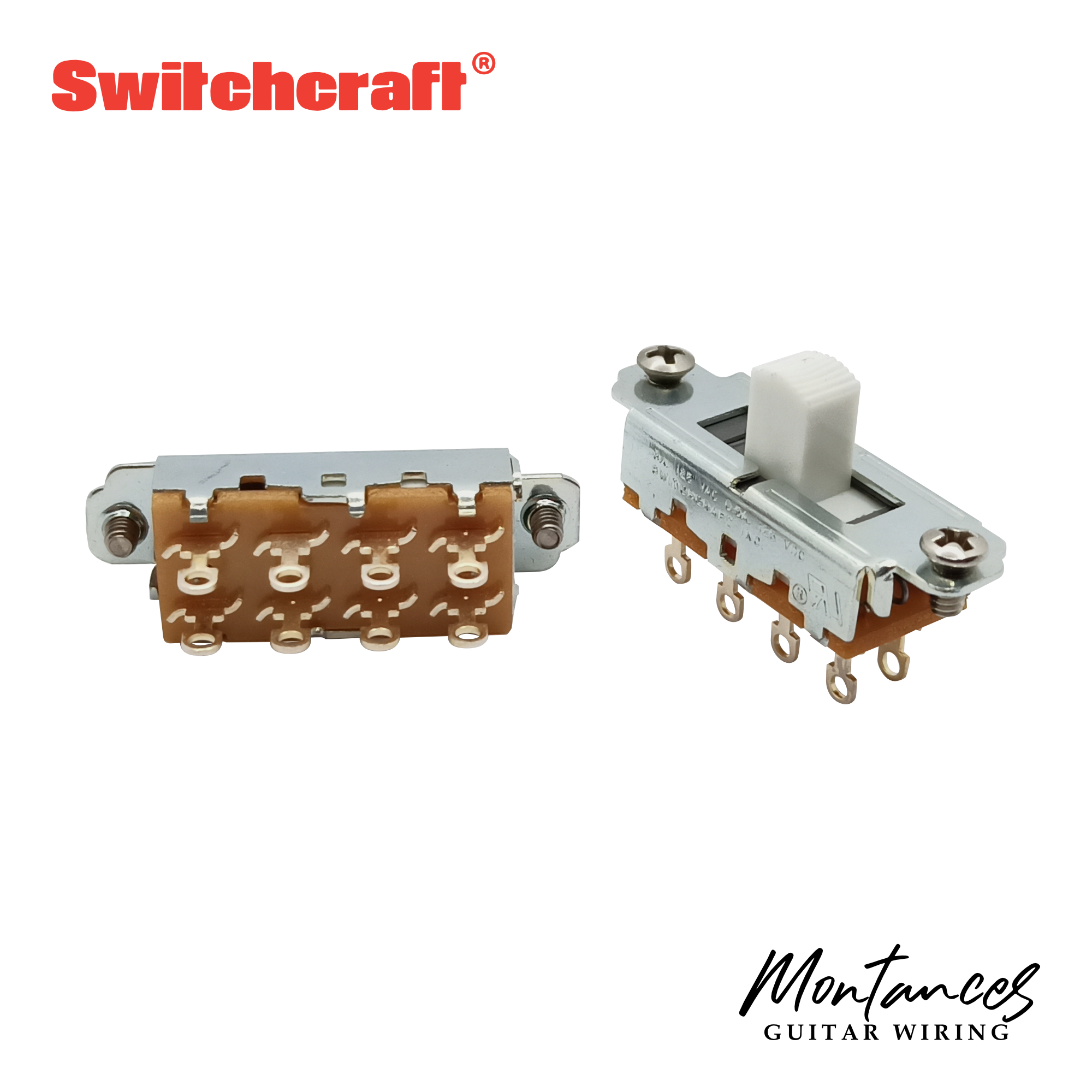

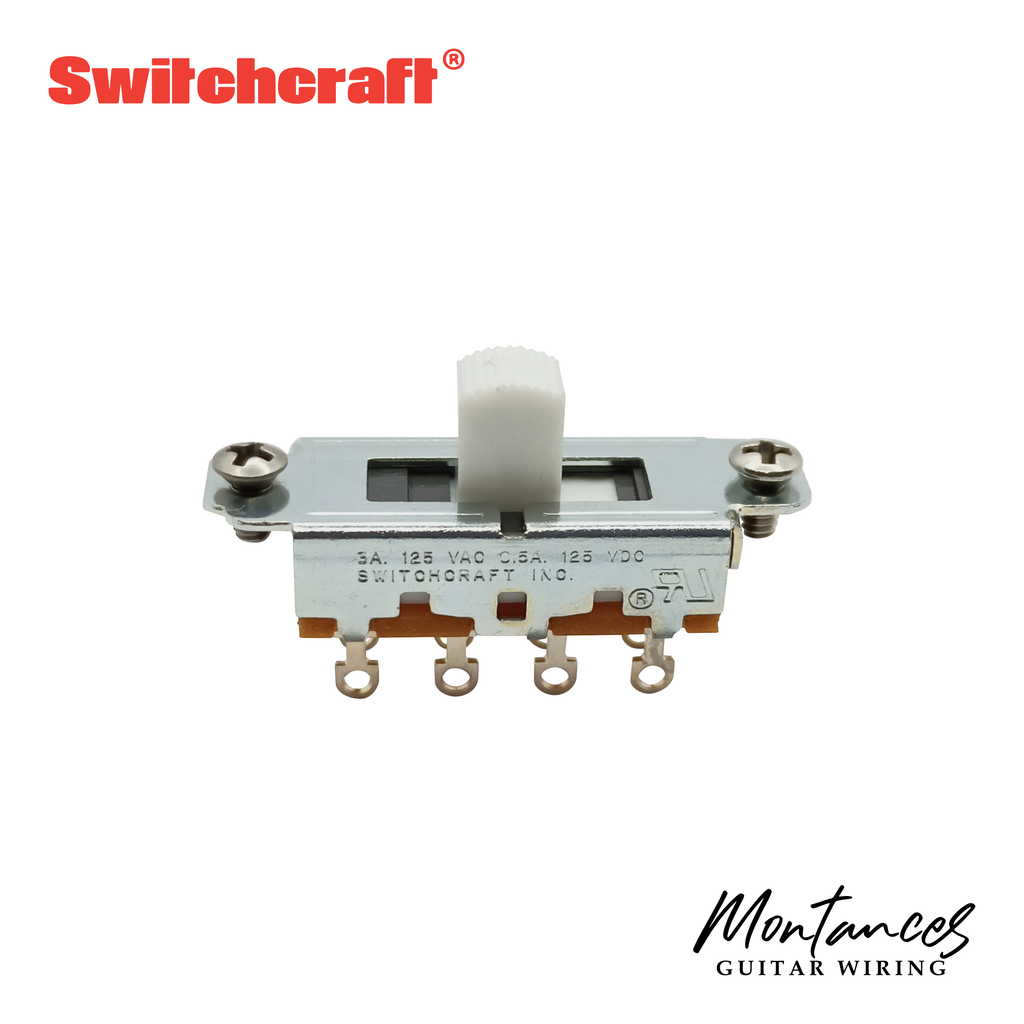

3-way DP3T ON-ON-ON switch - white

Note:
Screws and Nuts and Washers not included.

Dimensions:

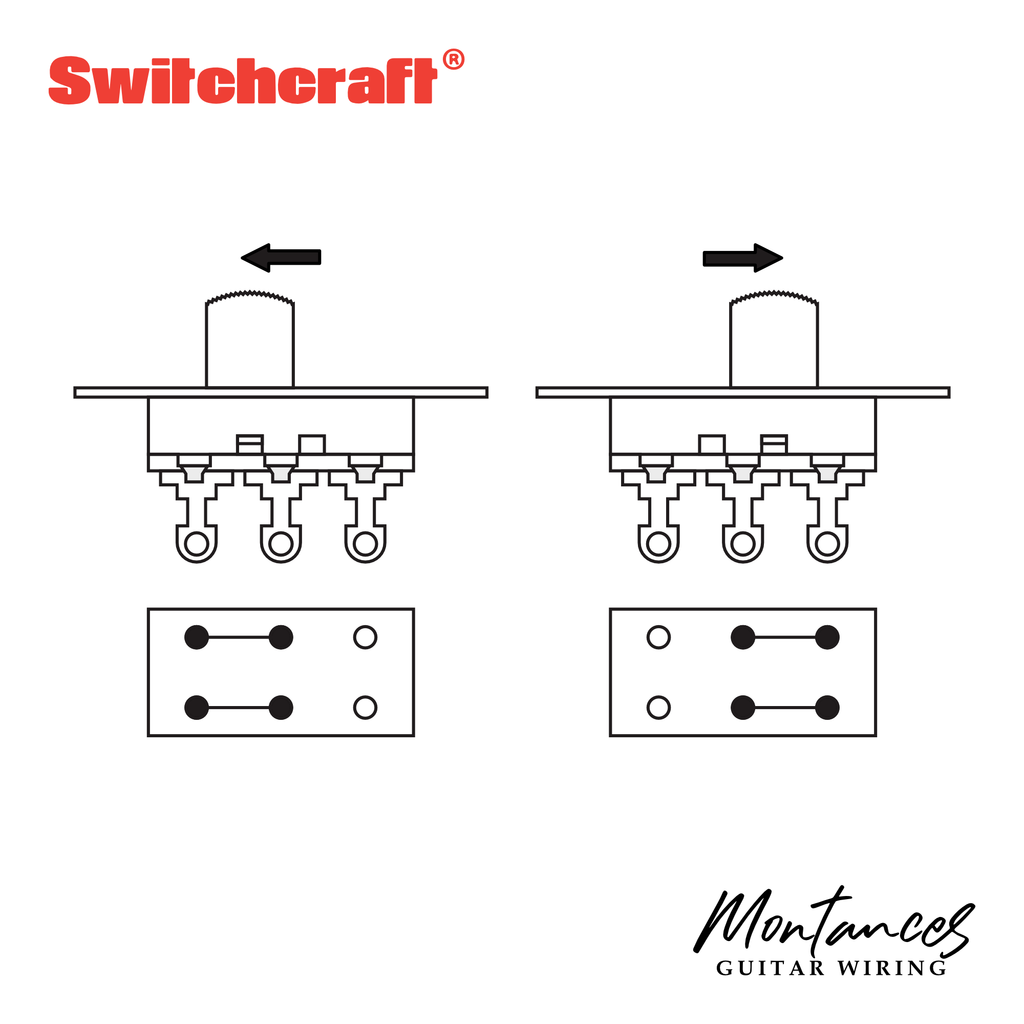

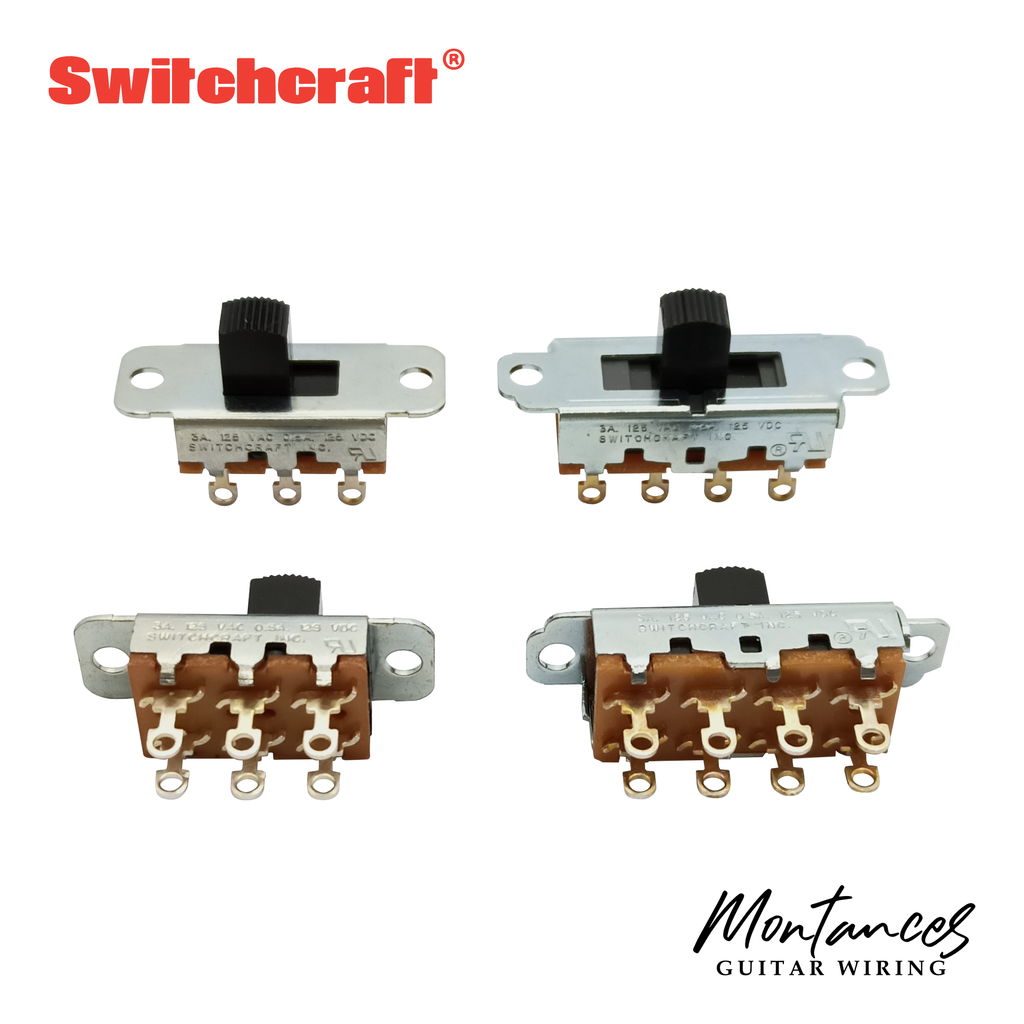

2-way DPDT ON-ON switch
Usually for Jazzmaster and Jaguar guitars. DPDT (double-pole/double-throw), on/on switch has six lugs, three on each pole.
Chassis dimensions
1/2" wide x 1-3/8" long x 5/8" tall including the lugs
(12.70mm x 34.93mm x 15.88mm)
Body cavity depth
3/4" (19.05mm)
Mounting screw spacing
1-1/8" (28.58mm)
Pickguard/control plate slot
5/16" x 9/16" (7.94mm x 14.29mm)

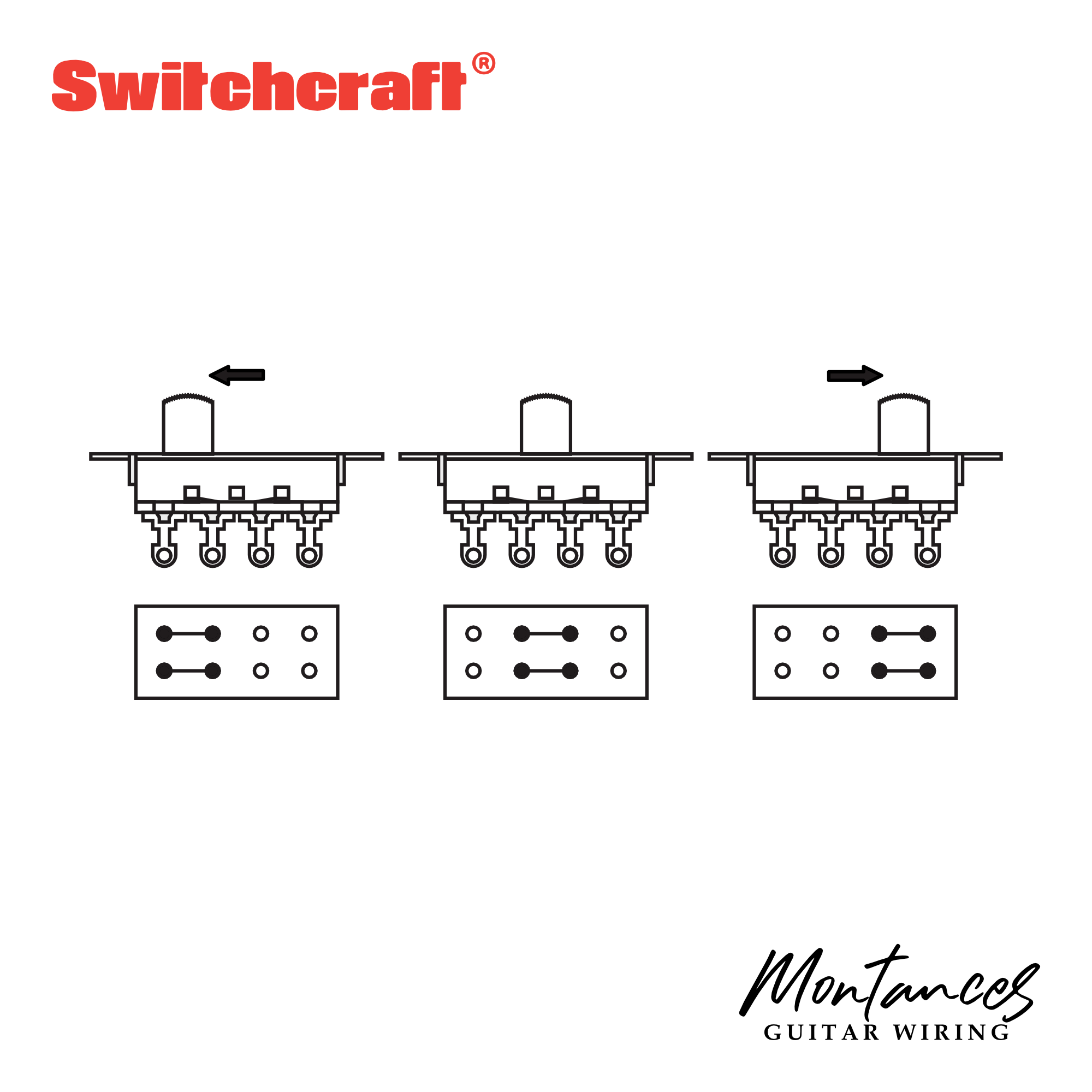

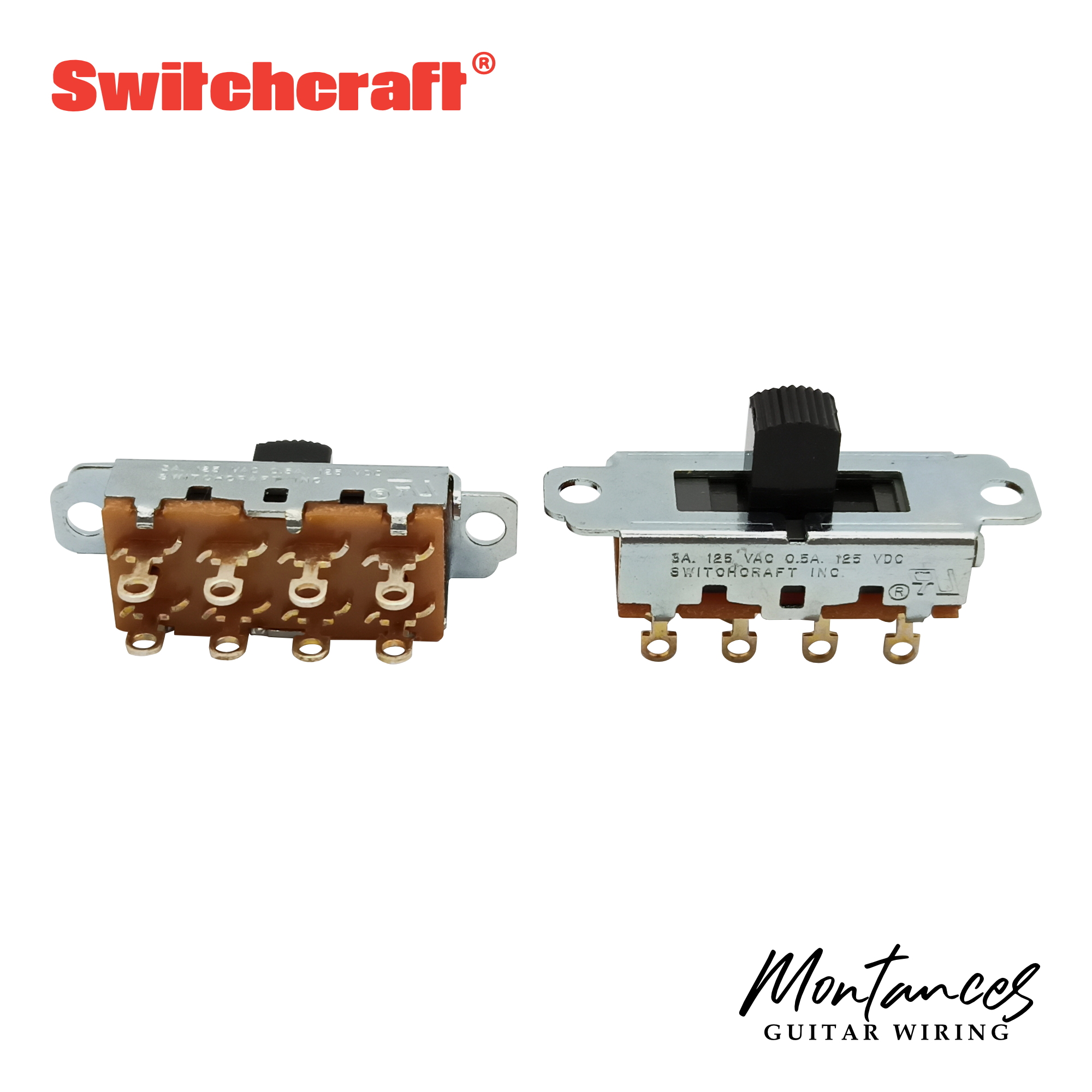

3-way DP3T ON-ON-ON switch
Usually for Mustang and Duosonic guitars. DP3T (double-pole/triple-throw), on/on/on switch has eight lugs, four on each pole.

Chassis dimensions
1/2" wide x 1-3/4" long x 11/16" tall including the lugs
(12.70mm x 44.45mm x 17.46mm)
Body cavity depth
13/16" (20.64mm)
Mounting screw spacing
1-13/32" (35.72mm)
Pickguard/control plate slot
5/16" x 13/16" (7.94mm x 20.64mm)

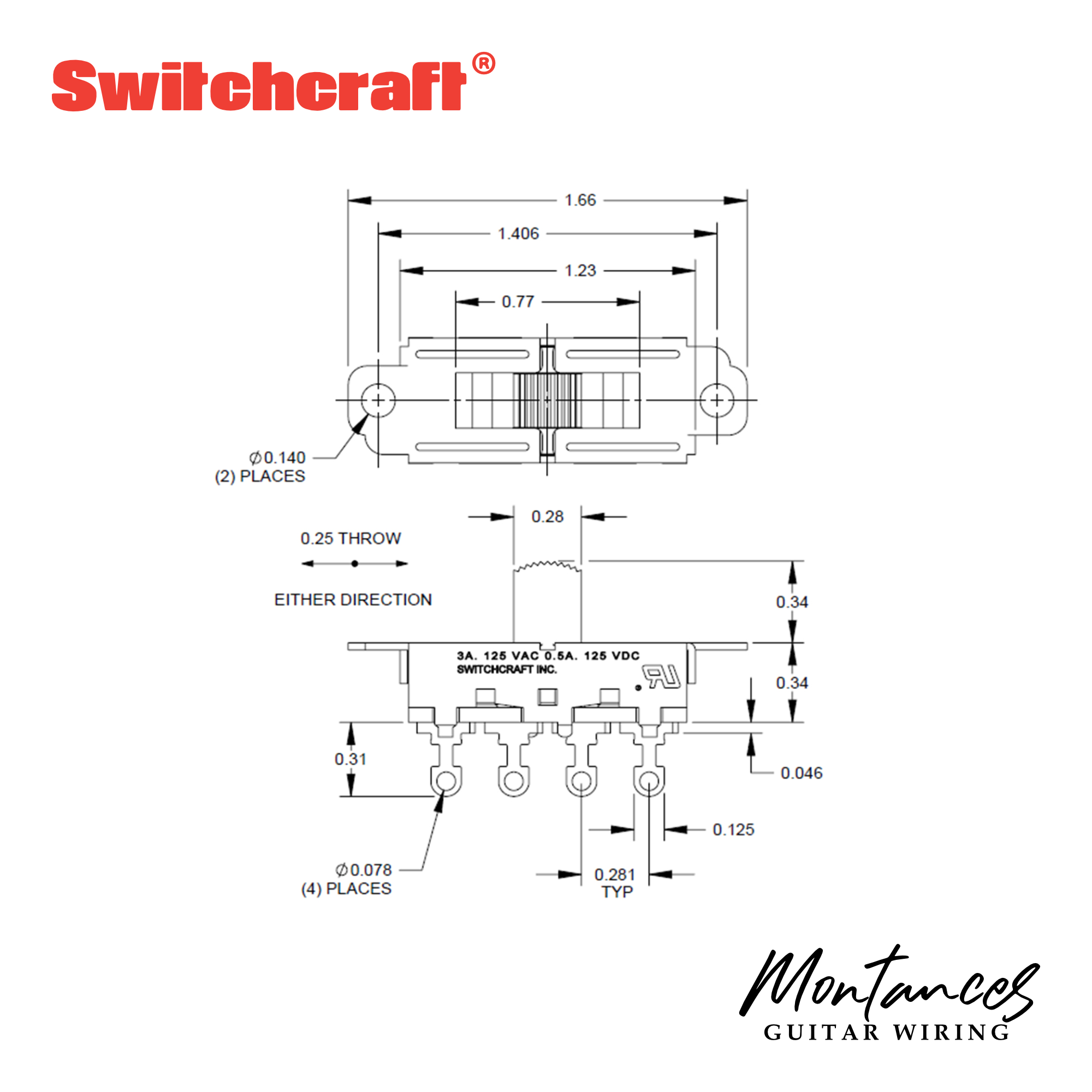

Please see the photos for the detailed dimensions.

**********
We specialize in custom guitar wiring and handwound pickups.

Please let us know if you have questions or clarification.
You can also check our website for more wiring guide info.

Feel free to send a message and we will reply asap.

Thank you!
