Les Paul Guitar Wiring Kit (Metric Size)

Les Paul Wiring Kti (Metric Size)

Do you want a high-end guitar tone at a low-end budget?

A good way to start is by upgrading your Les Paul guitar wiring and electronics.

This set is perfect for a Les Paul style guitar with an H-H pickup configuration.

Bridge: Humbucker (H)

Neck: Humbucker (H)

Upgrade Kit includes the following:

1 Volume 1 Tone (1V1T) option:

1 Epiphone 3-way pickup selector toggle switch (cream tip)

2 AlphaPotentiometers (Metric specs)*

1 Switchcraft Guitar Output Jack

1 Orange Drop Capacitor

1 Treble Bleed Circuit

2ft Gavitt Vintage PushBack Cloth Wire (white)

2ft Gavitt Vintage PushBack Cloth Wire (black)

2 Volume 2 Tone (2V2T) option:

1 Epiphone 3-way pickup selector toggle switch (cream tip)

4 Alpha Potentiometers (US specs)*

1 Switchcraft Guitar Output Jack

2 Orange Drop Capacitor

2 Treble Bleed Circuits (optional)

2ft Gavitt Vintage PushBack Cloth Wire (white)

2ft Gavitt Vintage PushBack Cloth Wire (black)

Parts included are of the best quality and typically used in high-end guitar builds. Most are USA brands.

Note:

The long shielded cable used in connecting the switch to the pots is NOT included in this kit.

You can purchase this separately, just search for Gavitt shielded 4-wire in our store.

Options:

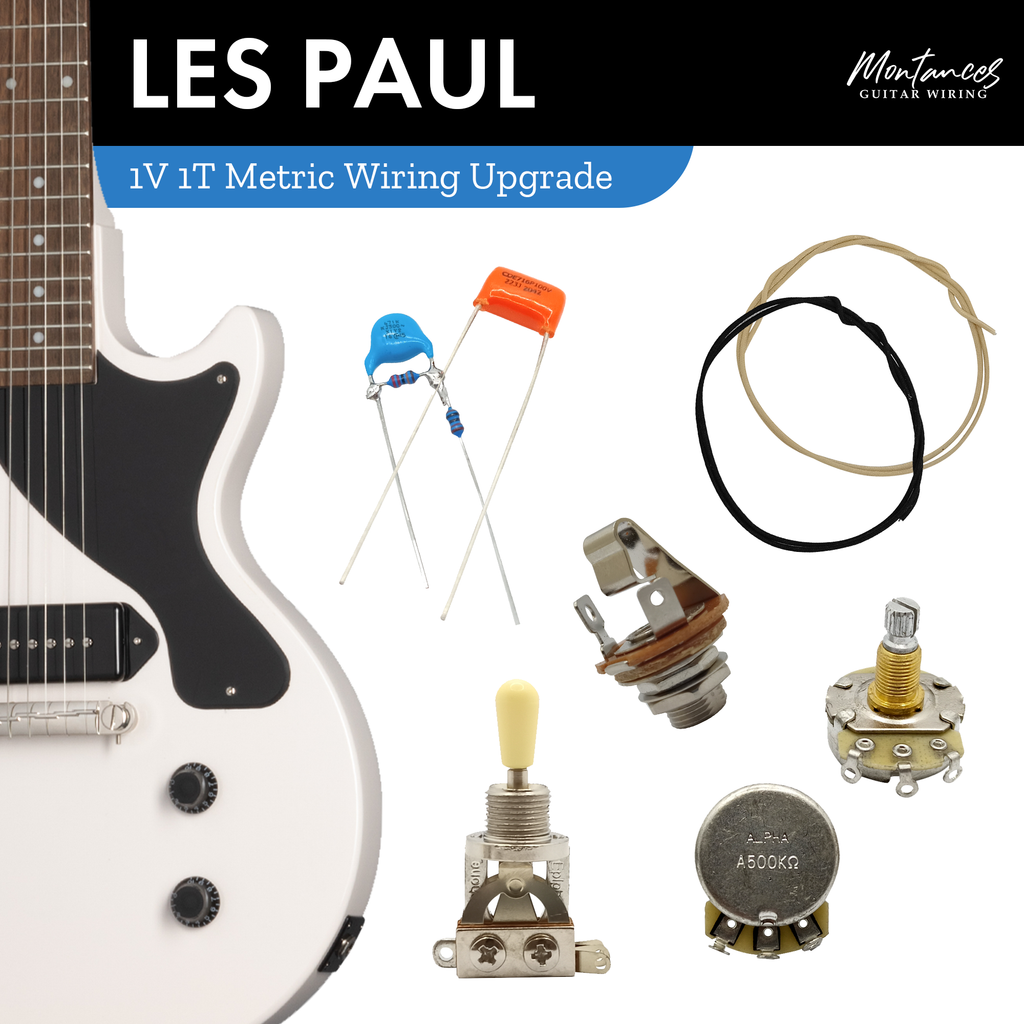

- 1V1T, full-size potentiometer

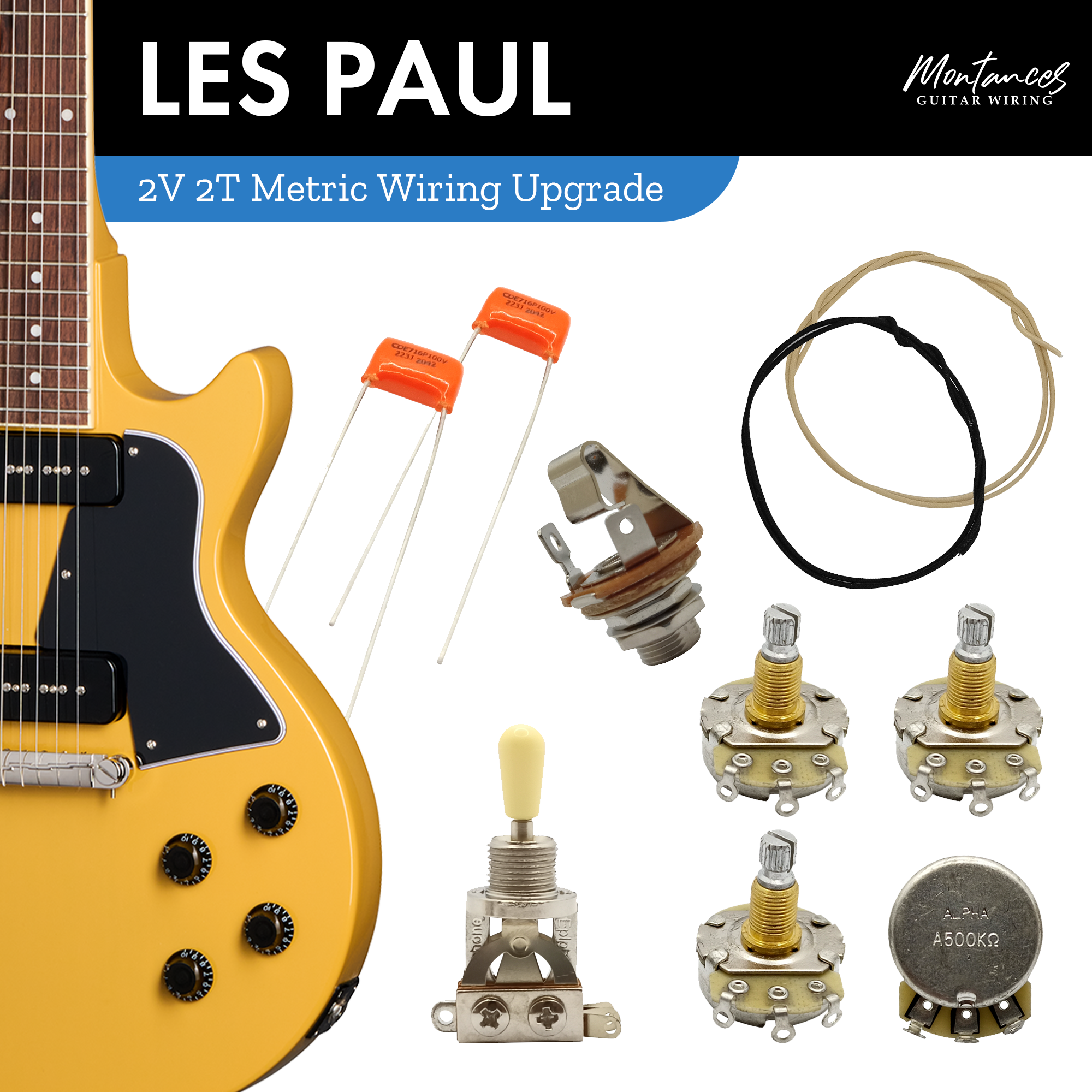

- 2V2T, full-size potentiometer

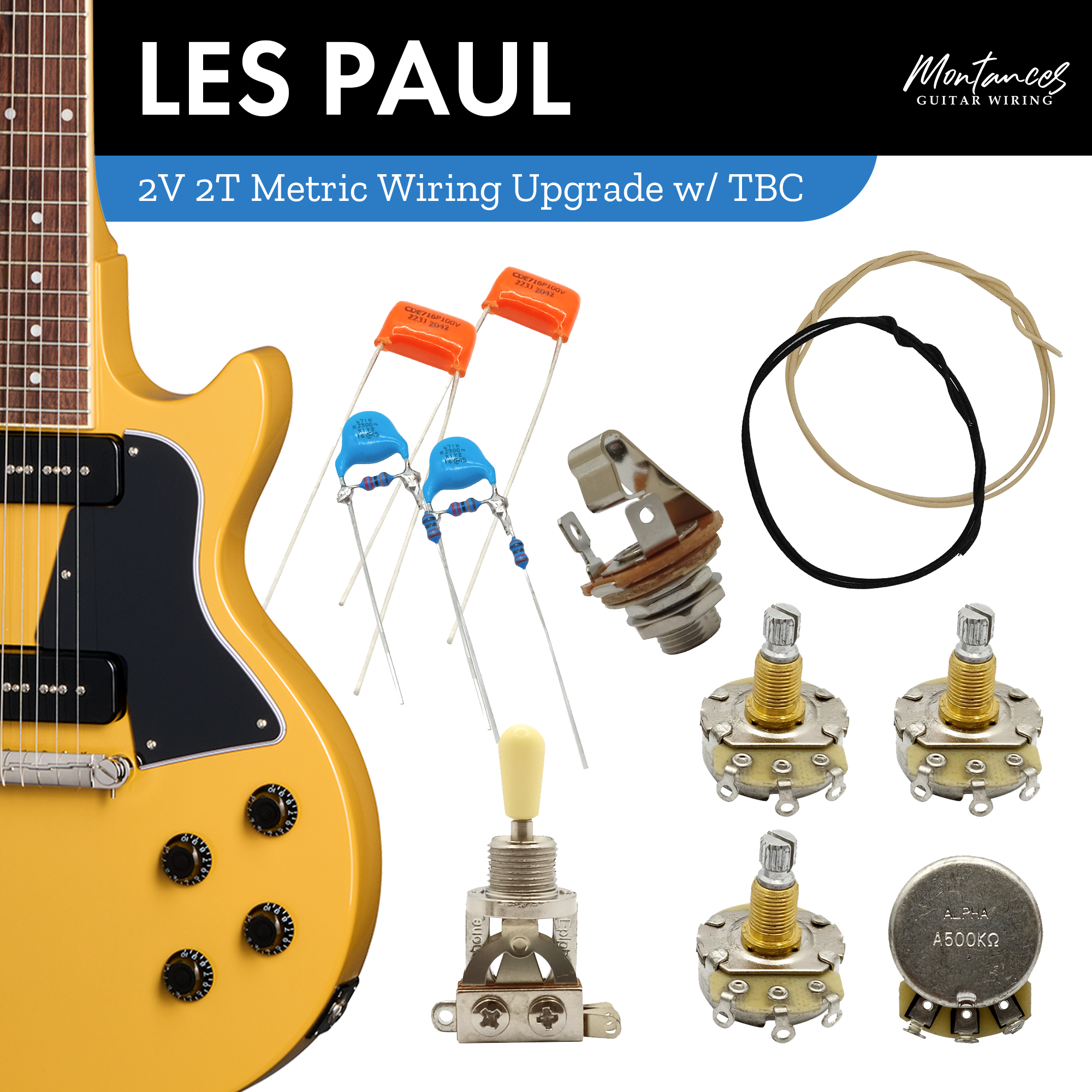

- 2V2T with TBC, full-size potentiometer

Notes:

*Potentiometer thread length and thread height is ⅜”. Some Les Pauls made in the USA require a longer thread height of ¾”. Ask us for more details.

Switch tip color can be requested (cream or black). This is subject to availability.

We use standard values for capacitors and potentiometers although specs can be replaced upon request.

Please send a message if you want to change something. Otherwise, we will ship standard options.

Each of the components was carefully tested in our laboratory to ensure the best-balanced set that will improve the tone of your guitar.

The kit includes an optional Treble Bleed Circuit which helps in maintaining a uniform tone at different volume levels.

Your Les Paul deserves a treat!

Please let us know if you have questions or clarification.

Feel free to send a message and we will reply asap.

We also do custom wirings. Just let us know your requirements.

Tips:

Standard Wiring Diagrams are in the product photo.
