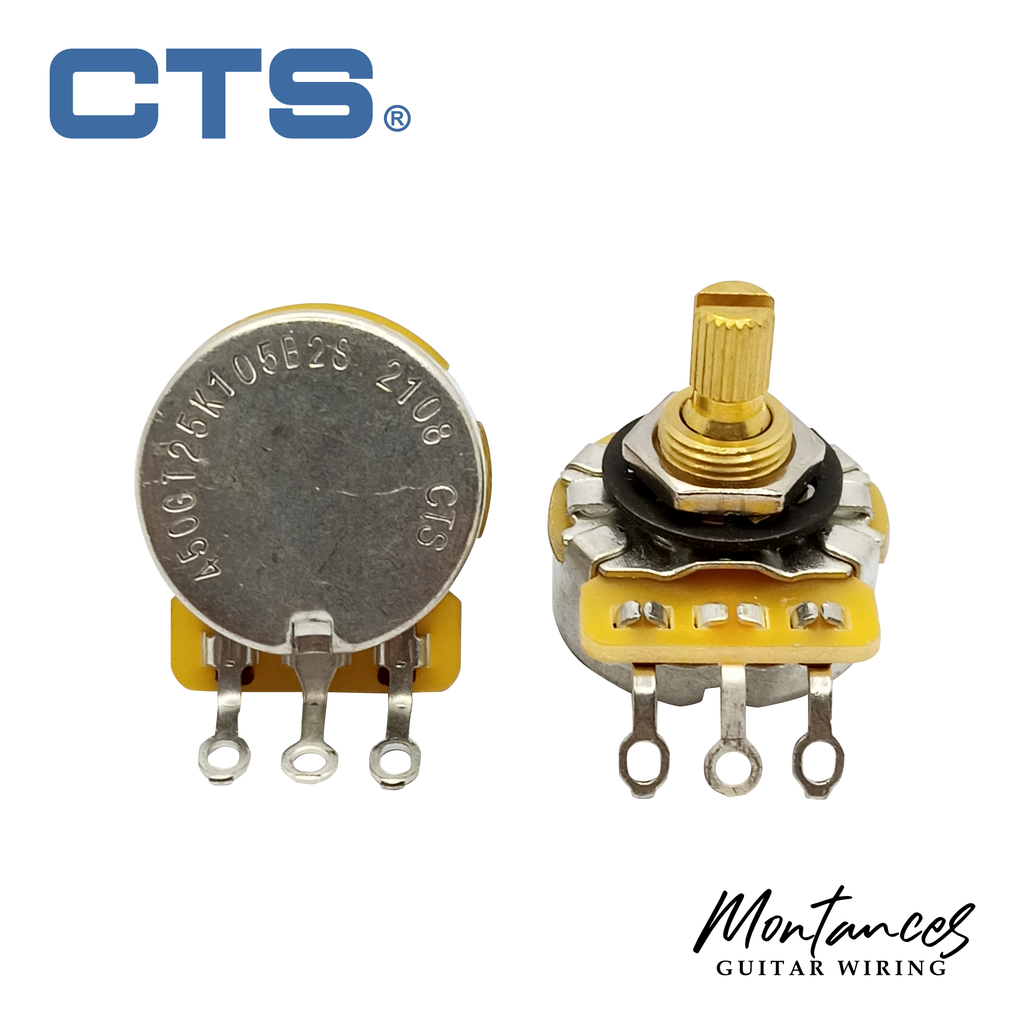

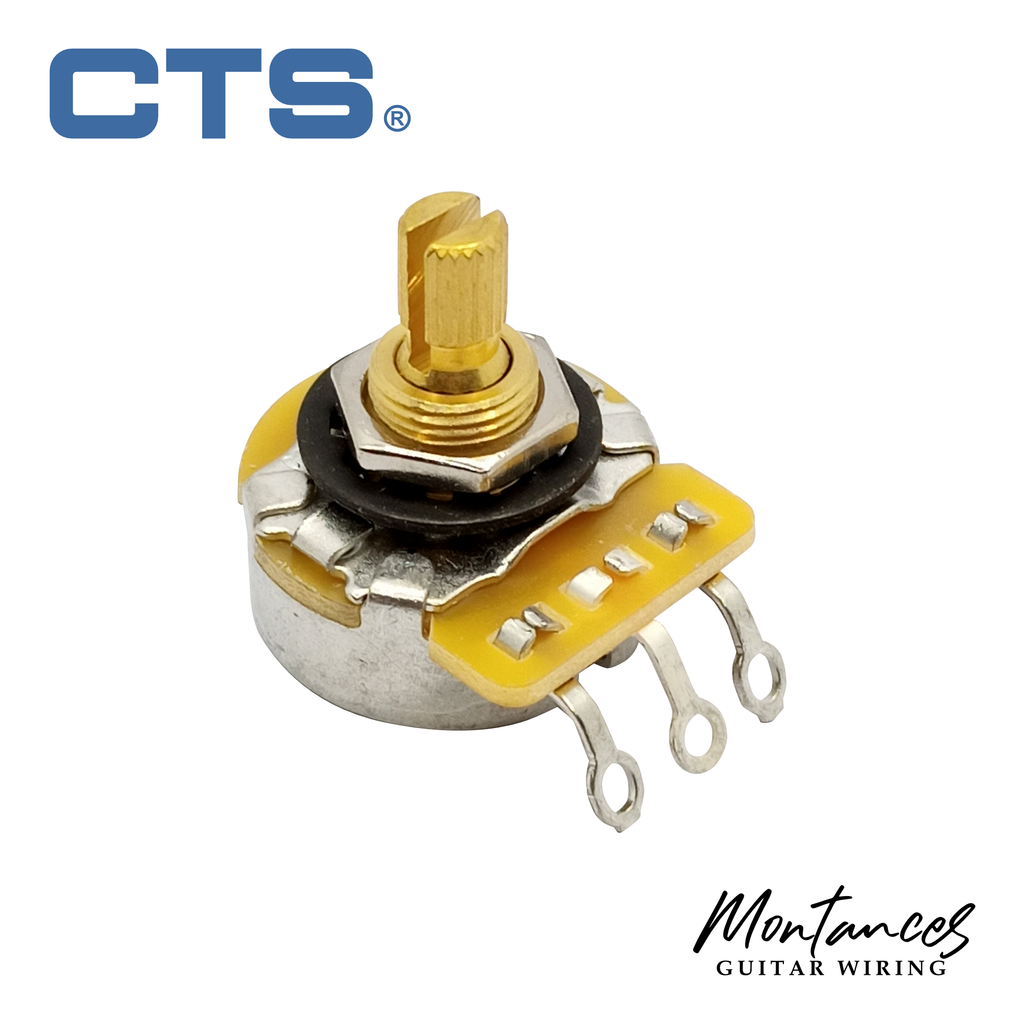

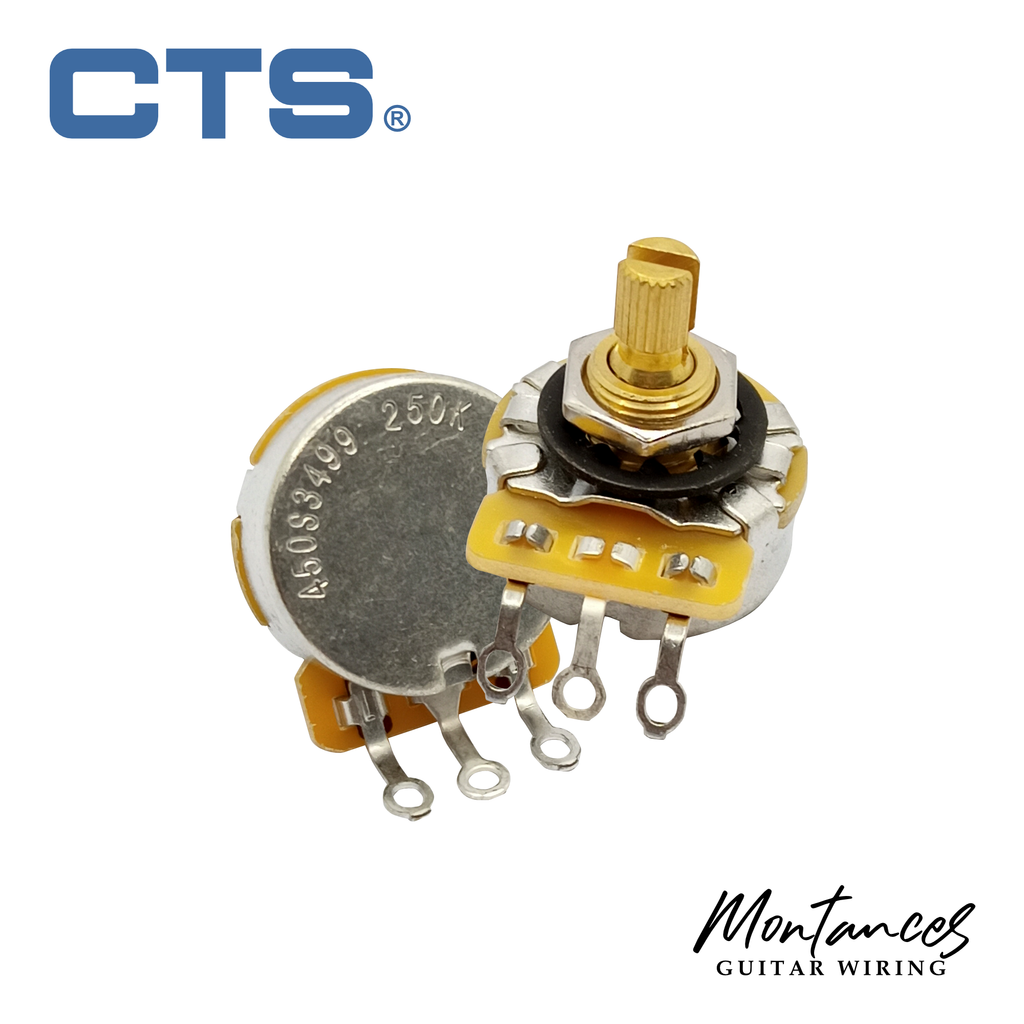

CTS® Premium US ¼” Short Length Full-Size Potentiometer (Split Shaft)
(Please Read the Details)
CTS short length pots (¼” or 6.35mm) are perfect for pickguard and control plate mounting like Strat, Tele, Jazz bass and Precision bass.
CTS is a top of the line guitar potentiometer that has been used in most American builds.
This series of CTS pots are the same high-quality pots that have become the industry standard for top guitar manufacturers. Robust construction featuring brass shaft and bushing.
These US specs potentiometers are perfect replacement for US made guitars.
If your guitar is Asian made, you might need to enlarge the hole to fit this pot.
QUICK GUIDE
Taper:
A is Audio (for Tone or Volume)
B is Linear (for Volume)
Value:
250k for Single-Coils
500k for humbuckers
Thread Diameter:
US (⅜” or 9.5mm) - made in US
Metric (8mm) - made in Asia
Thread Length:
Short (¼” or 6.35mm) - perfect for pickguard and control plate mounting like Strat, Tele, Jazz bass and Precision bass.
Standard (⅜” or 9.5mm) - this is a safe choice and will fit most guitars. Just add hex Nuts and Washers and washers as necessary. This length is required for the wood top or direct to body mounting.
Long (¾” or 19mm) - best used on guitars with extra thick bodies like Gibson Les Pual USA.

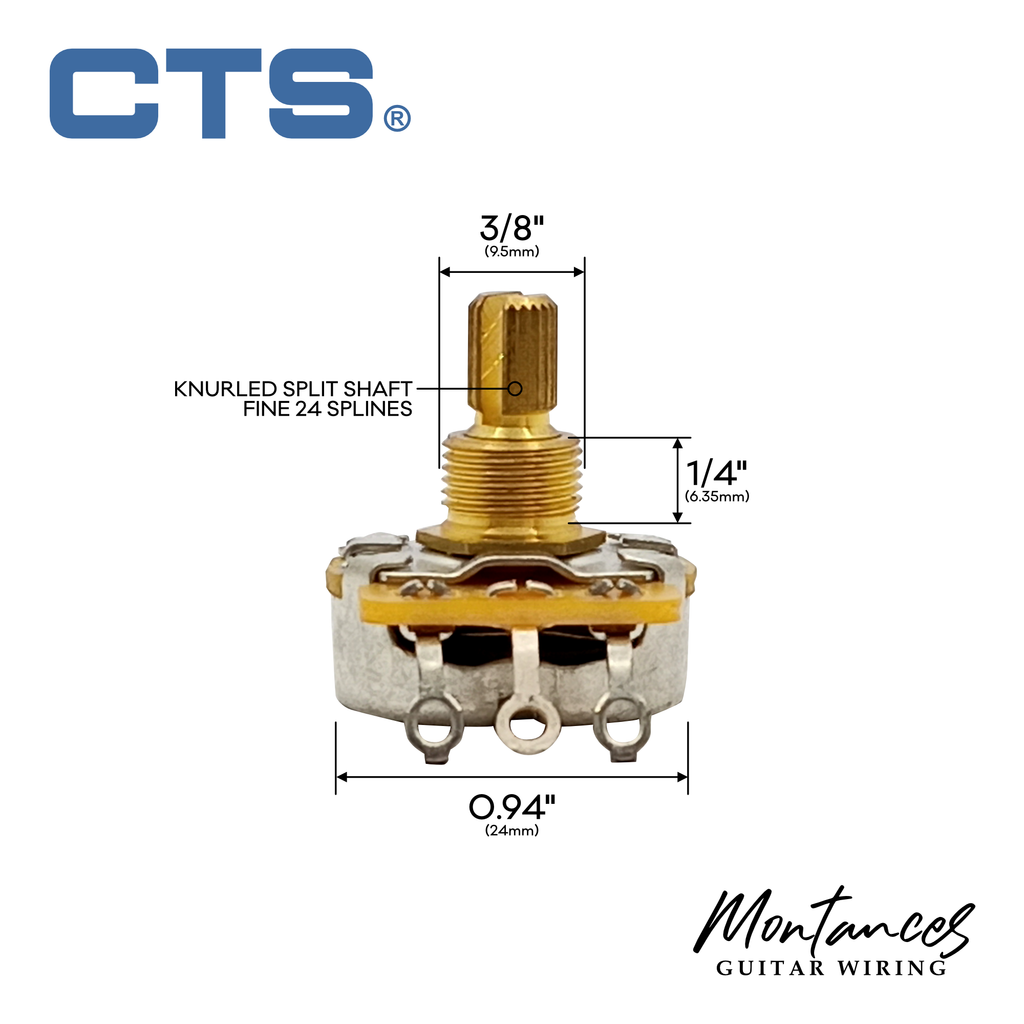

SPECS
Value: 250k, 500k, 1Meg
Taper: Audio/Log (A), Linear (B)
Thread Length: Short (¼” or 6.35mm)
Thread Diameter*: US (⅜” or 9.5mm)
Shaft: split / knurled 24 splines
Body: Full size (0.9” or 24mm)
Torque: Standard friction rotation
Options available:
A250k Audio
B250k Linear
A500k Audio
A1MEG 1000k Audio
Includes:
1 potentiometer
1 set of hex nut and washer
Note:
*If your guitar is Asian made, you might need to enlarge the hole to fit this pot.
For a complete guide on how to choose the correct potentiometer for your guitar, read the wiring guide on our website or watch our YT tutorials.
**********
We specialize in custom guitar wiring and handwound pickups.
Please let us know if you have questions or clarification.
You can also check our website for more wiring guide info.
Feel free to send a message and we will reply asap.
Thank you!
CTS® Premium US ¼” Short Length Full-Size Potentiometer
Options
Value & Taper
Will it fit my guitar?
Fit values for this pot are stored in four product fields (fit, thread, mounting, shaft). If a product has no values, this checker hides itself.
Knobs that fit this pot
Matched to split, 24 splines (fine).



Technical specifications
| Value & Taper | A1MEG Audio Taper, A250k Audio Taper, A500k Audio Taper, B250k Linear Taper |
| Fits | USA / Imperial (Fender, Gibson) |
| Thread | 3/8" (9.5mm) bushing · 1/4" (6.35mm) short length |
| Mounting | Pickguard or control plate |
| Shaft | Split, 24 splines (Fine) |
| Brand | CTS |
US vs Asian pots
US pots (CTS and similar) usually have a 3/8″ (9.5mm) bushing and fine 24-spline shafts.
Asian or metric pots (Alpha, many Bourns) usually have an 8mm bushing and coarse 18-spline shafts.
A metric pot drops loosely into a US hole. A US pot will not fit a metric hole without enlarging it.
Knobs must match the spline count. Forcing the wrong one can break the shaft.
