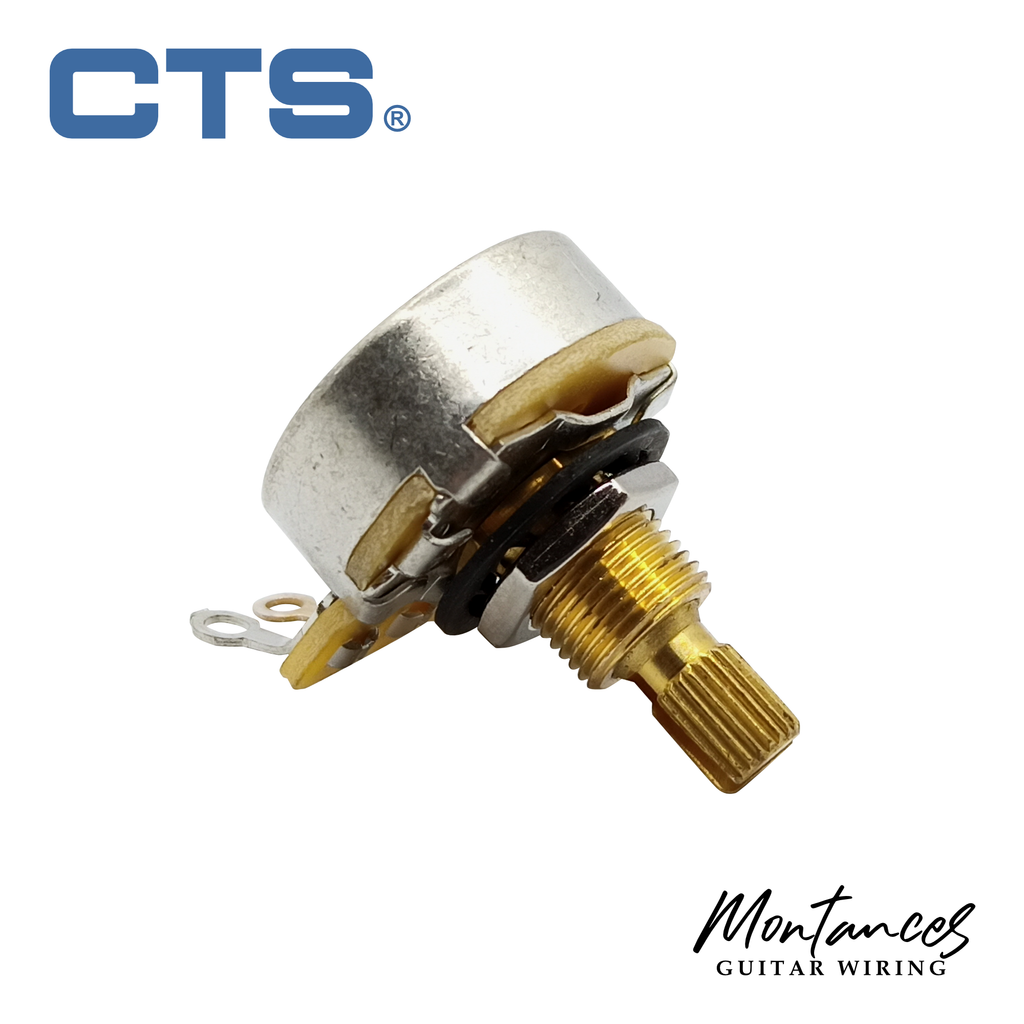

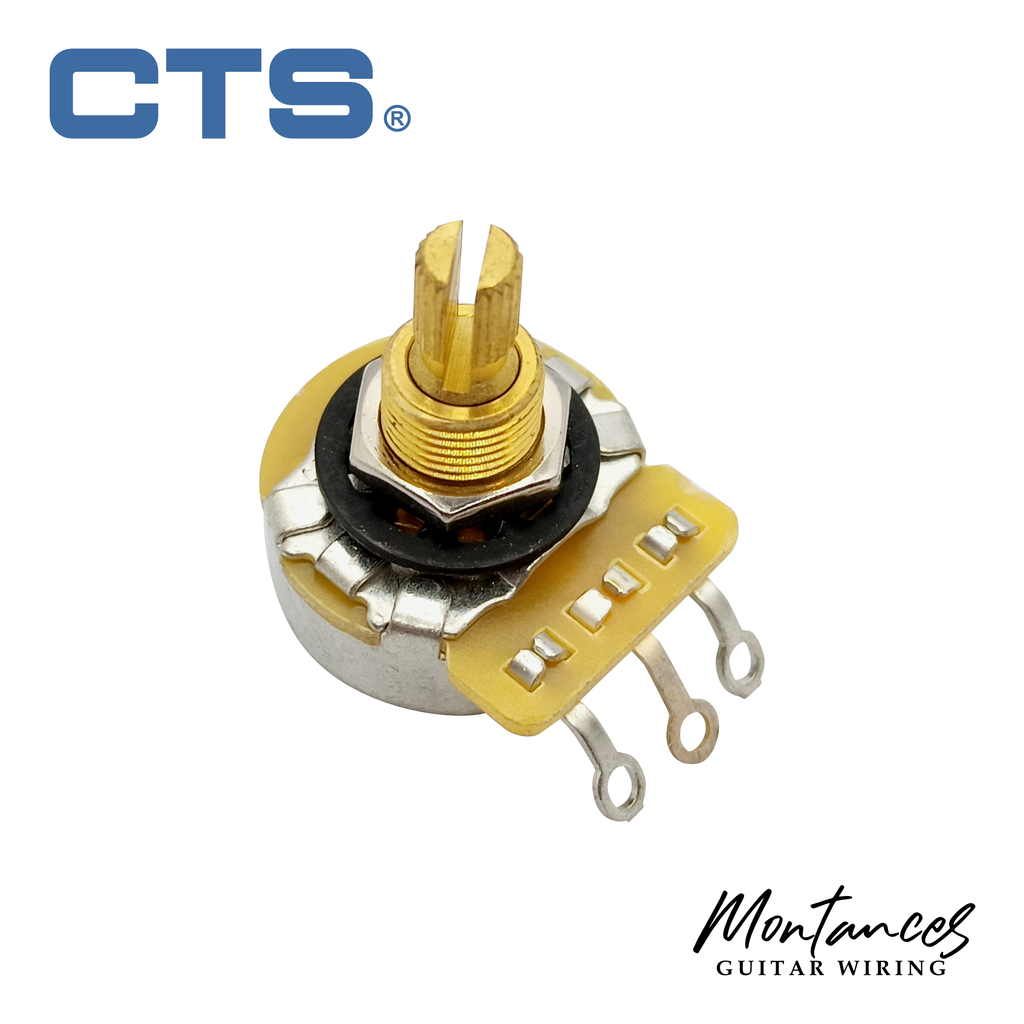

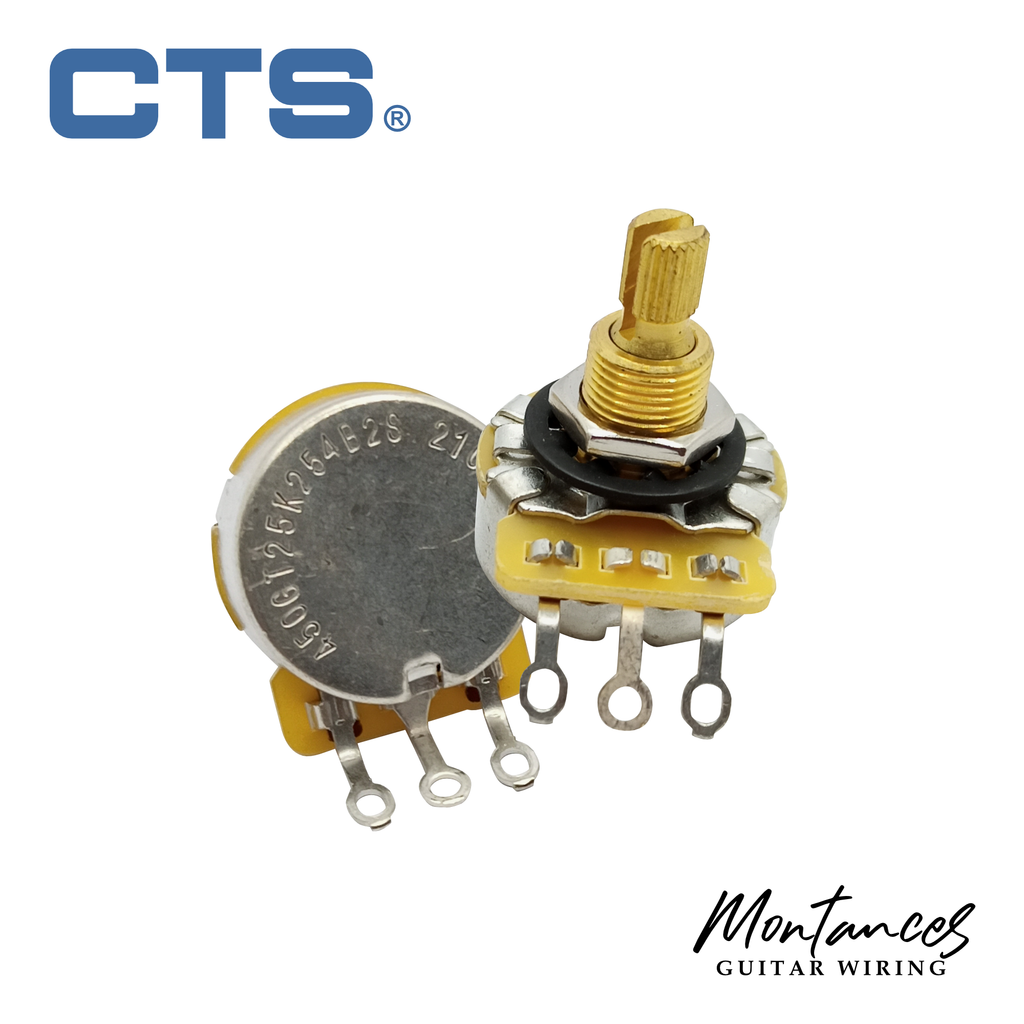

CTS® Premium US ⅜” Standard Length Full-Size Potentiometer

CTS® Premium US ⅜” Standard Length Full-Size Potentiometer

₱670.00 ₱838.00
142 sold

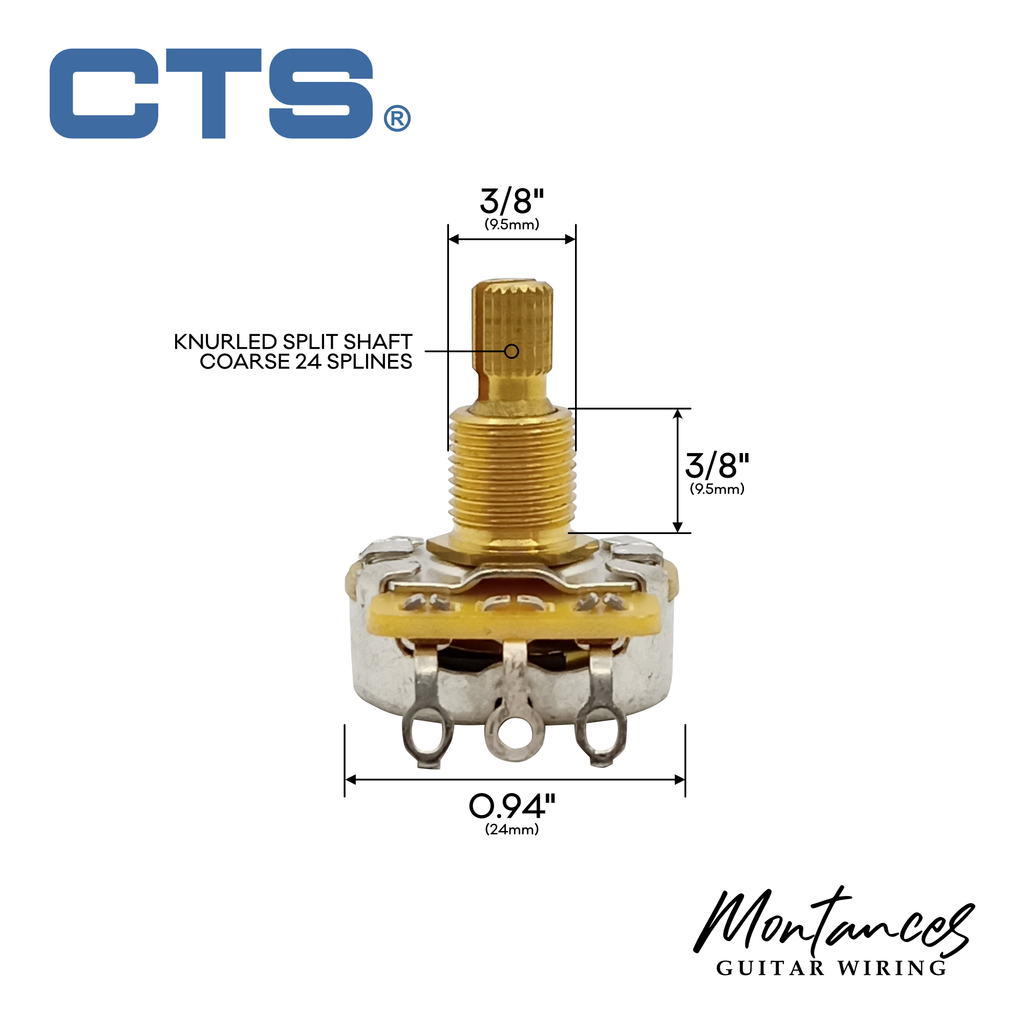

3/8" (9.5mm) bushing · 3/8" (9.5mm) standard length Split, 24 splines (Fine) Wood top, body, or pickguard
Fits USA / Imperial (Fender, Gibson)
Shaft Split, 24 splines (Fine)
Thread 3/8" (9.5mm) bushing · 3/8" (9.5mm) standard length
Mounting Wood top, body, or pickguard

Options

Value & Taper

Will it fit my guitar?

    Fit values for this pot are stored in four product fields (fit, thread, mounting, shaft). If a product has no values, this checker hides itself.

    Typical US pots use a 3/8″ (9.5mm) bushing and 24 splines. Typical Asian pots use an 8mm bushing and 18 splines.

    Technical specifications

    Value & Taper A1MEG Audio Taper, A250k Audio Taper, A500k Audio Taper, B250k Linear Taper, B500k Linear Taper
    Fits USA / Imperial (Fender, Gibson)
    Thread 3/8" (9.5mm) bushing · 3/8" (9.5mm) standard length
    Mounting Wood top, body, or pickguard
    Shaft Split, 24 splines (Fine)
    Brand CTS

    US vs Asian pots

    US pots (CTS and similar) usually have a 3/8″ (9.5mm) bushing and fine 24-spline shafts.

    Asian or metric pots (Alpha, many Bourns) usually have an 8mm bushing and coarse 18-spline shafts.

    A metric pot drops loosely into a US hole. A US pot will not fit a metric hole without enlarging it.

    Knobs must match the spline count. Forcing the wrong one can break the shaft.

    Will this CTS® Premium US ⅜” Standard Length Full-Size Potentiometer fit my guitar without drilling?
    This pot uses a 3/8" (9.5mm) bushing · 3/8" (9.5mm) standard length designed for USA / Imperial (Fender, Gibson). It drops straight into most USA-made guitars (Fender USA, Gibson, etc.) with 3/8" (9.5mm) mounting holes. If you have an Asian-made or metric import guitar (Squier, Epiphone, Ibanez, Yamaha, Cort) with smaller 8mm holes, you will need to enlarge the hole to 9.5mm (3/8") for this pot to fit.
    Which knobs fit this potentiometer (Split, 24 splines (Fine))?
    This pot has a Split, 24 splines (Fine) shaft and requires 24-spline (US fine-knurl) push-on knobs (or universal set-screw knobs). Standard 18-spline metric knobs will not seat on a 24-spline shaft—forcing the wrong spline count can damage the shaft.
    Is the thread length right for a pickguard, control plate, or wood top?
    This model has a 3/8" (9.5mm) bushing · 3/8" (9.5mm) standard length suited for wood top, body, or pickguard (standard rear-routed wood tops up to ~6mm thick, pickguards, and control plates). For thick carved tops (>12mm), choose a 3/4" (19mm) long-thread pot instead.
    Which option should I choose (A1MEG Audio Taper, A250k Audio Taper, A500k Audio Taper, B250k Linear Taper, B500k Linear Taper)?
    Available options for this pot: A1MEG Audio Taper, A250k Audio Taper, A500k Audio Taper, B250k Linear Taper, B500k Linear Taper.Choose 250K for single-coil pickups (Strat, Tele, Jazz/P-Bass) to smooth out bright highs, or 500K for humbuckers and P-90s to preserve clarity and top-end chime. Audio Taper (A / Log) matches how the human ear hears volume changes (ideal for Volume and most Tone controls), while Linear Taper (B) sweeps resistance at a uniform rate.

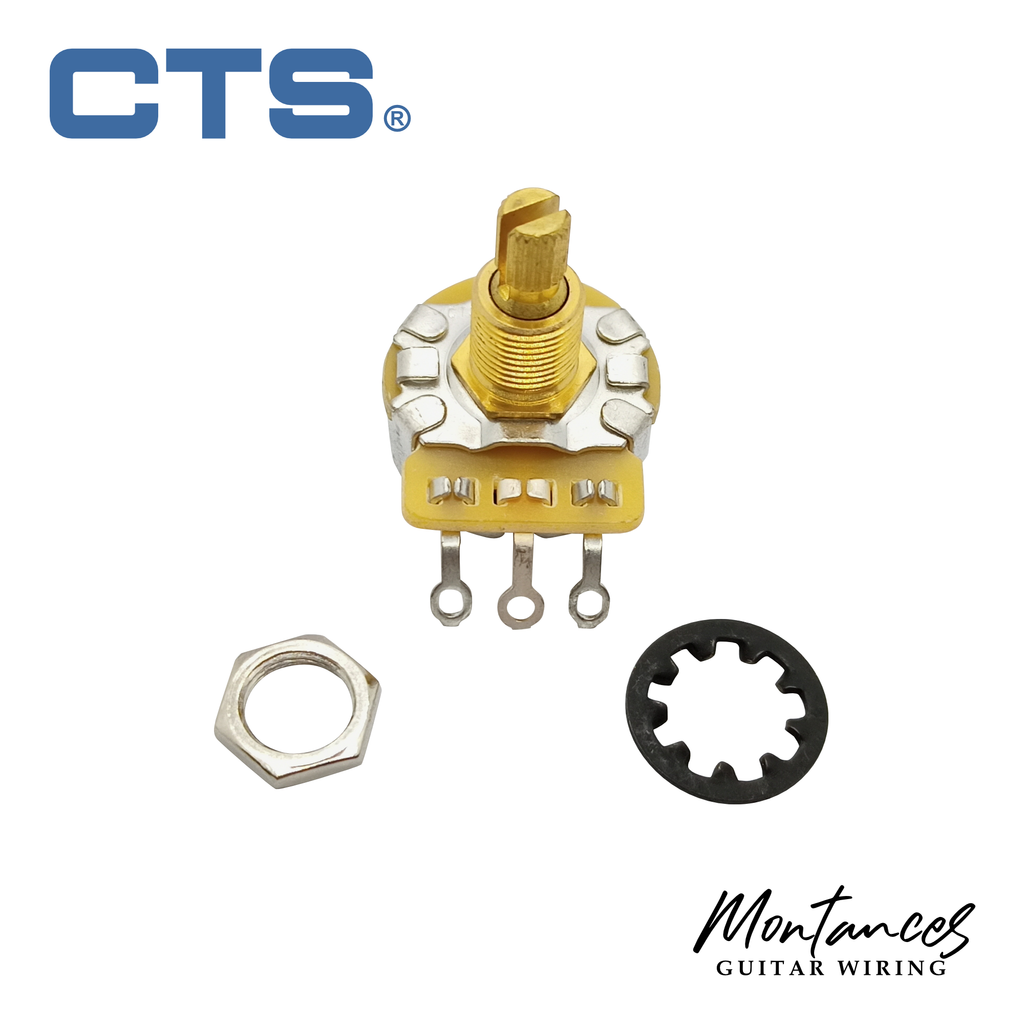

    Does this CTS pot include mounting hardware?
    Yes—each potentiometer includes its matching mounting nut and washer(s). When soldering ground wires to the back of the casing, use a 40W–60W iron with rosin-core solder and keep heat contact brief (2–3 seconds) to protect the internal conductive track.
