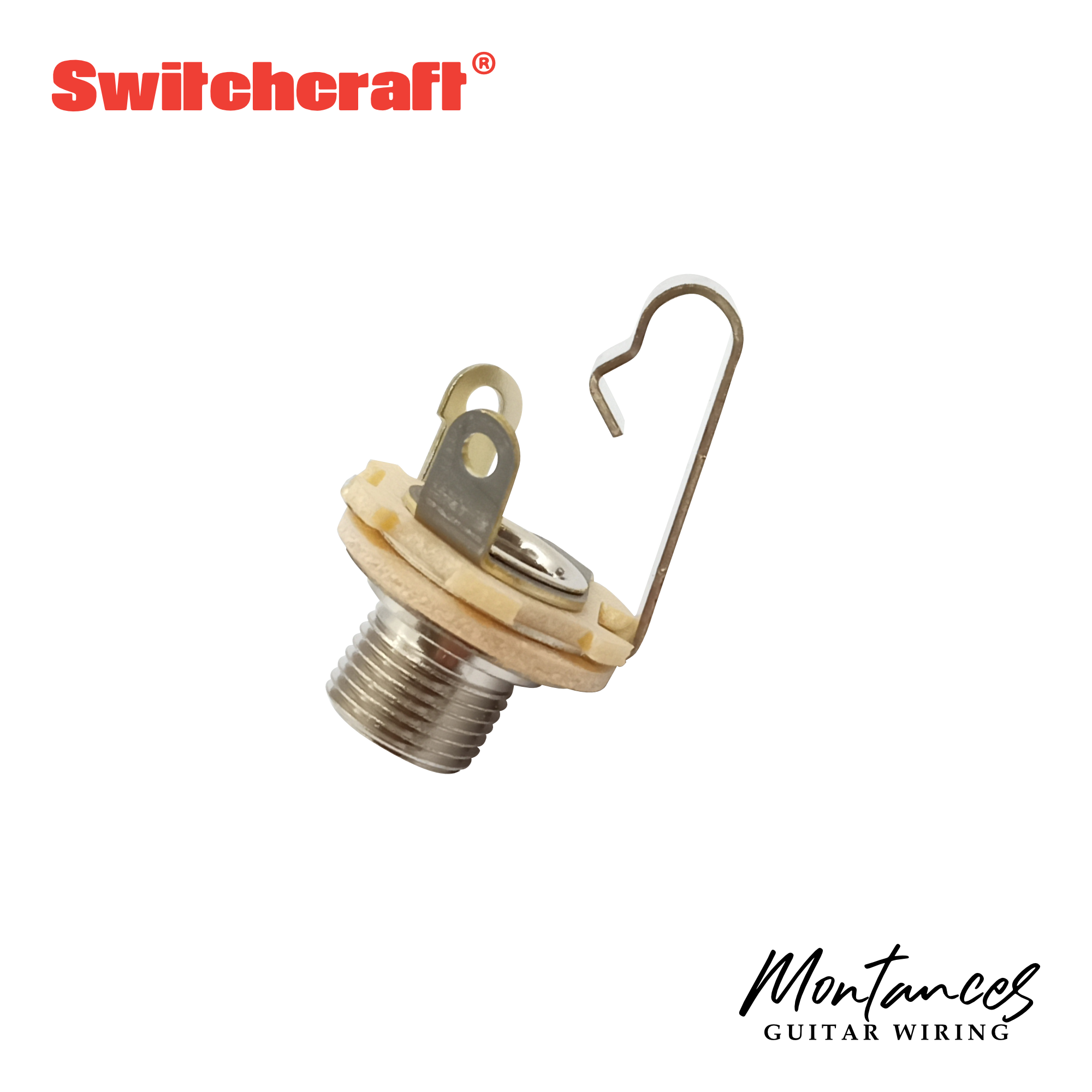

Switchcraft Guitar & Bass Output Jack – Mono or Stereo | Short or Long Thread | USA-Made | 1/4" (6.35mm) | For Strat, Tele, Jazz Bass & More

Upgrade your guitar or bass with a genuine Switchcraft output jack—known worldwide for reliability, clean signal, and solid mechanical fit. Made in the USA and used by top brands and luthiers, these jacks are ideal for electronics upgrades, repairs, or custom builds.

KEY FEATURES & BENEFITS

• Genuine Switchcraft – Made in the USA
  Premium-quality jacks trusted by Fender, Gibson, and boutique guitar makers.

• Mono or Stereo Wiring Options

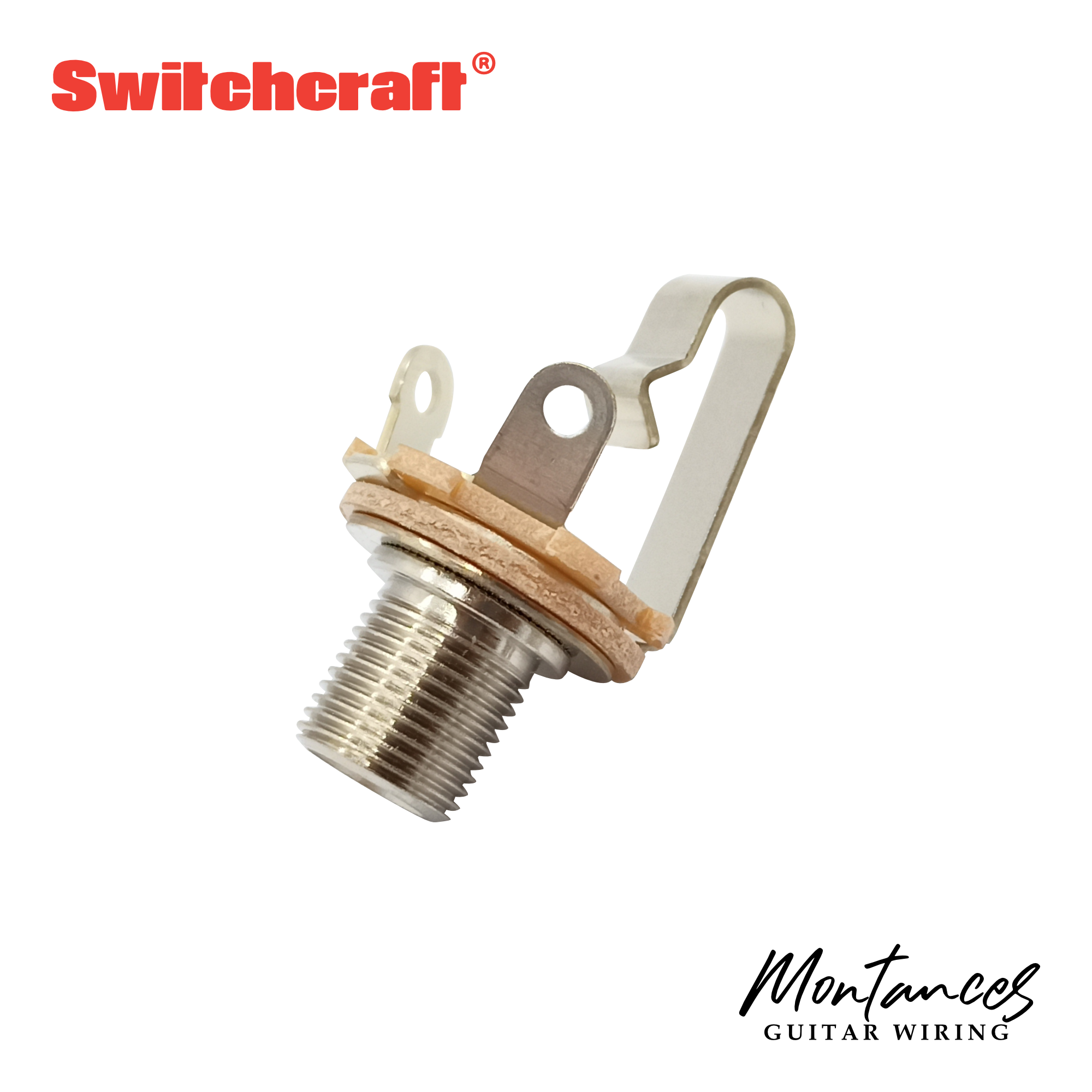

• Mono – for passive pickups (no battery required)

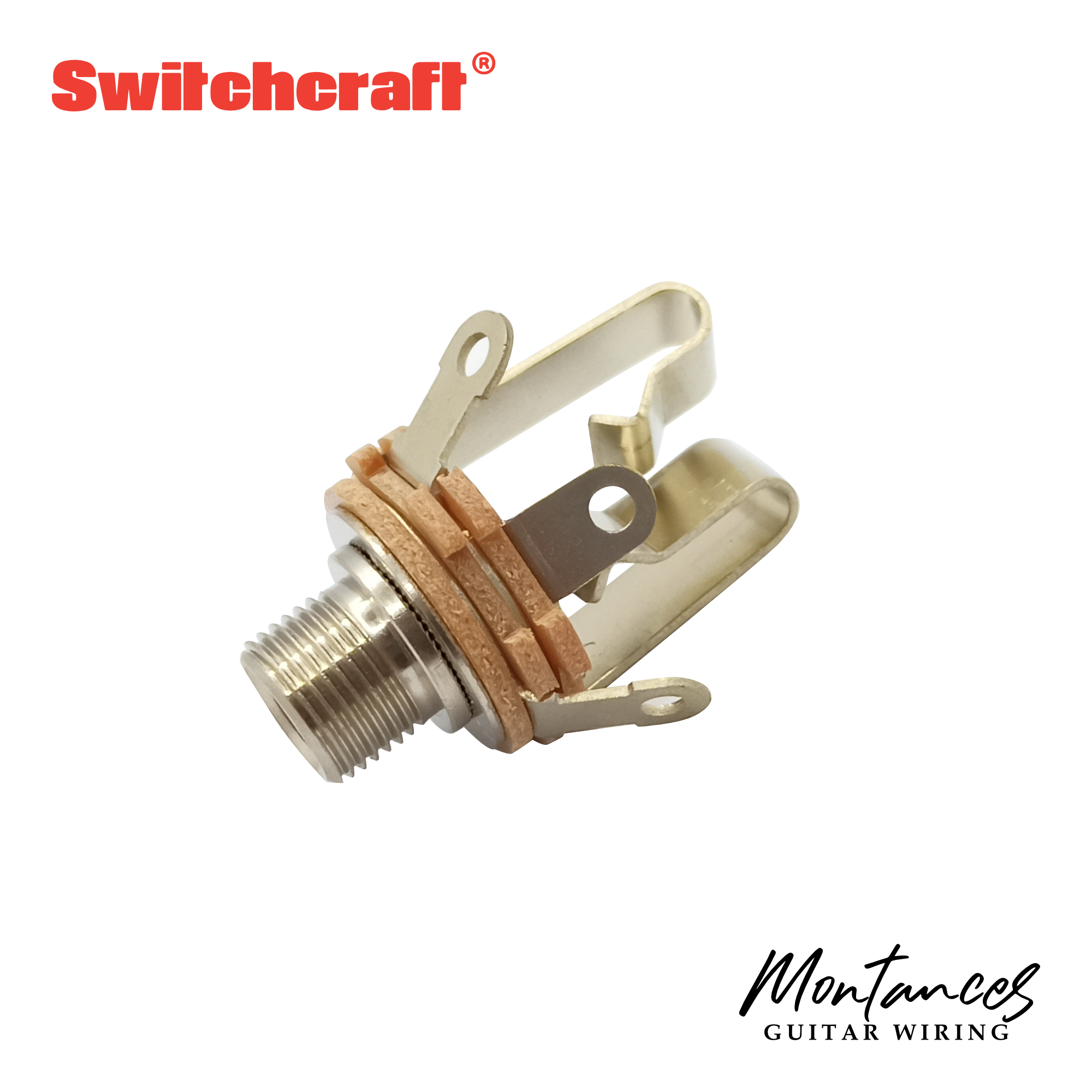

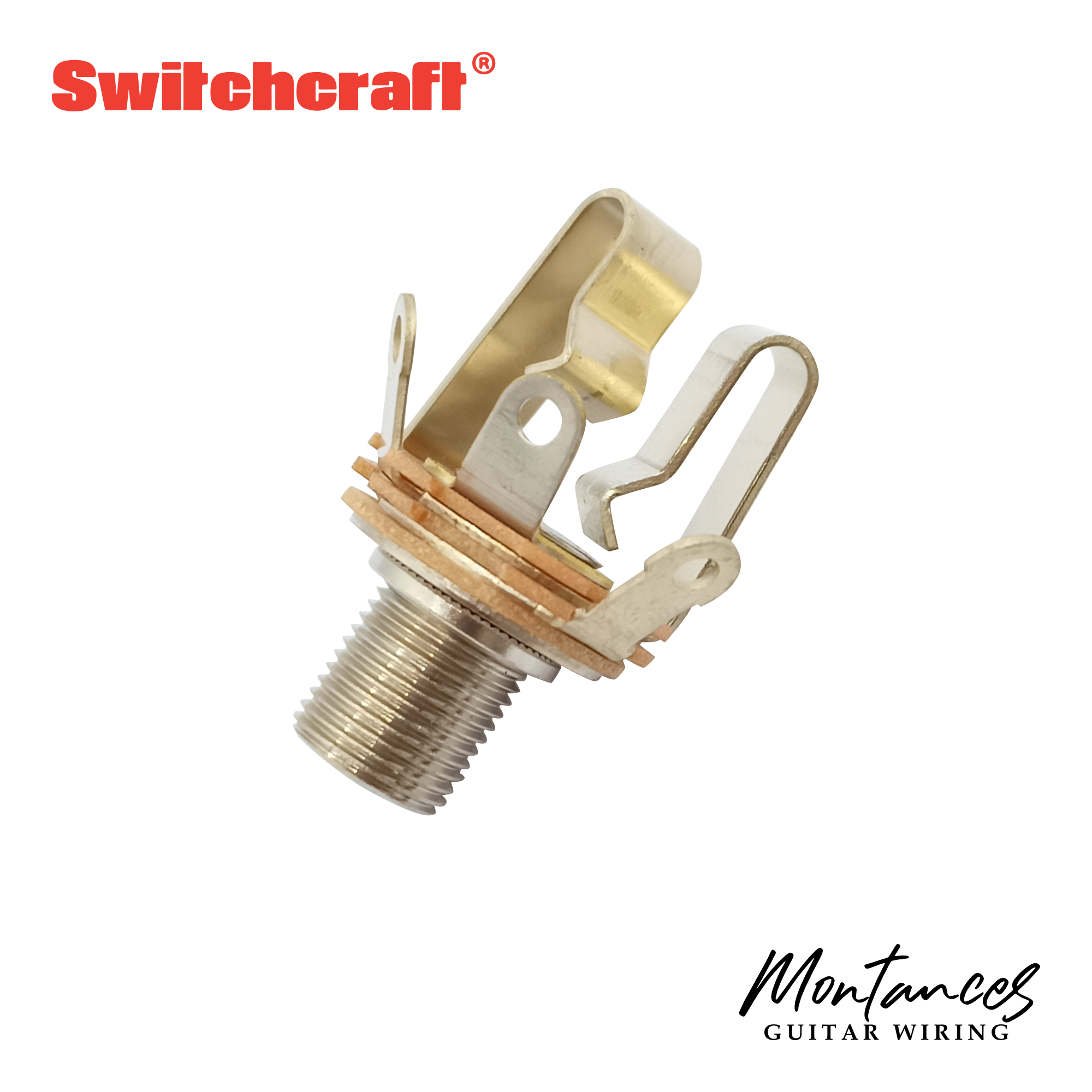

• Stereo – for active electronics, preamp switching, or pedal routing

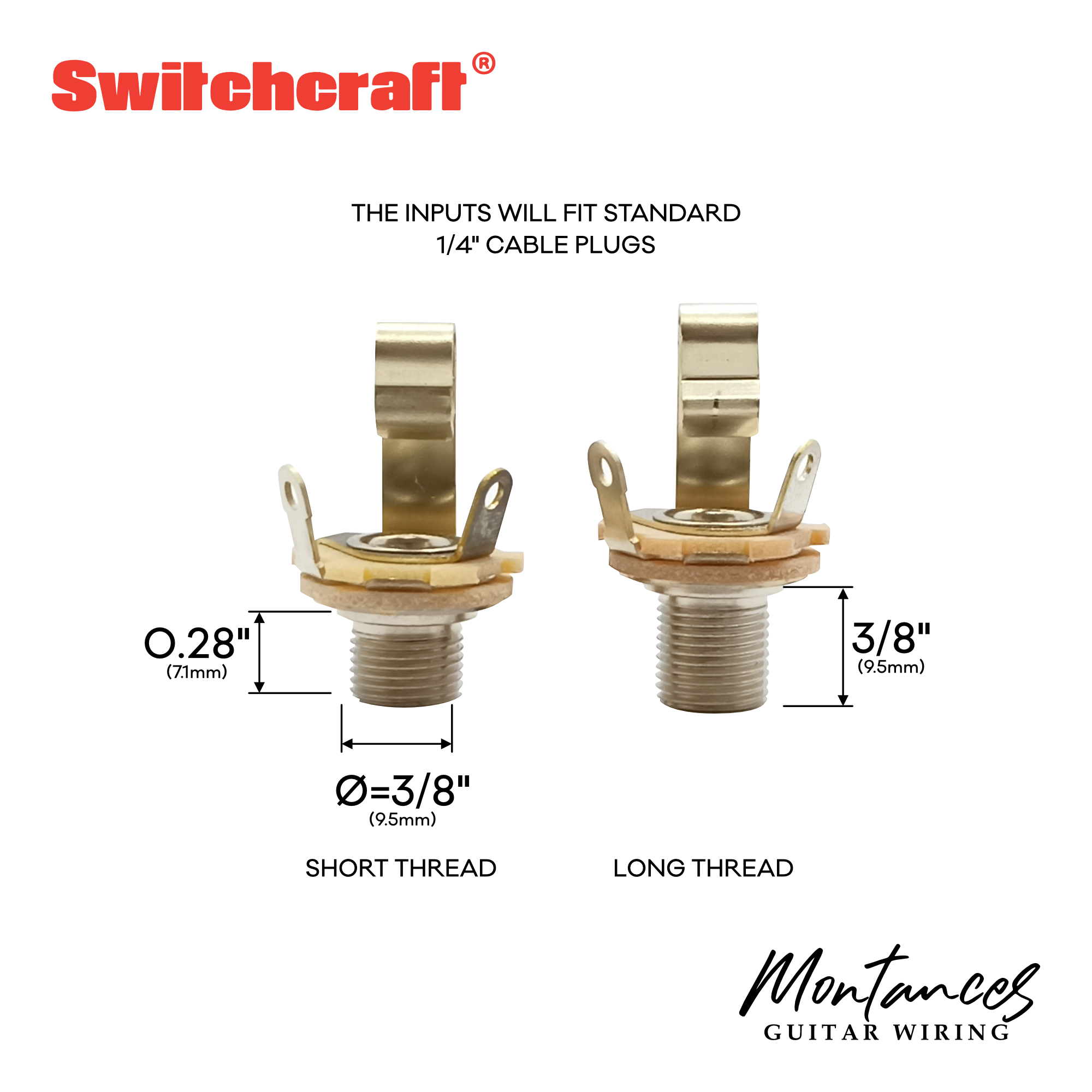

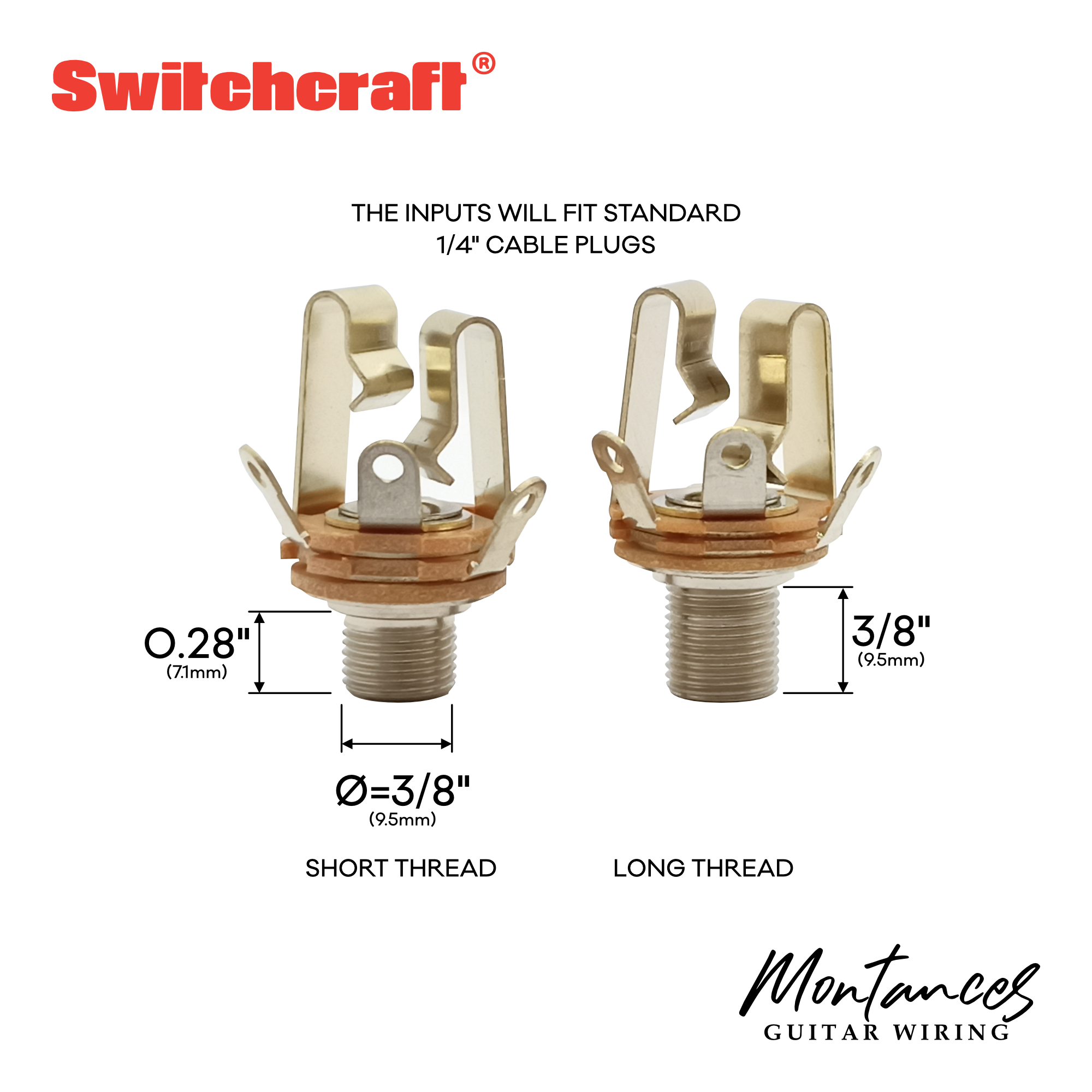

• Thread Height Options for Different Builds

• Short thread (6.35mm) – fits Strat, Tele, Jazz Bass, most thin-body guitars

• Long thread (9.53mm) – recommended for thick tops, control plates, or recessed jacks

• Enclosed Stereo Jack also available on a separate listing
  Great for guitar pedals or applications where enclosed housing adds extra protection

• Clean, Secure Connection
  Prevents signal dropouts, grounding issues, and crackle caused by worn or cheap jacks.

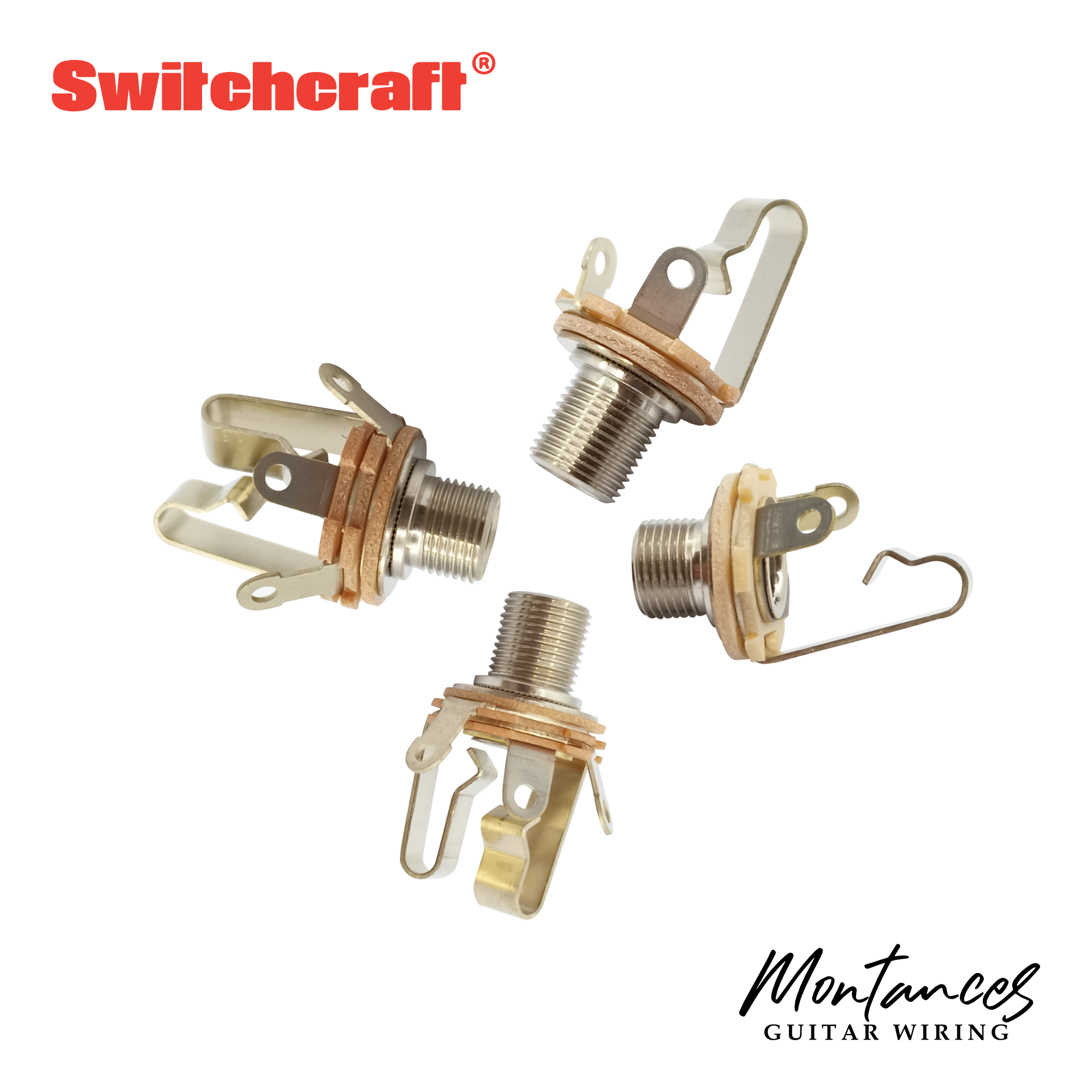

AVAILABLE VARIANTS

SPECIFICATIONS

• Plug Type: 1/4” (6.35mm)

• Required Mounting Hole: 3/8” (9.53mm)

• Material: Nickel-plated brass with copper alloy contacts

• Mounting Hardware: Hex nut & flat washer included

• Fitment: Compatible with most guitars, basses, pedals, and enclosures

WHAT’S INCLUDED

• 1x Switchcraft Output Jack (choose type)

• 1x Hex Nut

• 1x Flat Washer

FREQUENTLY ASKED QUESTIONS

Q: What’s the difference between mono and stereo jacks?
A:

• Mono TS jacks have 2 terminals (tip & sleeve) and are used for passive instruments.

• Stereo TRS jacks have 3 terminals (tip, ring, sleeve) and are used in active instruments to switch the battery on/off or handle stereo signals.

Q: How do I know which thread height to choose?
A:

• Use short thread for thin jack plates, pickguards, control plates, and control cavities.

• Use long thread for thick tops or recessed jacks

• Q: Will this fit my Strat or Tele?
  A: Yes—short thread mono is the most common fit for Strat, Tele, and similar guitars.

Q: Can I use this on a pedal or custom enclosure?
A: Absolutely. Just measure your enclosure thickness to choose the correct thread length. Check if your need TS (mono) or TRS (stereo)

Q: Can I use a Stereo TRS jack for a Mono TS operation?
A: Yes. Just use the 2 terminals (TS) instead of 3 (TRS)

IDEAL FOR

• Fender, Gibson, PRS, Ibanez, and custom guitar builders

• Guitar techs performing electronics upgrades or jack replacements

• DIY modders and hobbyists assembling their own pedals or instruments

• Players looking to eliminate signal issues and improve reliability

Your Guitar Deserves Pro-Grade Hardware

Don’t risk signal loss or loose connections. Switchcraft output jacks are a dependable upgrade for any guitar or bass—crafted in the USA for tone you can trust.

📩 Not sure which version fits your guitar? Message us—we’ll help you choose the perfect match.
