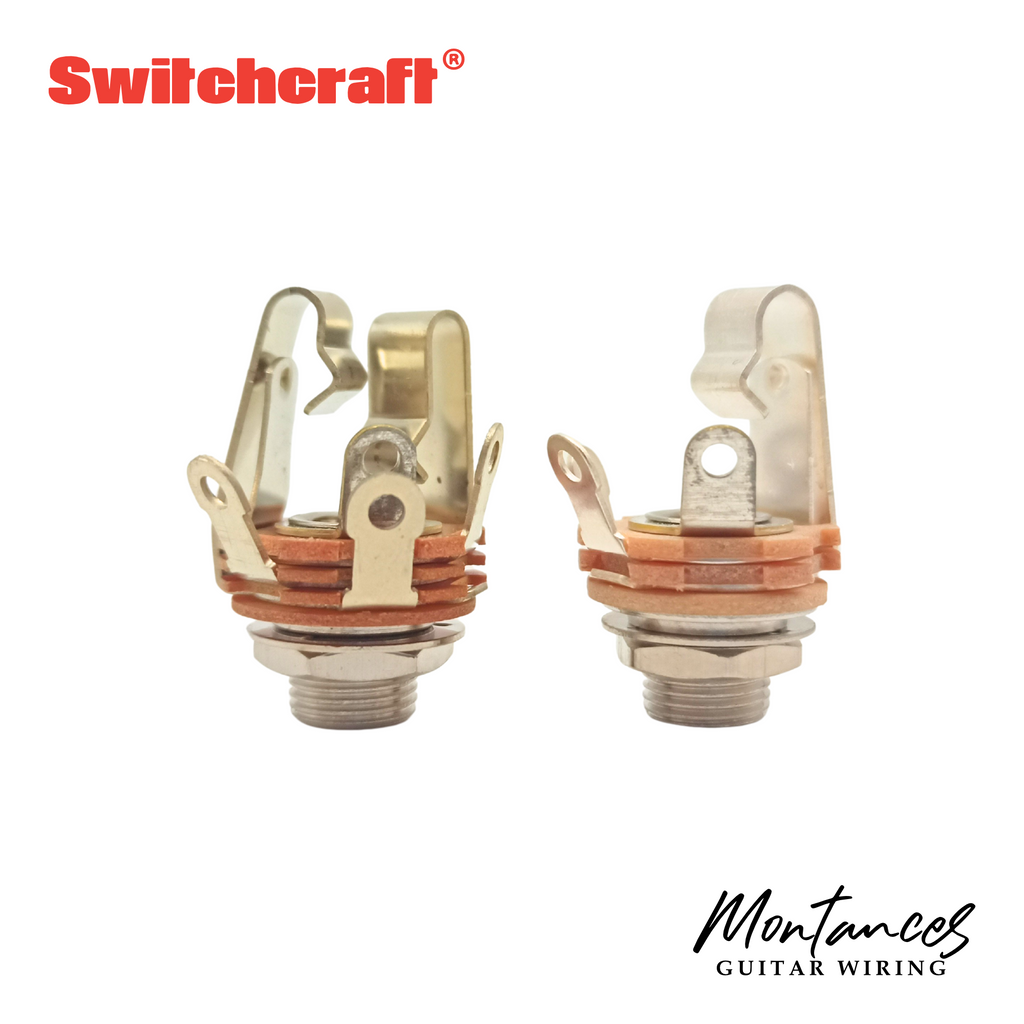

Switchcraft® Output Jack Made in USA (Mono Shunt Tip)

Switchcraft® Output Jack Made in USA (Mono Shunt Tip)
(Please Read the Details)

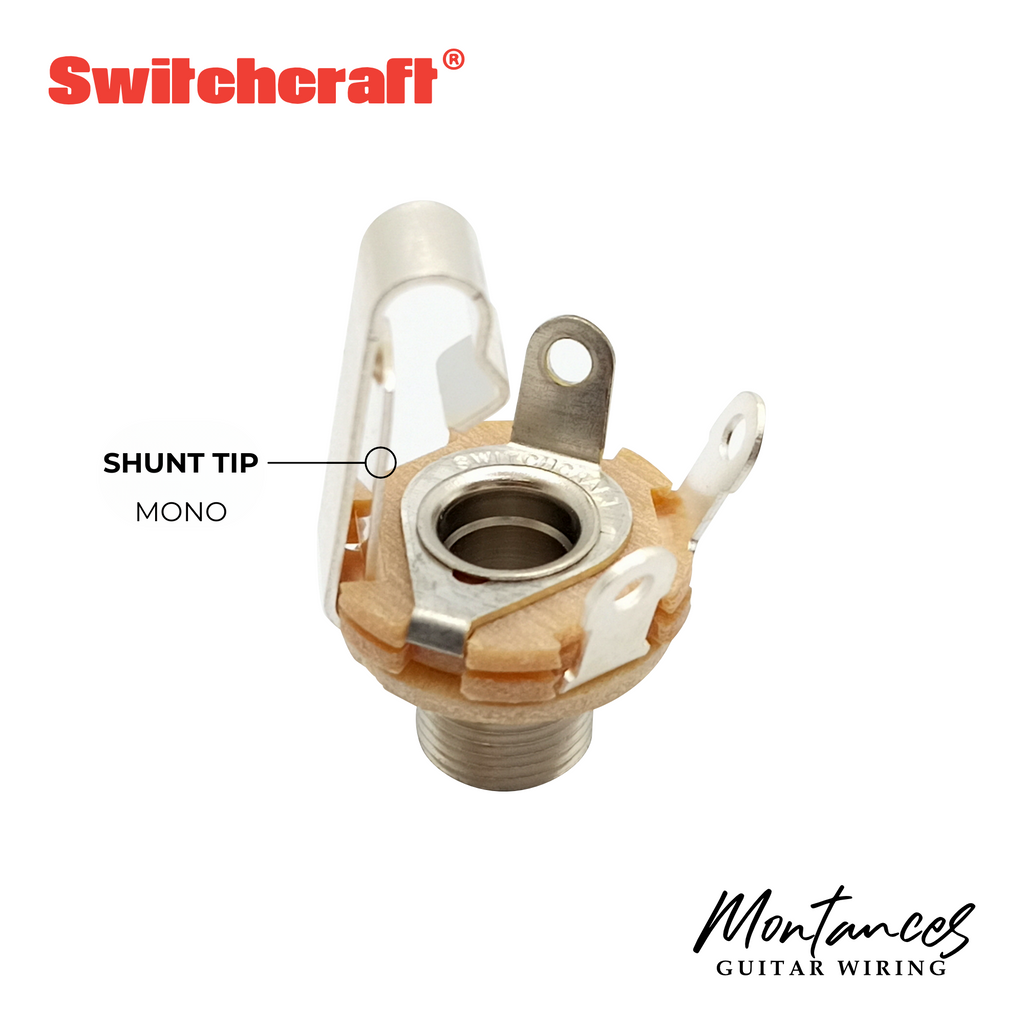

This is similar to a mono jack but comes with a shunt tip.
The shunt connects to the tip when you unplug a cable or looking at it the other way, it disconnects them when you plug a cable in.
If the shunt terminal is connected to the ground terminal (like at the input of a guitar amp), when you unplug a cable from the amp the input 'hot' lug is grounded.

Some uses:
As an input jack - it can be used to shunt the signal to ground when there is nothing plugged in, to keep the amp quiet.

As a speaker jack - it can be used to ground the signal when no speaker cable is plugged in to protect the amp.

Use this to replace your noisy, grounded and scratchy jacks.
This premium quality and US-made parts are perfect for electronics upgrade!

Specs:
Contact Plating - Nickel
Voltage Rating - 25 V
Contact Material - Copper Alloy

The standard 1/4” thread height perfectly fits guitar cable and amp speaker plugs.

Accepts standard 1/4” mono plugs
Required mounting hole diameter: 3/8" (9.53mm)

Mounting nut and flat washer included.

Please let us know if you have any questions or clarification.
Feel free to send a message and we will reply asap.

**********
