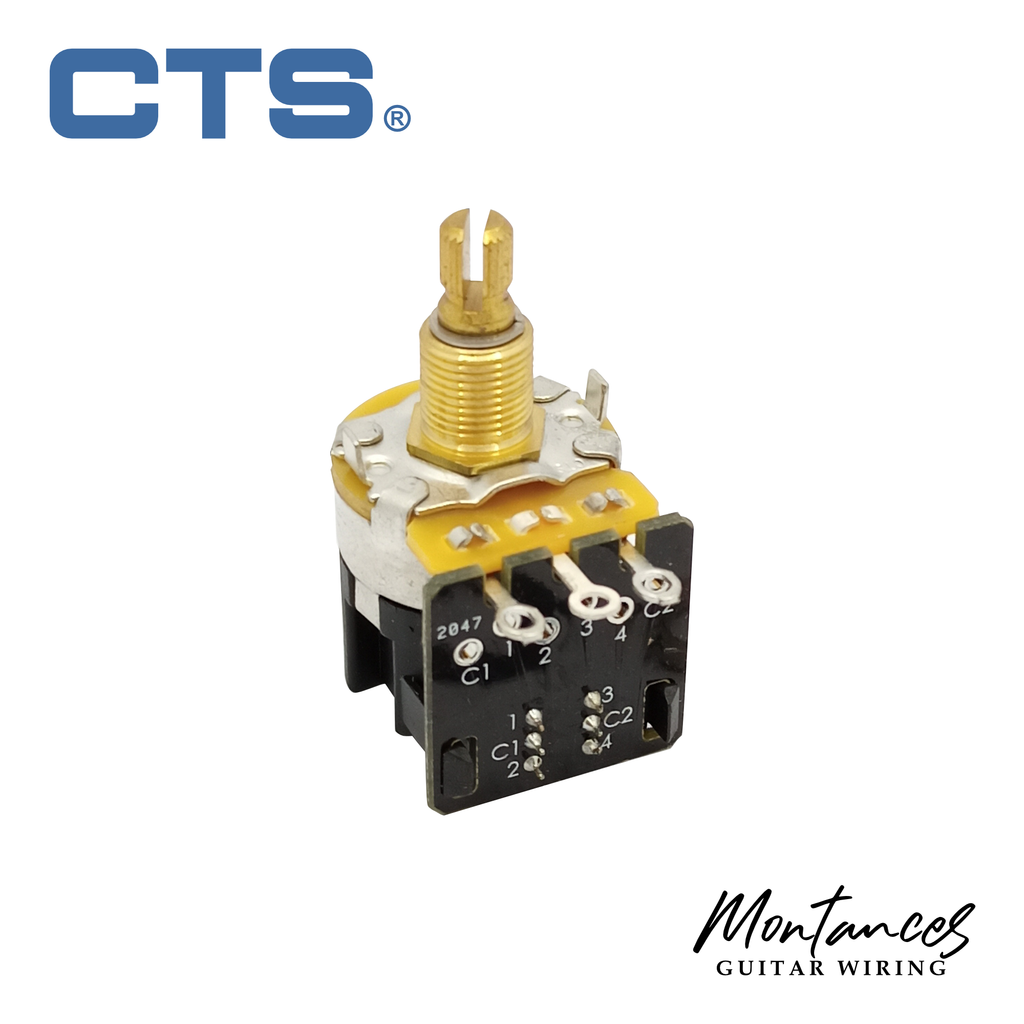

CTS® Push Pull US ⅜” Standard Length Full-Size Potentiometer
(Please Read the Details)

The CTS Push-pull pots are typically used for wiring mods like split-coil, series-parallel, in-phase / out-of-phase sounds and more.
These standard length pots (⅜” or 9.5mm) are a safe choice and will fit most US-made guitars.

CTS is a top of the line guitar potentiometer that has been used in most American builds.
This series of CTS pots are the same high-quality pots that have become the industry standard for top guitar manufacturers. Robust construction featuring brass shaft and bushing.

These US specs potentiometers are perfect replacement for US made guitars.
If your guitar is Asian made, you might need to enlarge the hole to fit this pot.
The switch terminals are implemented via PCB for easy access and soldering.

QUICK GUIDE
Taper:
A is Audio (for Tone or Volume)
B is Linear (for Volume)

Value:
250k for Single-Coils
500k for humbuckers

Thread Diameter:
US (⅜” or 9.5mm) - made in US
Metric (8mm) - made in Asia

Thread Length:
Short (¼” or 6.35mm) - perfect for pickguard and control plate mounting like Strat, Tele, Jazz bass and Precision bass.
Standard (⅜” or 9.5mm) - this is a safe choice and will fit most guitars. Just add hex Nuts and Washers and washers as necessary. This length is required for the wood top or direct to body mounting.
Long (¾” or 19mm) - best used on guitars with extra thick bodies like Gibson Les Pual USA.

SPECS
Value: 250k, 500k
Taper: Audio/Log (A)
Thread Length: Standard (⅜” or 9.5mm)
Thread Diameter*: US (⅜” or 9.5mm)
Shaft: split / knurled 24 splines
Body: Full size (0.9” or 24mm)
Torque: Standard friction rotation

Note:

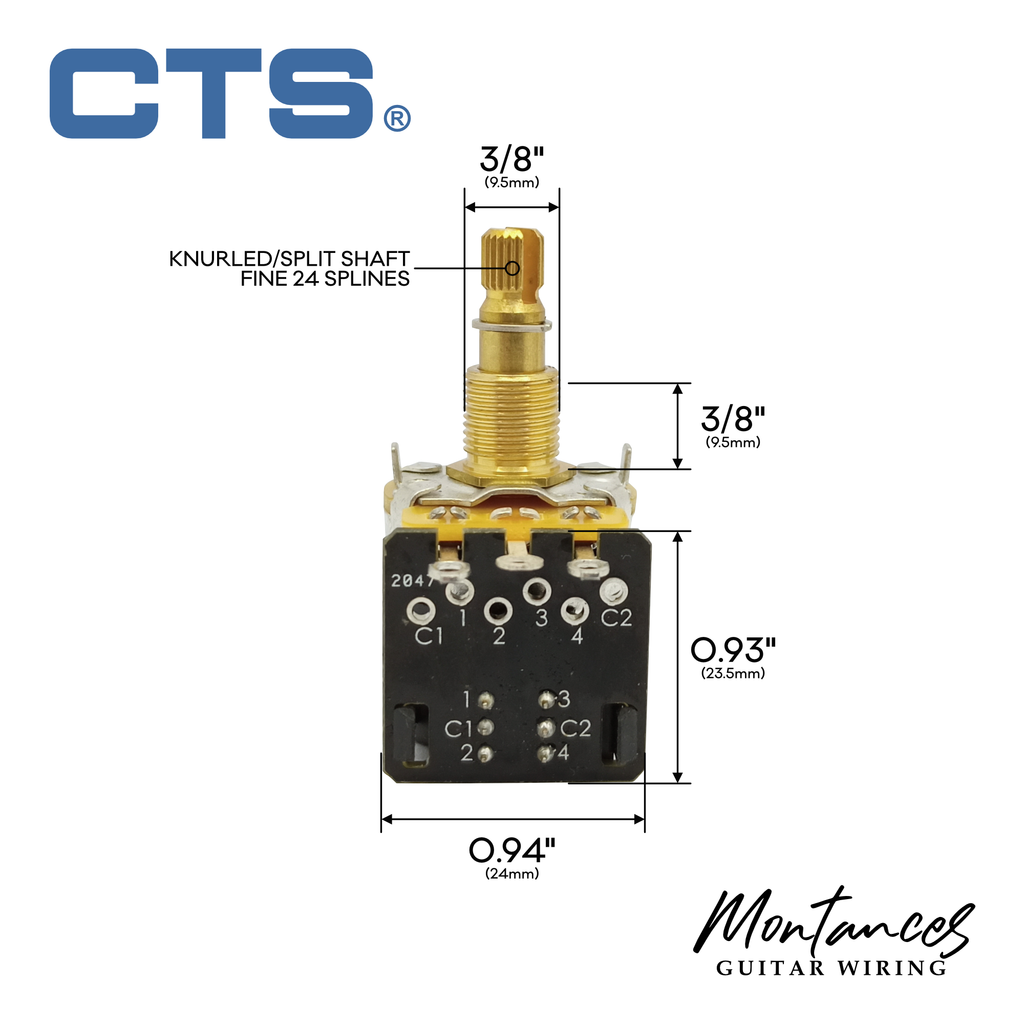

Please check the full dimensions in the product images to make sure that this will the cavity of your guitar. CTS Push-Pull are big and full-sized pots. If you need a smaller push-pull, checkout the Bourns Push-Pull pots.

Options available:
A250k Audio
A500k Audio

Includes:
1 potentiometer
2 sets of hex nut and washer

Note:
*If your guitar is Asian made, you might need to enlarge the hole to fit this pot.

For a complete guide on how to choose the correct potentiometer for your guitar, read the wiring guide on our website or watch our YT tutorials.

**********
We specialize in custom guitar wiring and handwound pickups.

Please let us know if you have questions or clarification.
You can also check our website for more wiring guide info.

Feel free to send a message and we will reply asap.

Thank you!
