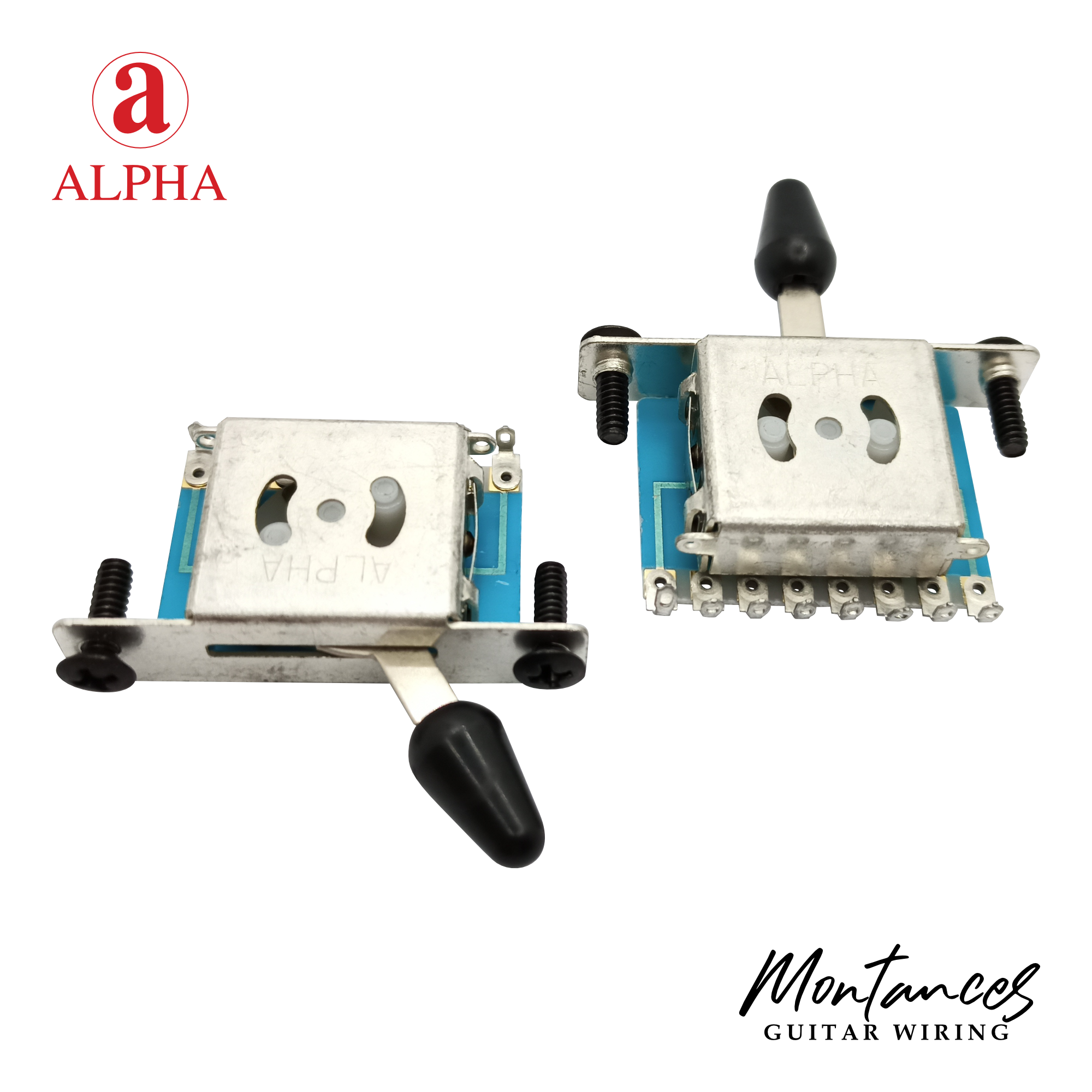

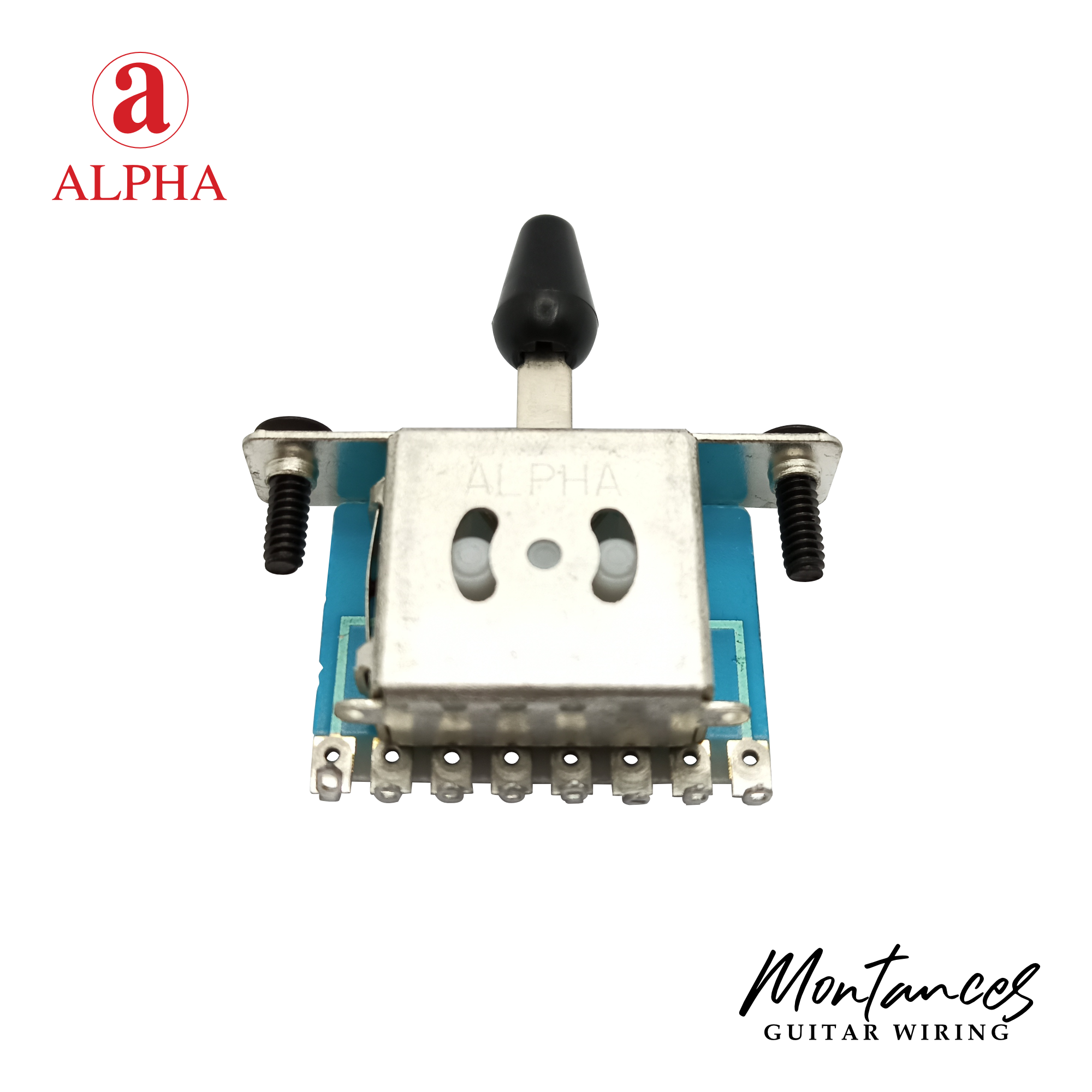

Alpha® HH 5-way Pickup Selector Ibanez Style 2502N

Alpha HH 5-way pickup selector
Ibanez Style 2502N
(Please read the details)

This is not a typical 5-way pickup selector switch.
This specific model is based on the Ibanez 2502N switch
Used for HH dual humbucker pickups.

This will give you 5 position compared to the typical 3 position wiring for HH pickups.

You will get the following pickup combinations:
1. Bridge (series humbucker)
2. Neck and Bridge Single-Coils
3. Neck and Bridge humbuckers in parallel
4. Neck Parallel humbucker
5. Neck Series humbucker

This guitar switch is perfect for your electronics upgrade!

Dimensions:

Note:
You need a 4 or 5 wire humbucker pickups for this wiring mod.

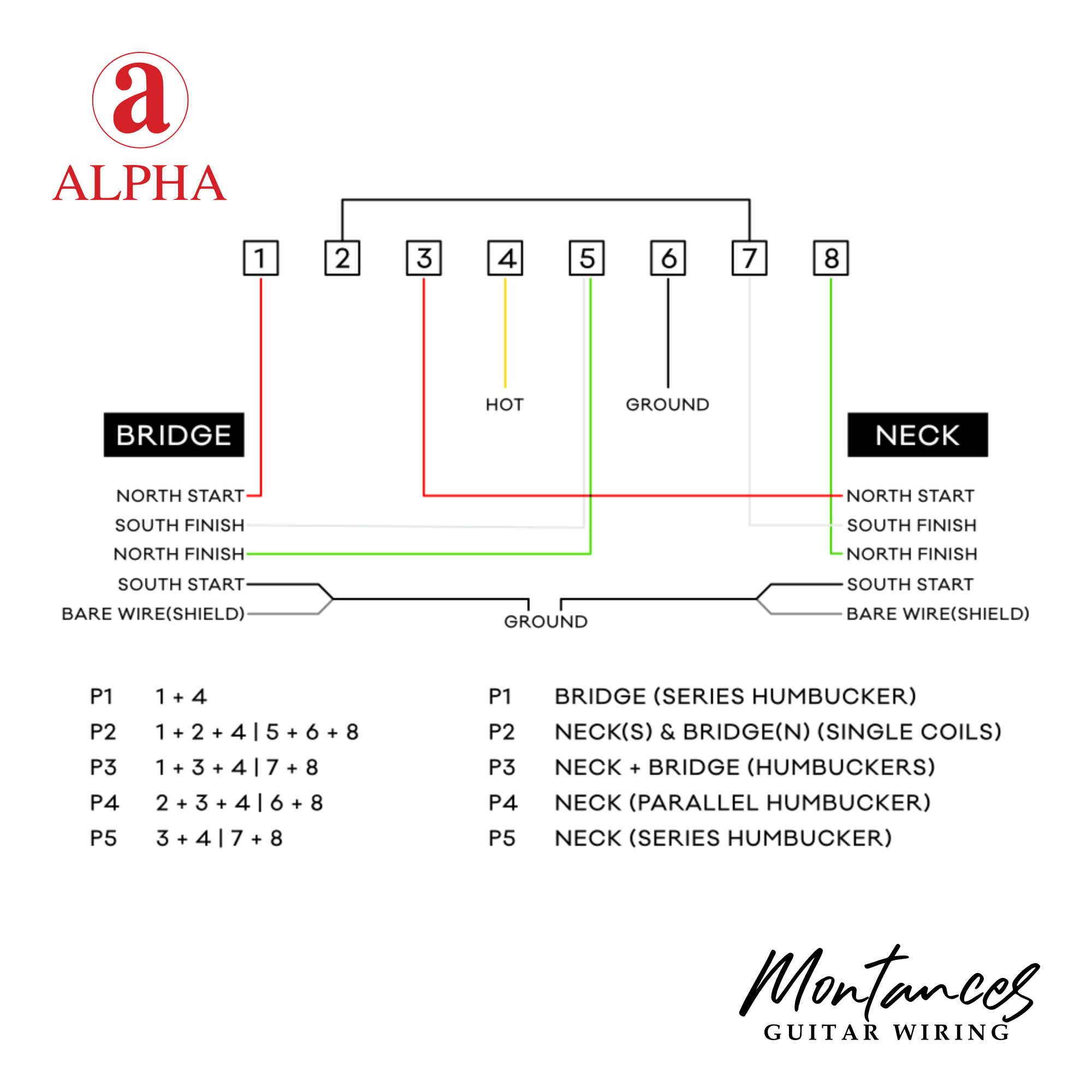

Please check photos for terminal guide and sample wiring.
HB pickups wiring color codes vary per manufacturer.
Consult a qualified guitar tech for this.

Includes:
- black switch tip
- screws

**********
We specialize in custom guitar wiring and handwound pickups.

Please let us know if you have questions or clarification.
You can also check our website for more wiring guide info.

Feel free to send a message and we will reply asap.

Thank you!
