Footswitch 3PDT with Built-in LED Ring light with colored toppers for guitar pedal
Footswitch 3PDT with Built-in LED Ring light with colored toppers for guitar pedal

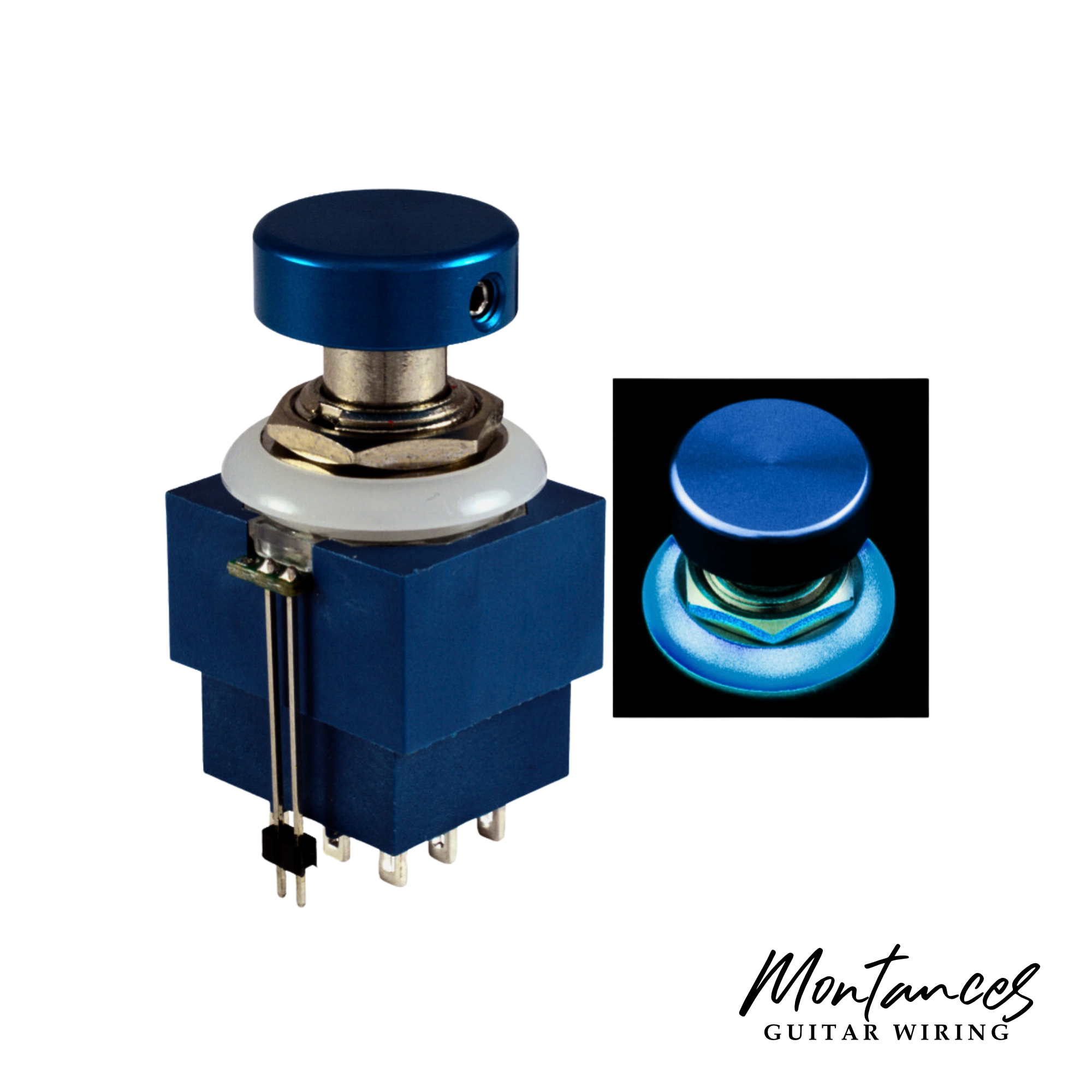

Enhance Your Pedal with a 3PDT Latching Footswitch Featuring a Built-in LED Ring
Our 3PDT latching footswitch with a built-in LED ring combines functionality and visual appeal, making it an ideal choice for pedal builds. Whether your footswitch body is blue or black, this switch offers consistent performance and durability.
Caution! External resistors are needed for the LEDs. Otherwise, you will burn and destroy them permanently!
Key Features:
-
3PDT Latching Action: Provides reliable latching functionality for various applications.
-
Built-in LED Ring: Enhances visibility and aesthetics, requiring a 0.675-inch mounting hole.
-
Versatile Termination: Available in solder lugs/tabs for flexible wiring options.
-
Durable Construction: Rated for over 10,000 cycles, ensuring long-lasting use.
Specifications:
-
Contact Resistance: ≤ 50 mΩ
-
Insulation Resistance: ≥ 100 MΩ @ 500 VDC
-
Dimensions:
-
Height: 42 mm
-
Length: 21.7 mm
-
Width: 19.05 mm
-
LED Ring Diameter: 21.3 mm
-
Electrical Ratings:
-
@ 30 VDC: 4 A
-
@ 125 VAC: 4 A
-
@ 250 VAC: 2 A
-
Mounting Hole Diameter: 0.675 in.
-
Set Screw: Requires a 1.5 mm hex key
-
Withstand Voltage: 1,000 VAC per minute
-
Lifetime: ≥ 10,000 cycles
LED Information:
-
Resistor Requirements: External resistors are needed for the LEDs.
-
Recommended range: 330 ohms to 1k ohms with a 9V battery or power supply.
-
680 ohms is a good choice for balancing brightness and battery life.
-
LED Voltage:
-
Red: Begins to glow at 1.3V, sufficient light at 1.8V.
-
Green: Begins to glow at 2V, full brightness at 2.8V.
-
Blue: Begins to glow at 2.5V, full brightness at 3.2V.
Packaging Information:
-
Dimensions: 1.7 in. × 0.855 in. × 0.75 in.
-
Weight: 0.0507 lbs.
Application:
Perfect for guitar pedals, this footswitch is designed to provide reliable switching action along with an aesthetically pleasing LED indicator. The body color may vary between blue and black, adding a unique touch to your pedal build.
Why Choose Our 3PDT Footswitch with LED Ring?
Combining a 3PDT latching mechanism with an integrated LED ring, this footswitch offers both functionality and style. Its robust design and versatile termination options make it a top choice for custom pedal builders seeking reliable and visually appealing components.
