PCB - Daughterboard for Wiring 3PDT Footswitches

PCB - Daughterboard for Wiring 3PDT Footswitches

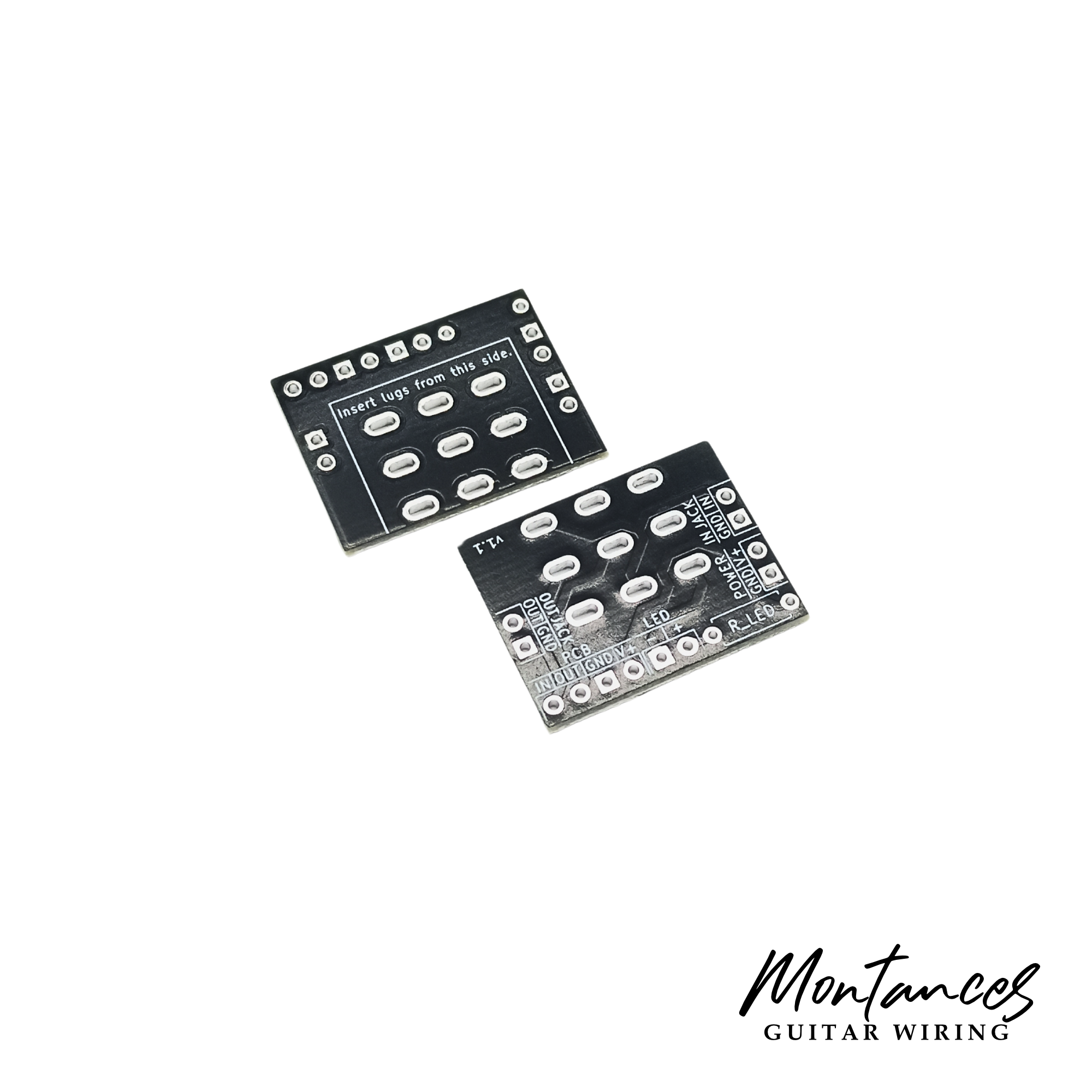

Simplify Your Pedal Builds with Our 3PDT PCB Daughterboard

Our 3PDT PCB daughterboard is designed to make wiring 3PDT footswitches in guitar pedals effortless and error-free. With clearly labeled inputs and outputs, this board ensures accurate connections, minimizing the risk of wiring mistakes and short circuits. It's perfect for both novice builders and experienced pedal enthusiasts looking for a streamlined wiring solution.

Key Features:

• Clear Labeling: Inputs and outputs are clearly marked, eliminating confusion and reducing wiring errors.

• Dedicated Pads: Each connection has a dedicated pad, preventing multiple connections on a single pad or lug.

• Current-Limiting Resistor Location: Includes a spot for an onboard current-limiting resistor, allowing for clean LED wiring with no floating resistors.

• Compact Design: One of the smallest boards available, easily fitting inside tight builds, including 1590A enclosures.

• Optimized Pad Orientation: Pads are located near their respective off-board components for clean, organized wiring and efficient use of space.

Compatibility:

• Works with many common 3PDT footswitches.

• Not compatible with low profile 3PDT footswitches due to different pin spacing.

Specifications:

• Measurements:

• Length: 1 in.

• Thickness: 0.062 in.

• Width: 0.78 in.

Packaging Information:

• Dimensions: 1.023 in. × 0.771 in. × 0.062 in.

• Weight: 0.0044 lbs.

Why Choose Our 3PDT PCB Daughterboard?

Our 3PDT PCB daughterboard is engineered to simplify and enhance your pedal building experience. With its clear labeling and dedicated pads, you can achieve precise and clean wiring, ensuring reliable performance in your guitar pedals. Its compact size makes it ideal for tight builds, helping you create professional-grade pedals with ease.
