Fender® No Load Potentiometer, 250kΩ, Knurled Shaft
(Please Read the Details)


250K ohm. for most Stratocasters and Telecasters. Original guitar hardware. CTS manufactured, includes a capacitor. Comes in Fender ® packaging.

Some Fender guitars have a unique tone circuit that features a "Delta Tone Control. The "Delta Tone' system consists of a high output bridge pickup and special 'no-load' tone control for the middle and bridge pickups. This new pot has a detent at the 10 position which bypasses completely any filtration through capacitors. Unlike the TBX, which [has] a detent at the 5 positions and gradually reduces the amount of filtration through the capacitor, the Delta-Tone's 'no-load' feature eliminates filtration completely at the detent and the result is more of the direct presence of the pickup.

250K "no-load" potentiometer
3/8" split-shaft design

Takes push-on control knob
Mounting hardware and .022mf 250V tone capacitor included

Product data:
Fender Part Number: 099-0832-000
Brand: Fender
Resistance: 250k
Shaft: Split Knurled
Taper: No Load
Termination Style: Solder Lugs/Tabs
Type/Size: 24mm Single

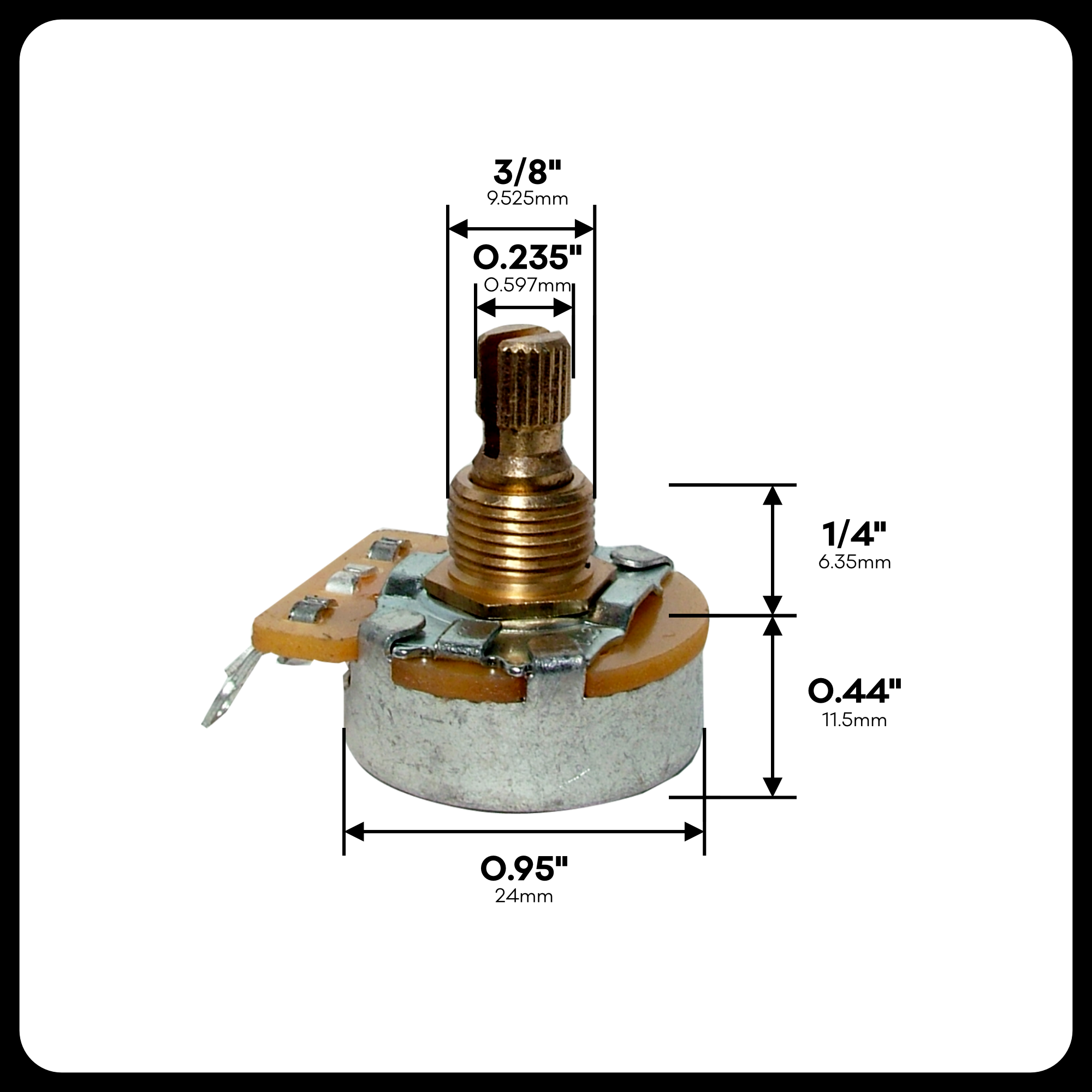

Measurement and Specs:
Body Depth 0.44 in.
Body Diameter 0.95 in.
Bushing Length 0.25 in.
Resistance 250 kΩ
Shaft Diameter 0.235 in.
Shaft Length 0.38 in.
Shaft Rotation 300°
U.S. Thread Major Diameter 0.375 in.
U.S. Thread Pitch 32 tpi.
