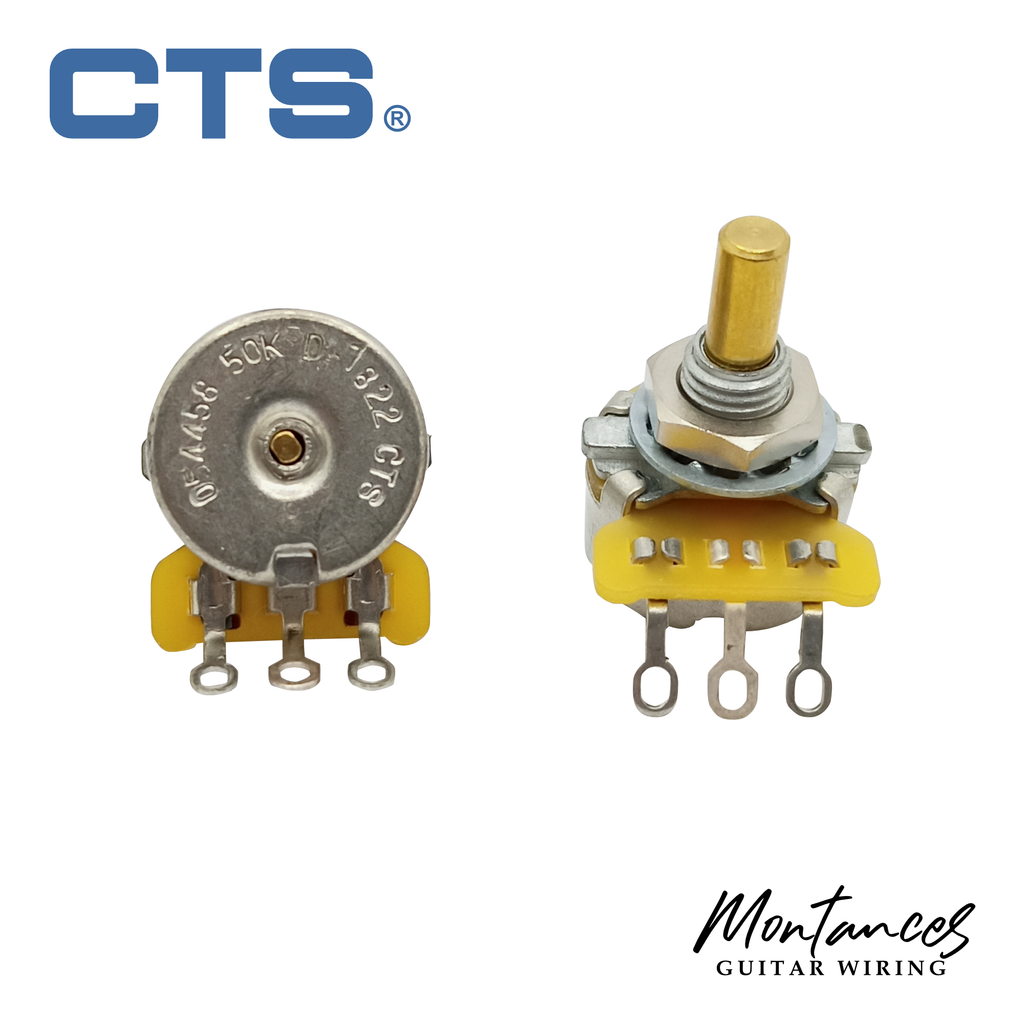

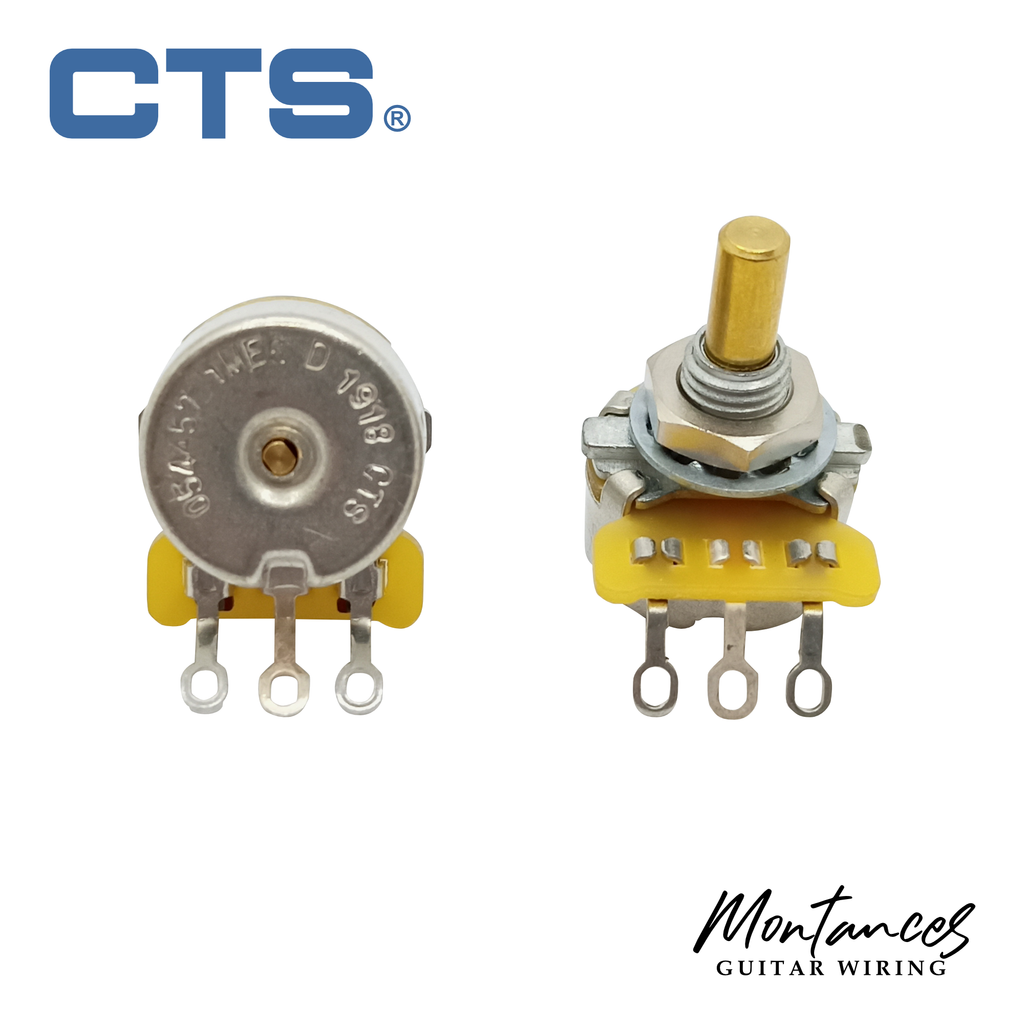

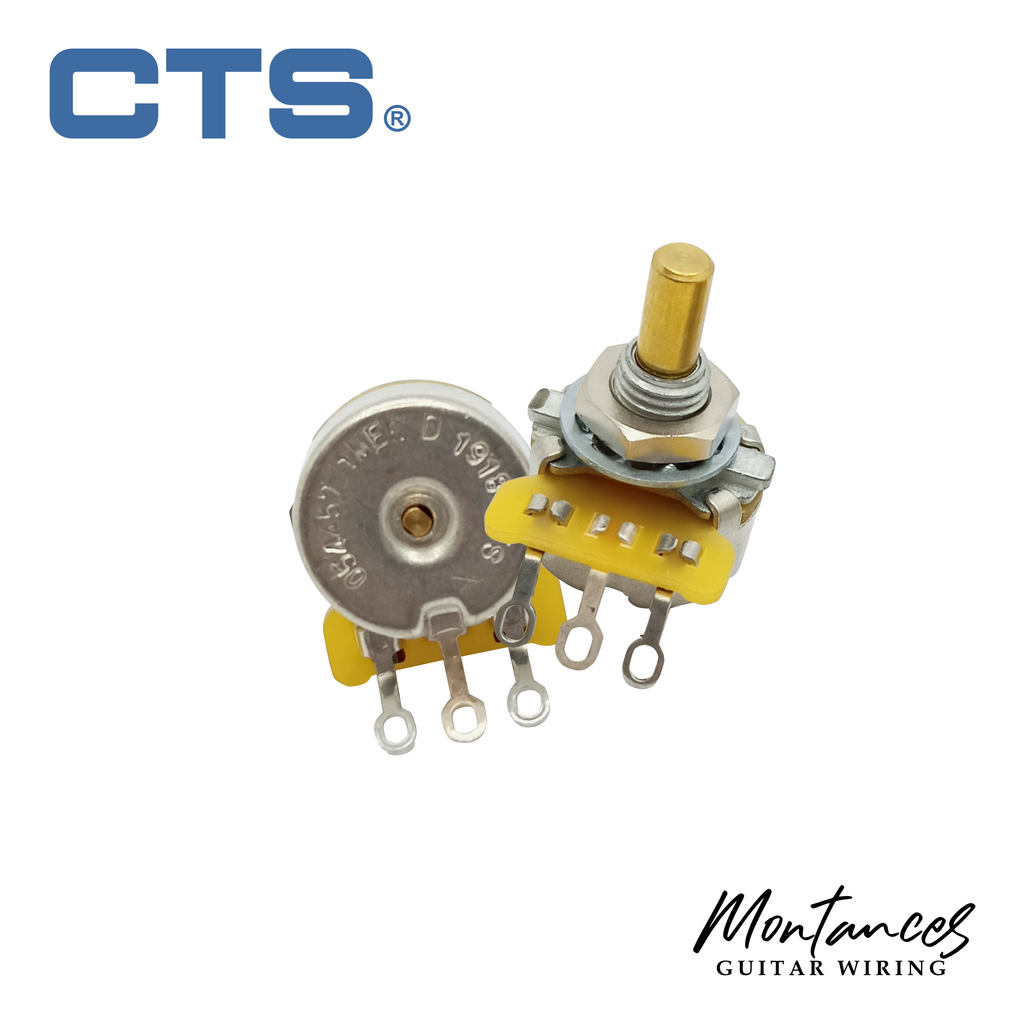

CTS® Premium US ¼” Short Length Mini-Size Potentiometer (Offset guitars)

CTS® Premium US ¼” Short Length Mini-Size Potentiometer

₱1,713.00 ₱2,142.00
3/8" (9.5mm) bushing · 1/4" (6.35mm) short length Solid shaft (Set-screw) Pickguard or control plate
Fits USA / Imperial (Fender, Gibson)
Shaft Solid shaft (Set-screw)
Thread 3/8" (9.5mm) bushing · 1/4" (6.35mm) short length
Mounting Pickguard or control plate

Options

Value & Taper

Will it fit my guitar?

    Fit values for this pot are stored in four product fields (fit, thread, mounting, shaft). If a product has no values, this checker hides itself.

    Typical US pots use a 3/8″ (9.5mm) bushing and 24 splines. Typical Asian pots use an 8mm bushing and 18 splines.

    Technical specifications

    Value & Taper B1MEG Linear Taper, B50k Linear Taper
    Fits USA / Imperial (Fender, Gibson)

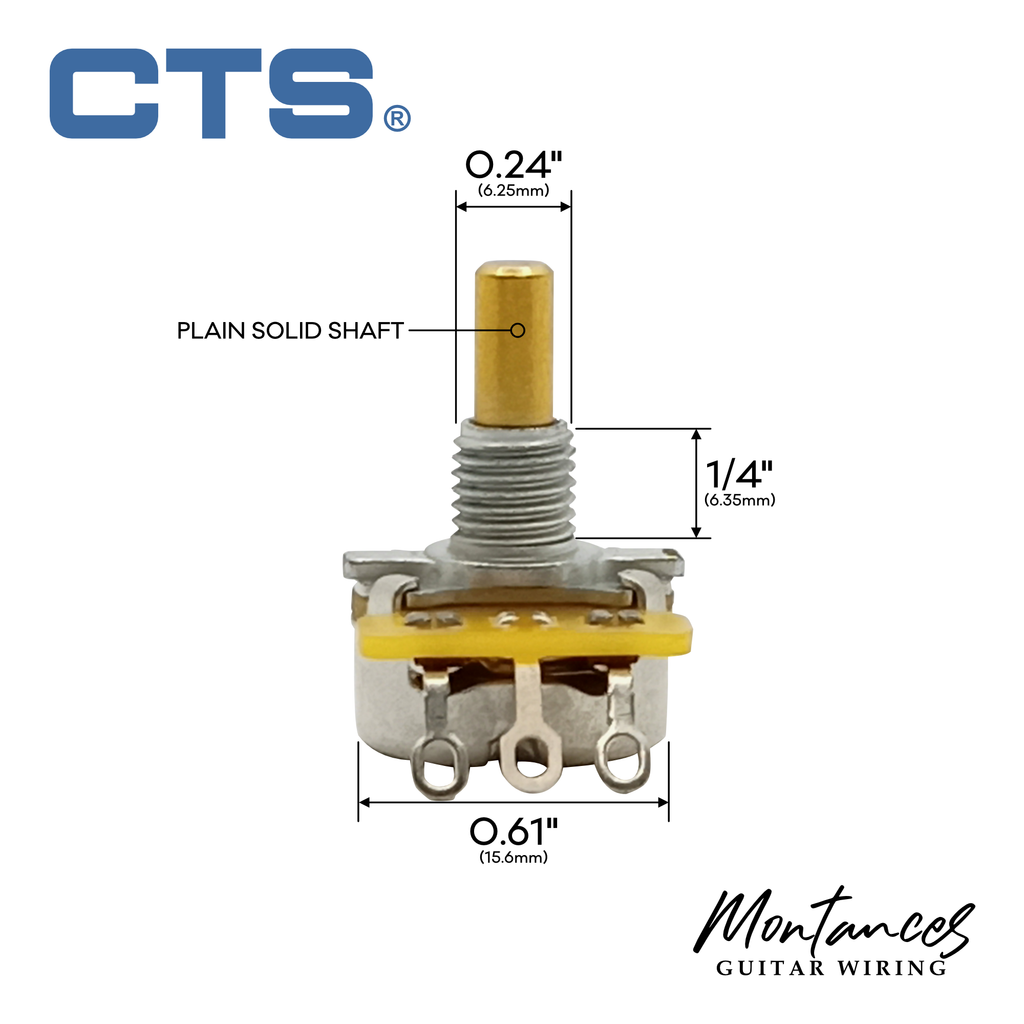

    Thread 3/8" (9.5mm) bushing · 1/4" (6.35mm) short length
    Mounting Pickguard or control plate
    Shaft Solid shaft (Set-screw)
    Brand CTS

    US vs Asian pots

    US pots (CTS and similar) usually have a 3/8″ (9.5mm) bushing and fine 24-spline shafts.

    Asian or metric pots (Alpha, many Bourns) usually have an 8mm bushing and coarse 18-spline shafts.

    A metric pot drops loosely into a US hole. A US pot will not fit a metric hole without enlarging it.

    Knobs must match the spline count. Forcing the wrong one can break the shaft.

    Will this CTS® Premium US ¼” Short Length Mini-Size Potentiometer fit my guitar without drilling?
    This pot uses a 3/8" (9.5mm) bushing · 1/4" (6.35mm) short length designed for USA / Imperial (Fender, Gibson). It drops straight into most USA-made guitars (Fender USA, Gibson, etc.) with 3/8" (9.5mm) mounting holes. If you have an Asian-made or metric import guitar (Squier, Epiphone, Ibanez, Yamaha, Cort) with smaller 8mm holes, you will need to enlarge the hole to 9.5mm (3/8") for this pot to fit.
    Which knobs fit this potentiometer (Solid shaft (Set-screw))?
    This pot has a Solid shaft (Set-screw) (1/4" / 6.35mm smooth shaft) and requires set-screw knobs that tighten against the side of the shaft with a small screw. Push-on split-shaft knobs (18-spline or 24-spline) are made for knurled shafts and will not grip a solid shaft properly.
    Is the thread length right for a pickguard, control plate, or wood top?
    This model has a 3/8" (9.5mm) bushing · 1/4" (6.35mm) short length built specifically for pickguard or control plate installation (such as Stratocaster pickguards and Telecaster or Jazz Bass metal control plates), sitting flush without extra spacer nuts underneath. It is generally too short for rear-routed wood tops.
    Which option should I choose (B1MEG Linear Taper, B50k Linear Taper)?
    Available options for this pot: B1MEG Linear Taper, B50k Linear Taper.Choose 250K for single-coil pickups (Strat, Tele, Jazz/P-Bass) to smooth out bright highs, or 500K for humbuckers and P-90s to preserve clarity and top-end chime. Audio Taper (A / Log) matches how the human ear hears volume changes (ideal for Volume and most Tone controls), while Linear Taper (B) sweeps resistance at a uniform rate.
    Does this CTS pot include mounting hardware?
    Yes—each potentiometer includes its matching mounting nut and washer(s). When soldering ground wires to the back of the casing, use a 40W–60W iron with rosin-core solder and keep heat contact brief (2–3 seconds) to protect the internal conductive track.
