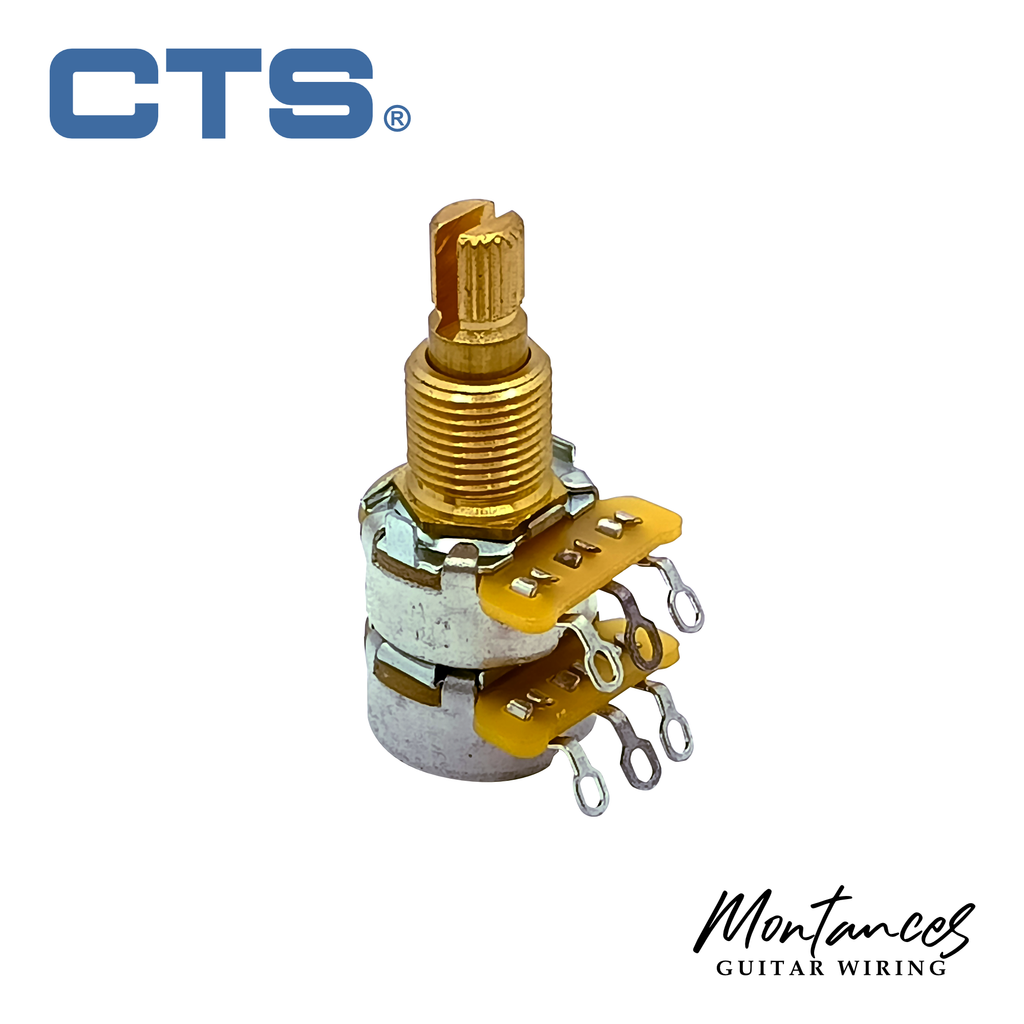

CTS Balance-Blend Dual Gang Potentiometer with center detent linear taper split shaft 24 splines

CTS Balance-Blend Dual Gang Potentiometer

₱1,141.00 ₱1,427.00
1 sold

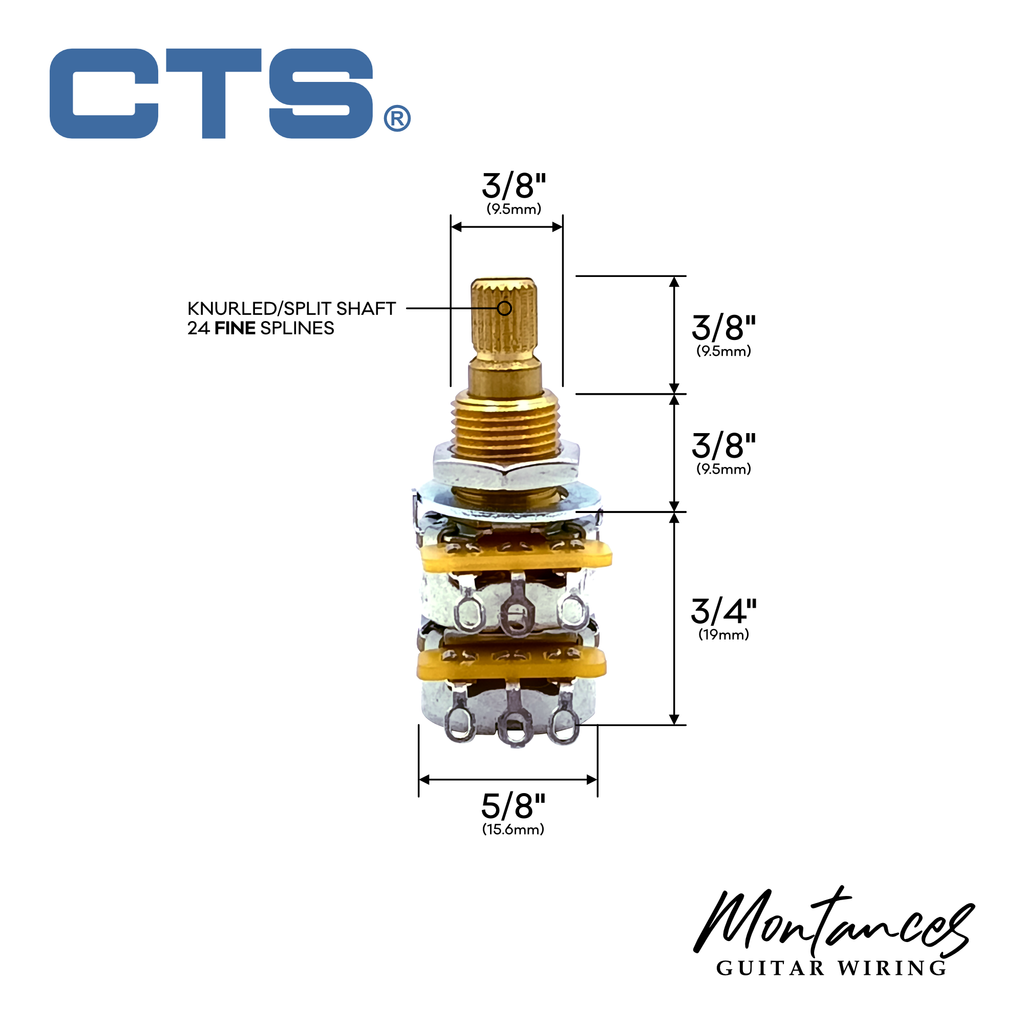

3/8" (9.5mm) bushing · 3/8" (9.5mm) standard length Split, 24 splines (Fine) Wood top, body, or pickguard
Fits USA / Imperial (Fender, Gibson)
Shaft Split, 24 splines (Fine)
Thread 3/8" (9.5mm) bushing · 3/8" (9.5mm) standard length
Mounting Wood top, body, or pickguard

Options

Values

Will it fit my guitar?

    Fit values for this pot are stored in four product fields (fit, thread, mounting, shaft). If a product has no values, this checker hides itself.

    Typical US pots use a 3/8″ (9.5mm) bushing and 24 splines. Typical Asian pots use an 8mm bushing and 18 splines.

    Technical specifications

    Values 250K, 500K
    Fits USA / Imperial (Fender, Gibson)
    Thread 3/8" (9.5mm) bushing · 3/8" (9.5mm) standard length
    Mounting Wood top, body, or pickguard
    Shaft Split, 24 splines (Fine)
    Brand CTS

    US vs Asian pots

    US pots (CTS and similar) usually have a 3/8″ (9.5mm) bushing and fine 24-spline shafts.

    Asian or metric pots (Alpha, many Bourns) usually have an 8mm bushing and coarse 18-spline shafts.

    A metric pot drops loosely into a US hole. A US pot will not fit a metric hole without enlarging it.

    Knobs must match the spline count. Forcing the wrong one can break the shaft.

    Will this CTS Balance-Blend Dual Gang Potentiometer fit my guitar without drilling?
    This pot uses a 3/8" (9.5mm) bushing · 3/8" (9.5mm) standard length designed for USA / Imperial (Fender, Gibson). It drops straight into most USA-made guitars (Fender USA, Gibson, etc.) with 3/8" (9.5mm) mounting holes. If you have an Asian-made or metric import guitar (Squier, Epiphone, Ibanez, Yamaha, Cort) with smaller 8mm holes, you will need to enlarge the hole to 9.5mm (3/8") for this pot to fit.
    Which knobs fit this potentiometer (Split, 24 splines (Fine))?
    This pot has a Split, 24 splines (Fine) shaft and requires 24-spline (US fine-knurl) push-on knobs (or universal set-screw knobs). Standard 18-spline metric knobs will not seat on a 24-spline shaft—forcing the wrong spline count can damage the shaft.
    Is the thread length right for a pickguard, control plate, or wood top?
    This model has a 3/8" (9.5mm) bushing · 3/8" (9.5mm) standard length suited for wood top, body, or pickguard (standard rear-routed wood tops up to ~6mm thick, pickguards, and control plates). For thick carved tops (>12mm), choose a 3/4" (19mm) long-thread pot instead.
    Which option should I choose (250K, 500K)?
    Available options for this pot: 250K, 500K.Choose 250K for single-coil pickups (Strat, Tele, Jazz/P-Bass) to smooth out bright highs, or 500K for humbuckers and P-90s to preserve clarity and top-end chime. Audio Taper (A / Log) matches how the human ear hears volume changes (ideal for Volume and most Tone controls), while Linear Taper (B) sweeps resistance at a uniform rate.This pot also includes a center detent (click) at 50% rotation so you can feel the exact center balance point.
    Does this CTS pot include mounting hardware?
    Yes—each potentiometer includes its matching mounting nut and washer(s). When soldering ground wires to the back of the casing, use a 40W–60W iron with rosin-core solder and keep heat contact brief (2–3 seconds) to protect the internal conductive track.
