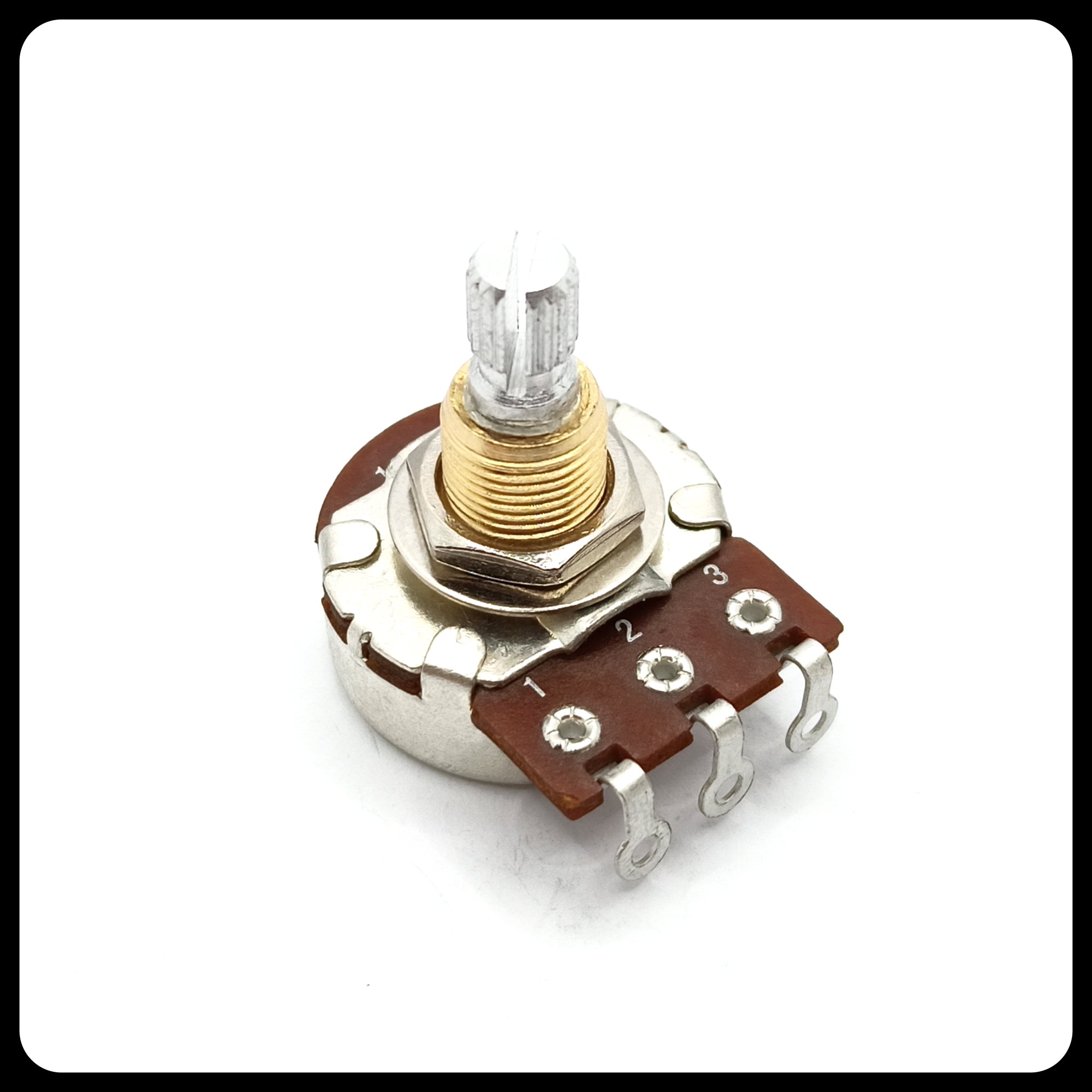

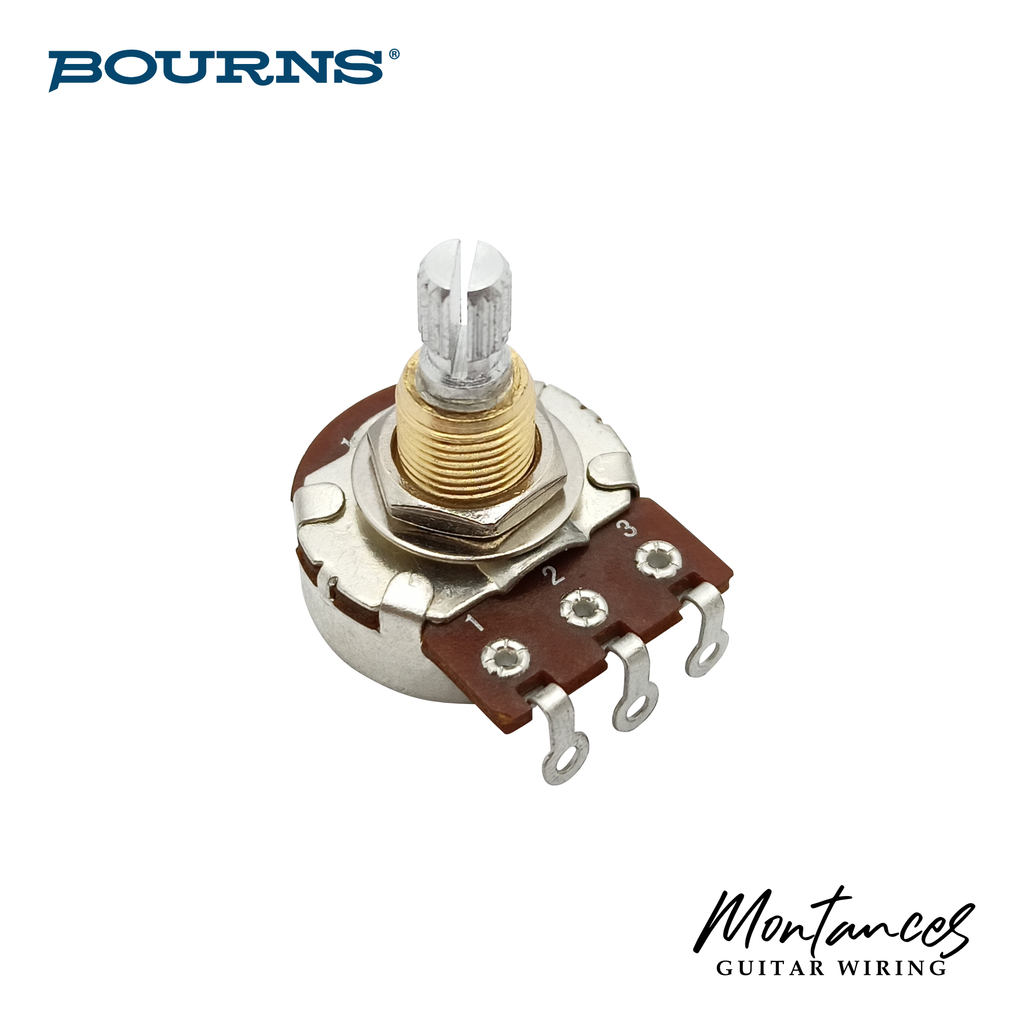

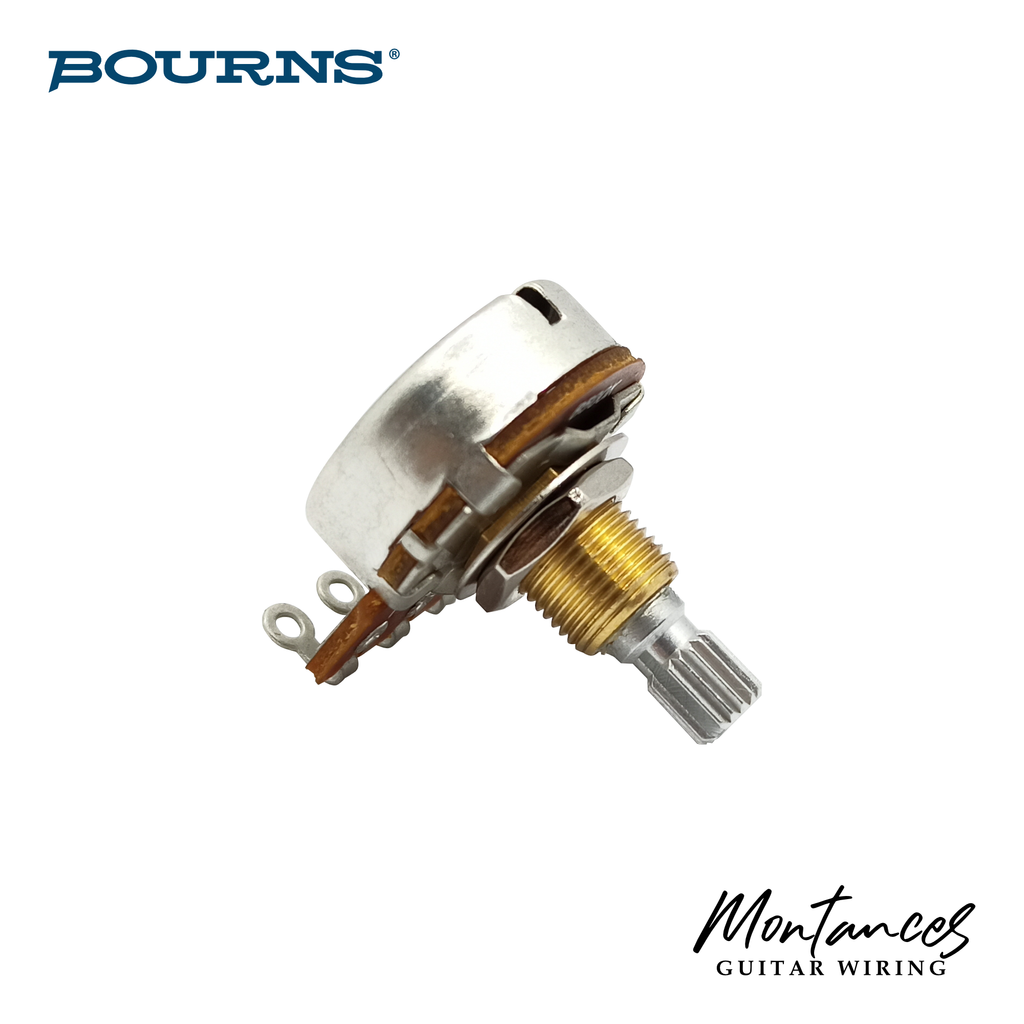

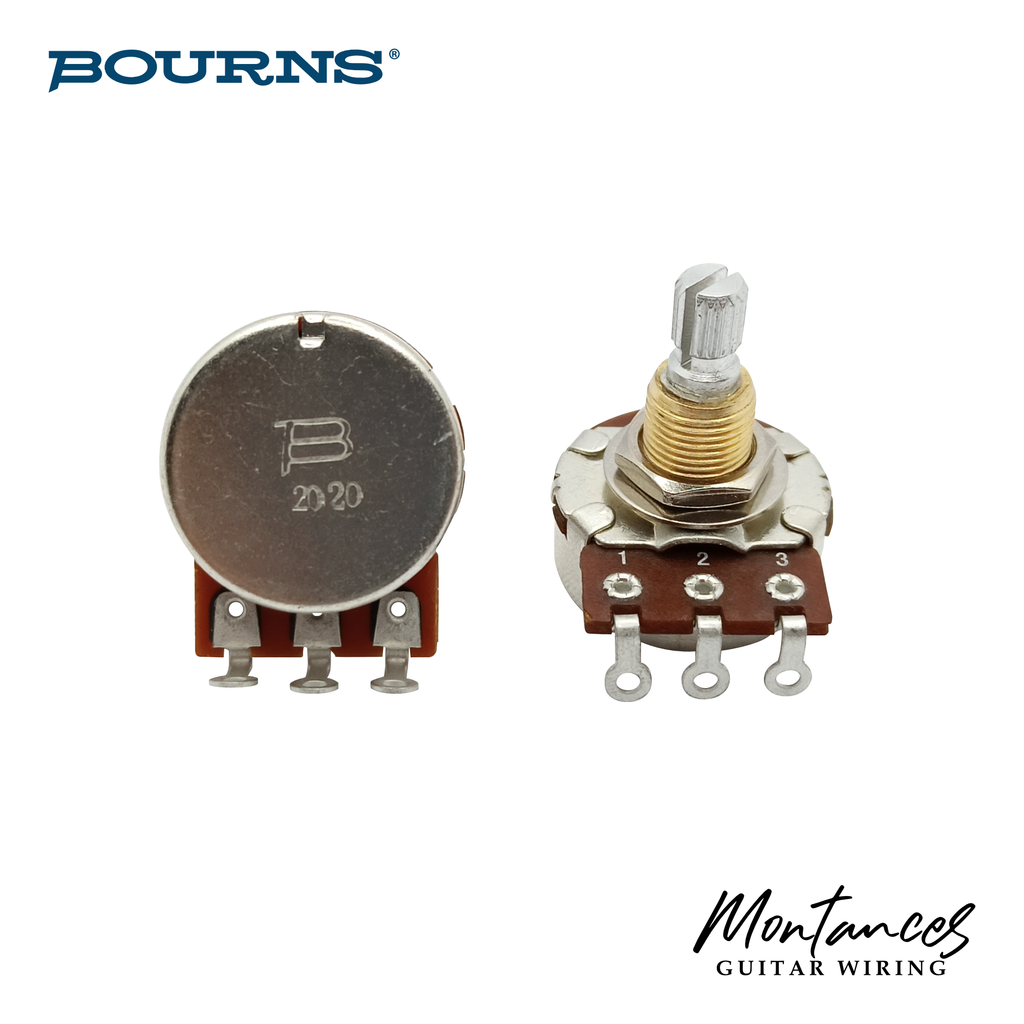

Bourns® Premium US ⅜” Standard Length Full-Size Potentiometer
High Torque, Split Shaft
(Please Read the Details)
This is not a typical Bourns guitar potentiometer.
This custom series of Bourns Potentiometers are specifically designed for guitars and bass to give a smooth and more natural taper.
This is the high torque version. High torque pots feature a high friction shaft rotations which will result in a slow to turn potentiometer. This is perfect if you want to set your pots in a specific position and not worry about accidentally rolling it up or down.
We also have a Low Torque full size pots for quick knobs rotation.
Mini pots with standard torque are also available.
Perfect for guitar wiring electronics upgrade!

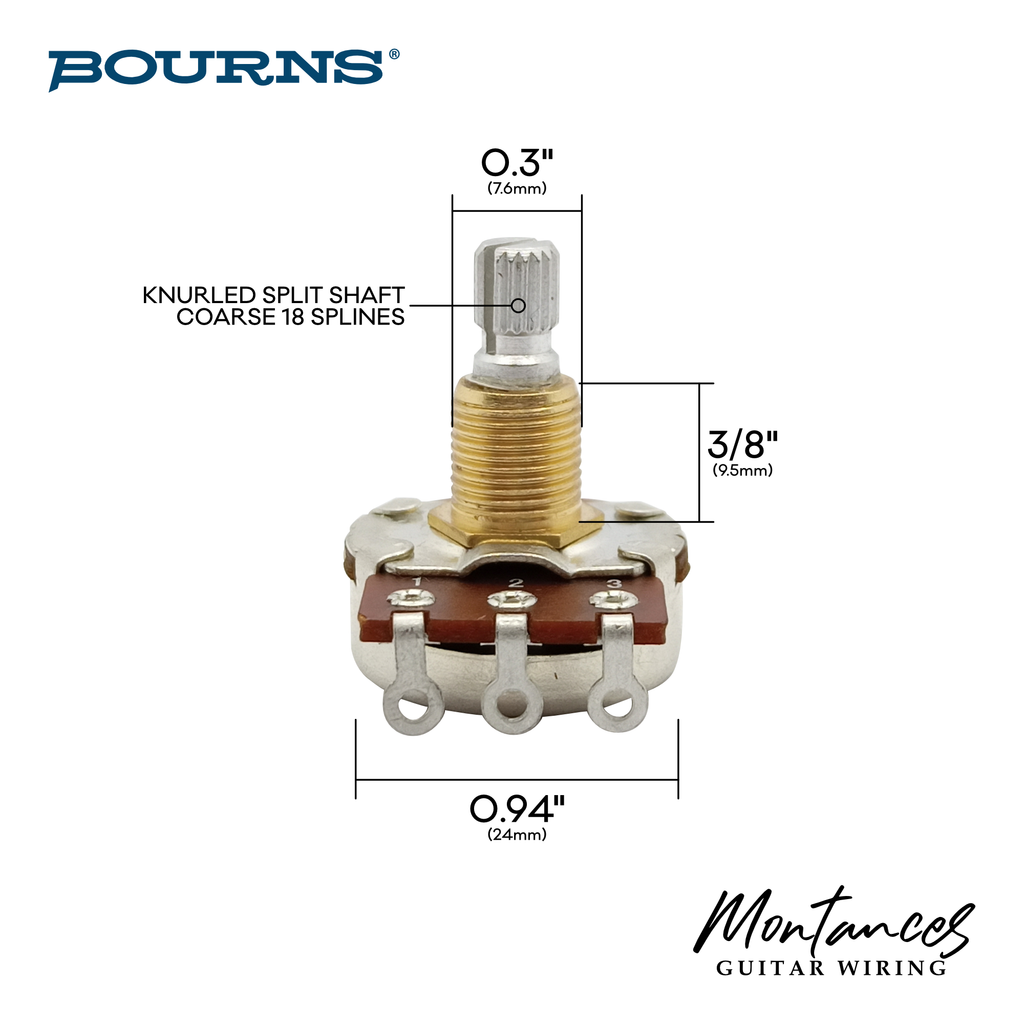

- US size mounting hole diameter of 3/8” (9.5mm). *
- Bushing height is 3/8”. **
- Full-size body 24mm.
- Knurled (Split) or plain (solid) shaft
- Solid shaft diameter is 6.35mm***
Audio Taper - D250k
Audio Taper - D500k
Linear Taper - B250k
Linear Taper - B500k
2 sets of hex nut and washer
* If your guitar is Asian made, you might need to drill a bigger hole.
**Potentiometer thread length and thread height is ⅜”. Each potentiometer comes with 2 sets of hex nut and washer to fit pickguard and control plate installation. For direct body mounting, only 1 set is required.
*** Solid shaft diameter is 6.35mm, please make sure that your knobs will fit this. The mini version has a smaller shaft diameter or 6.0mm
We specialize in custom guitar wiring and handwound pickups.
Please let us know if you have questions or clarification.
You can also check our website for more wiring guide info.
Feel free to send a message and we will reply asap.
