HSH Strat Wiring Kit Upgrade (Metric Size)



This set is perfect for a Strat-style guitar with an H-S-S pickup configuration.Bridge: Humbucker (H)Middle: Single Coil (S)Neck: Humbucker (H)

HSH wiring seems tricky because most people are confused with what component values are best for Humbucker and Single coil combinations. The truth is: the recommended values of potentiometer and capacitors for HSH setups really depend on the wiring style. There are too many config possibilities. Each has its own pros and cons. It is always best to consult with your trusted guitar tech.

We carefully designed 4 options so you can choose which wiring style is best for you.

#1 Standard with Auto-Split (NO Bridge Tone Control)- For 4-wire HB only- T1 for Neck, T2 for Mid. Can also be wired so that T1 for Neck, T2 for Bridge and NO Mid Tone Control

#2 Matched Load for 2-wire humbucker (No Auto Split in positions 2 and 4)- Can also be used for 4-wire HB- No Mid Tone Control- Uses a Superswitch

#3 Matched Load with Auto Split (Position 3 is Neck + Bridge)- For 4-wire HB only- No Mid Tone Control- Uses a Superswitch

#4 Matched Load with Auto Split (Position 3 is Neck + Mid + Bridge)- For 4-wire HB only- No Mid Tone Control- Uses a Superswitch



******************

Upgrade Kit includes the following:

Option 1

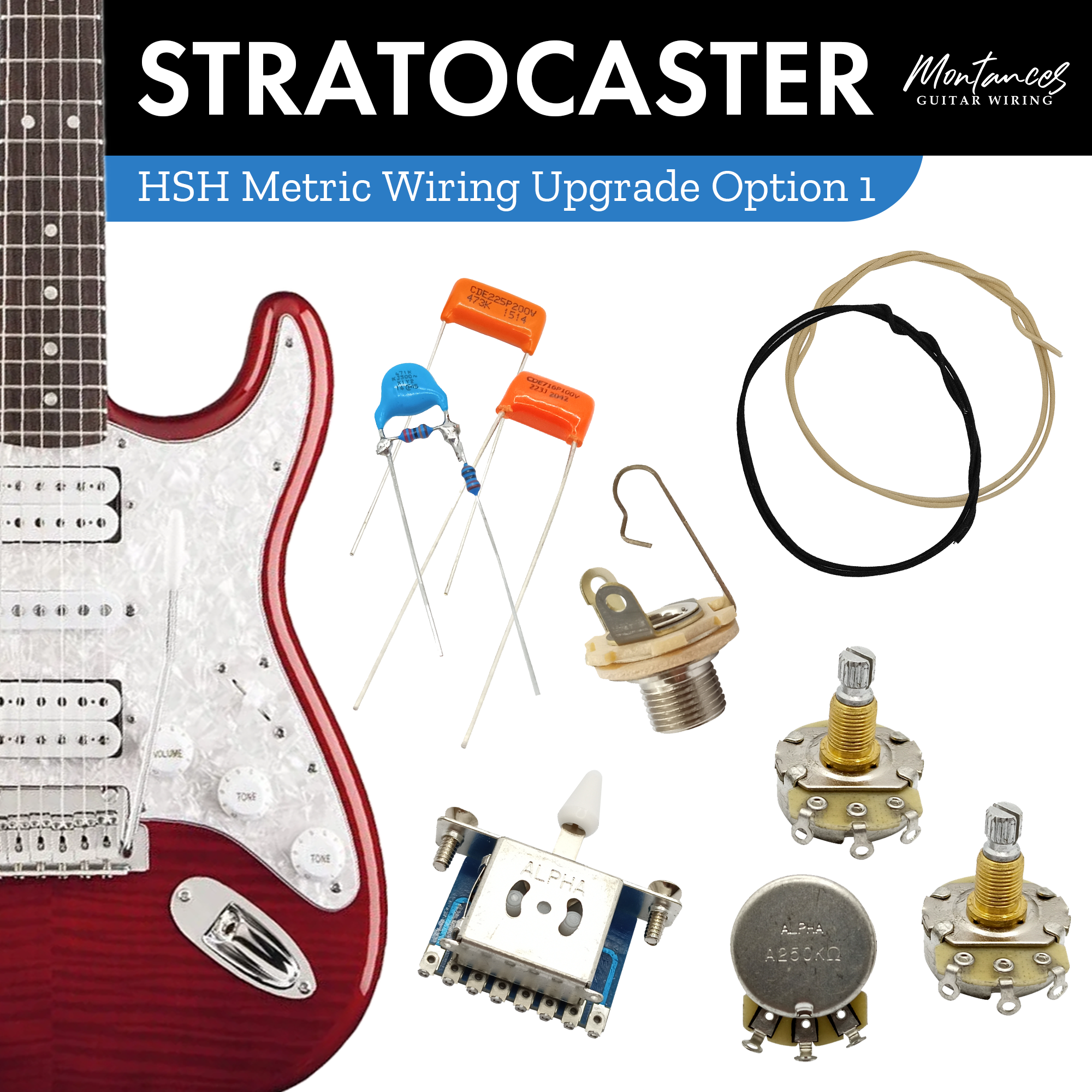

1 Alpha 5-way pickup selector switch

1 Switch tip (white)

3 Alpha Full-size Potentiometers (US specs)*

1 Switchcraft Guitar Output Jack 1or 2 Orange Drop Capacitor

1 Treble Bleed Circuit

2ft Gavitt Vintage PushBack Cloth Wire (white)

2ft Gavitt Vintage PushBack Cloth Wire (black)

Option 2-4

1 Oak Grigsby Superswitch Inward Lugs

1 Switch tip (white)

3 Alpha Full-size Potentiometers (US specs)*

1 Switchcraft Guitar Output Jack 1or 2 Orange Drop Capacitor

1 Treble Bleed Circuit

2ft Gavitt Vintage PushBack Cloth Wire (white)

2ft Gavitt Vintage PushBack Cloth Wire (black)

Optional:

- Bourns Full-Size Potentiometers

- Precision Resistors

- Superswitch Upgrade



Parts included are of the best quality and typically used in high-end guitar builds. All are USA brands.



Notes:

- Potentiometer thread length and thread height is ⅜”. Each potentiometer comes with 2 sets of hex nuts and washers to fit the pickguard installation.

- Switch tip color can be requested (white, black, parchment, and mint). This is subject to availability.

- We use standard values for capacitors and potentiometers although specs can be replaced upon request.

- Please send a message if you want to change something. Otherwise, we will ship standard options.



Each of the components was carefully tested in our laboratory to ensure the best-balanced set that will improve the tone of your guitar. The kit already includes a Treble Bleed Circuit which helps in maintaining a uniform tone at different volume levels.

Your strat deserves a treat!

Please let us know if you have questions or clarification. Feel free to send a message and we will reply asap.

We also do custom wirings. Just let us know your requirements.

Tips: Standard Wiring Diagrams are in the product photo.Learn more about guitar wiring by joining our F.B. group: Guitar Wiring Philippines



**********



We specialize in custom guitar wiring and hand-wound pickups.

Please let us know if you have questions or clarification.

You can also check our website for more wiring guide info.

Feel free to send a message and we will reply asap.

Thank you!
