TESI Switch IDO 10mm Guitar Kill Switch Black

Name: TESI Switch IDO 10mm Guitar Kill Switch Black
Brand: TESI
SKU: TESI-IDO-10-BK
Price: 1396.0 PHP
Availability: InStock

No review yet. Write Review

₱1,745.00 ₱1,396.00

Product type : Switches

Sku : TESI-IDO-10-BK

Units

InStock SOLD OUT

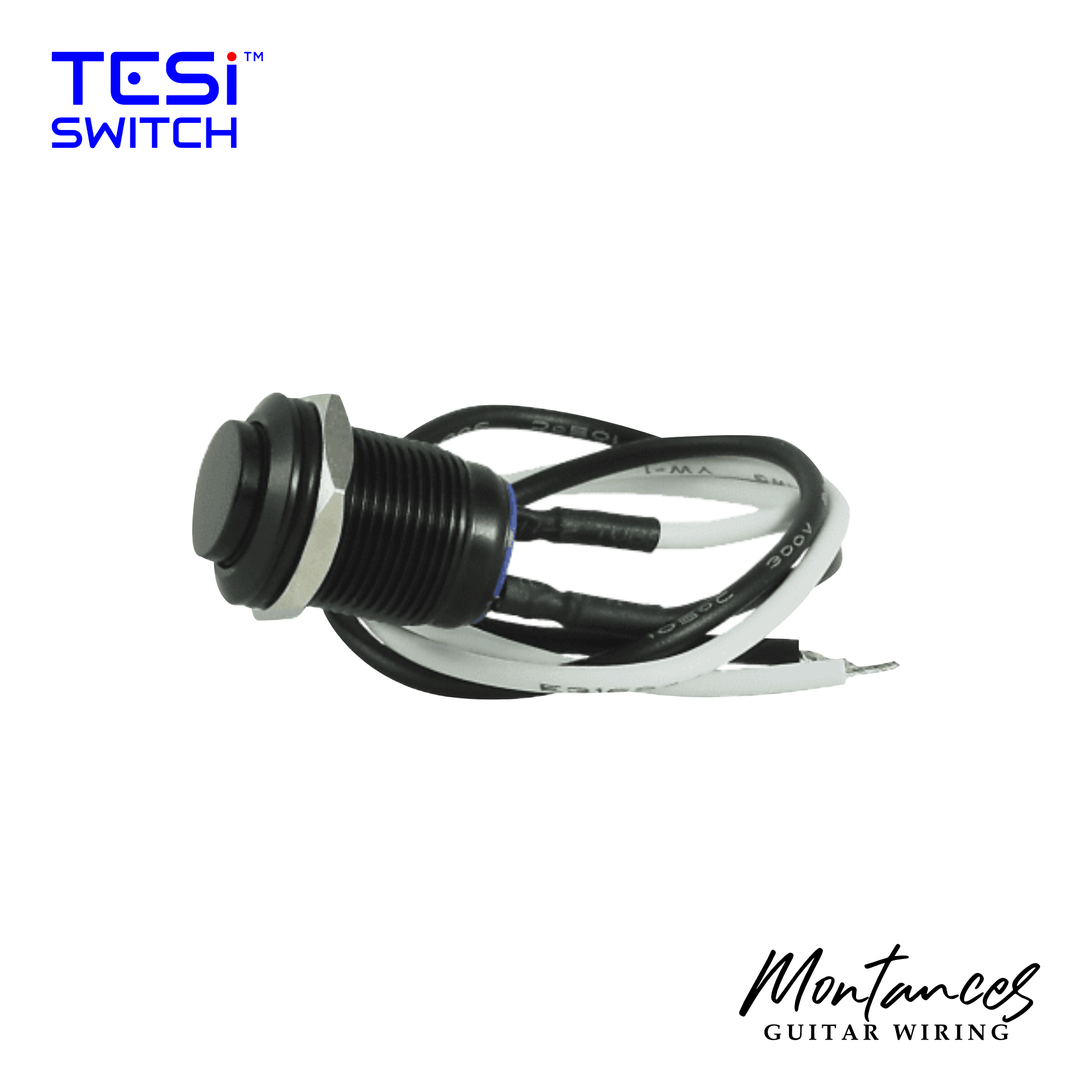

Tesi IDO Super M 10MM Guitar Kill Switch – Momentary Metal Push Button

No-Drill Kill Switch Upgrade for Standard 3/8" Potentiometer Holes

The Tesi IDO Super M 10MM Kill Switch is a compact, professional-grade solution for players who want to add stutter and kill switch effects without major guitar modifications. Sized to fit a standard 3/8” potentiometer hole, this switch installs cleanly with minimal adjustment — especially ideal for import guitars with 9mm holes.

With rugged construction and quick-connect leads, this is one of the easiest and most reliable kill switch upgrades you can install.

Key Features

Fits most guitars with 3/8” potentiometer holes — no drilling required
Ideal for passive and active pickup systems
High-quality stainless steel or plated brass housing
Built to endure over 500,000 cycles
Includes pre-soldered leads for easy installation

Technical Specifications

Type: Momentary Push Button
Operation Type: Normally Open
Housing Material:
• Stainless Steel (Silver finish)
• Plated Brass (Black, Red, or Gold finishes)
Mounting Hole Size: 10mm
Compatible Panel Thickness: 1mm – 6mm
Operation Pressure: ~5N
Operation Stroke: 2.0mm
Contact Resistance: 50 mOhm
Mechanical Life: 500,000 cycles
Switch Rating: 2A @ 36VDC

Package Includes

(1) Tesi IDO 10MM Momentary Guitar Kill Switch
(1) Pre-soldered 8" Ground Wire (Black)
(1) Pre-soldered 8" Hot Wire (Red)
(1) Set of easy-to-follow wiring instructions

Installation Notes

Compatible with standard USA pot holes (10mm = 3/8”)
Slight widening may be required for guitars with 9mm pot holes (common on imports)
Designed for quick installation with minimal modification
No need to alter pickguard or body if reverting to original setup

Warranty and Support

1-Year Limited Warranty
Each unit tested prior to shipping

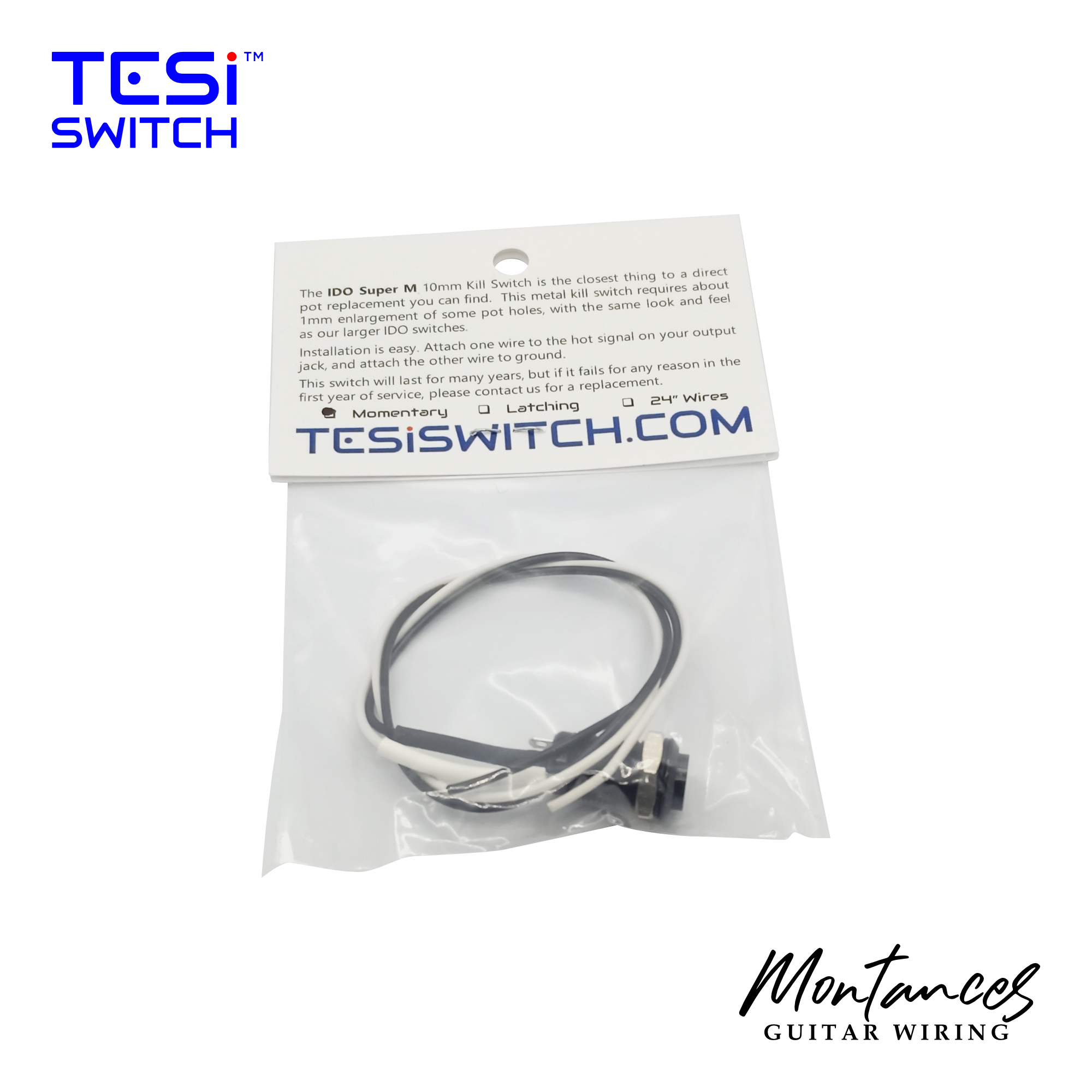

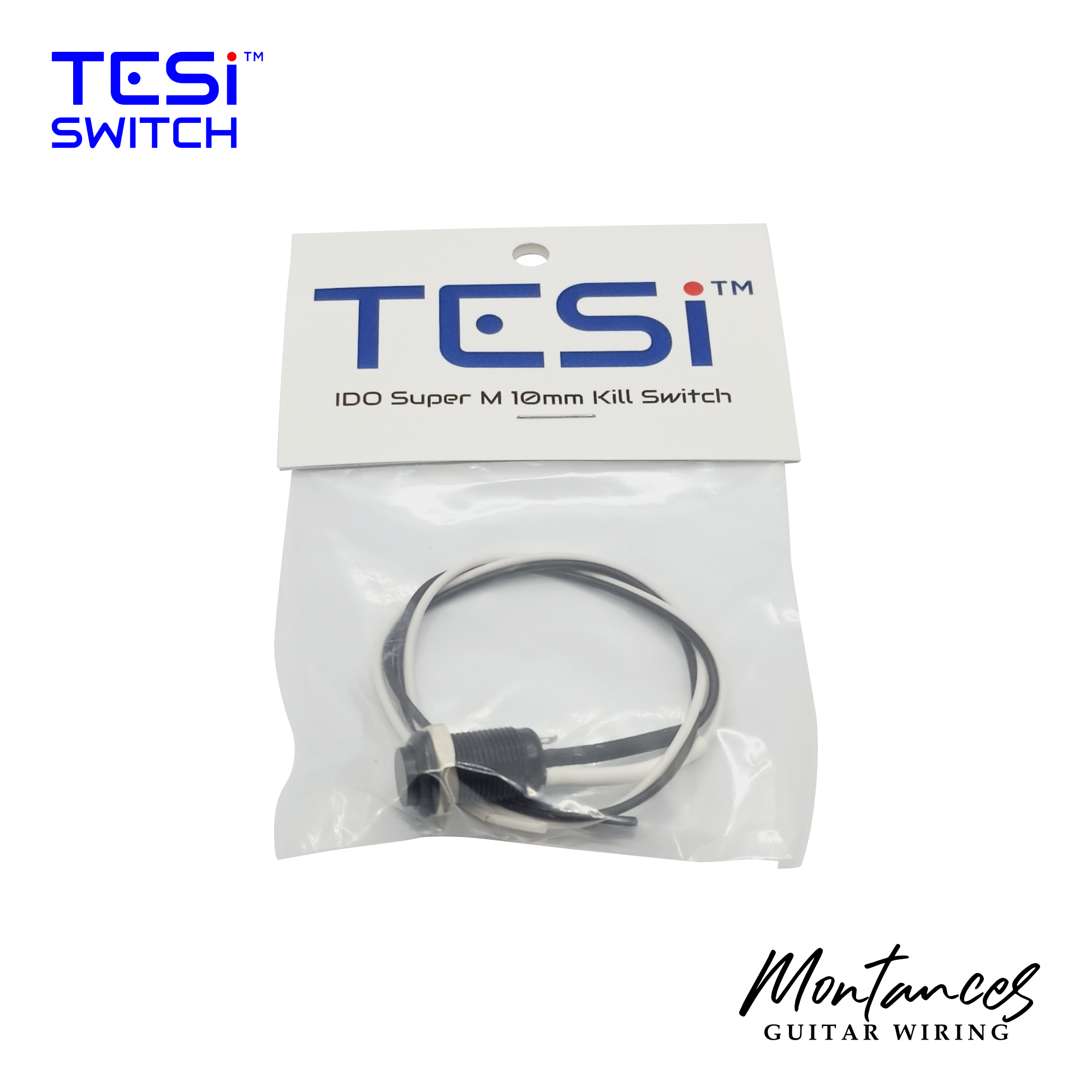

Packaged in a protective vinyl zip bag with installation guide
Free support for wiring and installation questions

Upgrade your guitar with a reliable, easy-to-install kill switch that delivers on performance and longevity.
📩 Message us for color availability or installation help.

Thank you for choosing Montances Guitar Wiring.
