TESI Switch POCO 12MM LED Ring Guitar Kill Switch - Black/Red

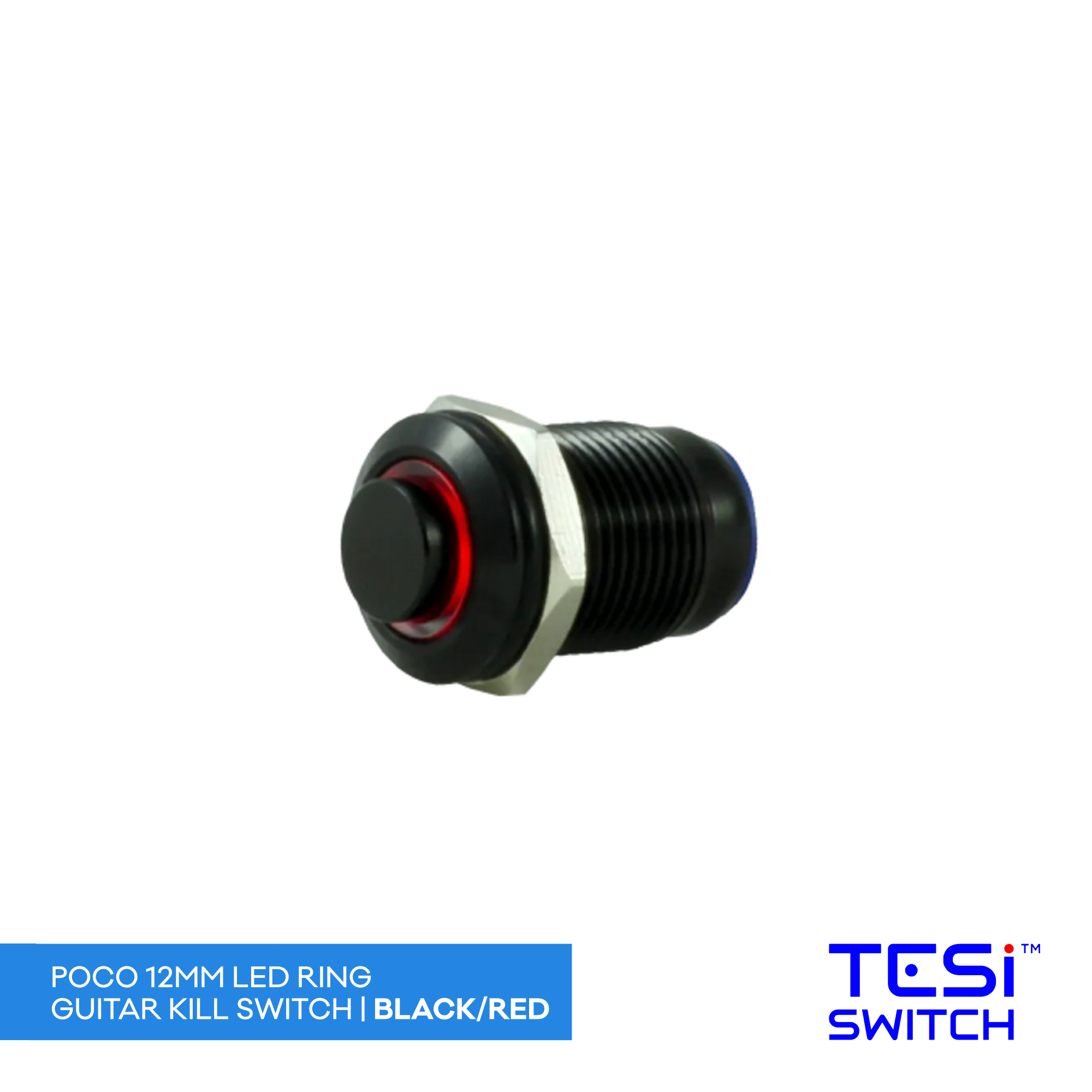

Tesi POCO 12MM LED Guitar Kill Switch – Black (Choose Your LED Color)
Compact. Sleek. Reliable. A Kill Switch with Style and Illumination.
Looking for a responsive kill switch with built-in LED? The Tesi POCO 12MM LED Kill Switch in Black combines fast performance with visual appeal. Designed with a plated brass body and equipped with long-lasting LED illumination, this momentary switch fits tight control cavities while delivering over 500,000 activation cycles.
Whether you’re using passive or active pickups, the POCO is ready for action. Choose your LED color to match your guitar’s vibe and stand out on stage.
Key Features
-
Momentary switch for kill/stutter effects
-
Durable plated brass in a sleek black finish
-
Built-in LED for visual feedback (color selectable)
-
Works with active or passive electronics
-
Smooth response with light press feel
Technical Specifications
-
Operation Type: Momentary, Normally Open
-
Mounting Hole Size: 12mm
-
Compatible Panel Thickness: 1mm–6mm
-
Operation Pressure: ~5N
-
Operation Stroke: 2.5mm
-
Switch Rating: 2A @ 36VDC
-
Contact Resistance: 50 mOhm
-
Mechanical Life: 500,000 cycles
-
Housing Material: Plated Brass
LED Specifications
-
Rated Voltage: 6V
-
Power Draw: 15mA
-
LED Life: 40,000 hours
-
Power Source: Compatible with 9V and 18V battery systems
-
Includes resistors for flexible LED wiring
What’s in the Box
-
(1) Tesi POCO 12MM Momentary Guitar Kill Switch – Black
-
(1) Quick-Connect Wiring Bundle:
• 8" Ground Wire (Black/Black)
• 8" Hot Wire (Black/White)
• 8" 9V Battery Harness with 330Ω Resistor
• On/Off Rocker Switch -
(1) Extra 270Ω Resistor for custom setups
-
(1) Set of easy-to-follow wiring instructions
-
(2) Tesi Picks
Installation Tips
-
Basic soldering required
-
Fits slightly larger than a standard pot hole (12mm vs. 9mm)
-
Can be reversed with minimal visual impact
-
LED works without rocker switch if used with stereo jack and active pickups
Warranty and Support
-
1-Year Limited Warranty
-
Each switch tested before packaging
-
Packaged securely in foam for safe shipping
-
Need help? We’ll guide you through installation or compatibility questions
Customize your kill switch with your choice of LED color.
Make your performance stand out with Tesi POCO.
📩 Send us a message for questions or LED color preferences.
Thank you for choosing Montances Guitar Wiring.
