TESI Switch DITO Arcade Button Guitar Kill Switch Solid Black

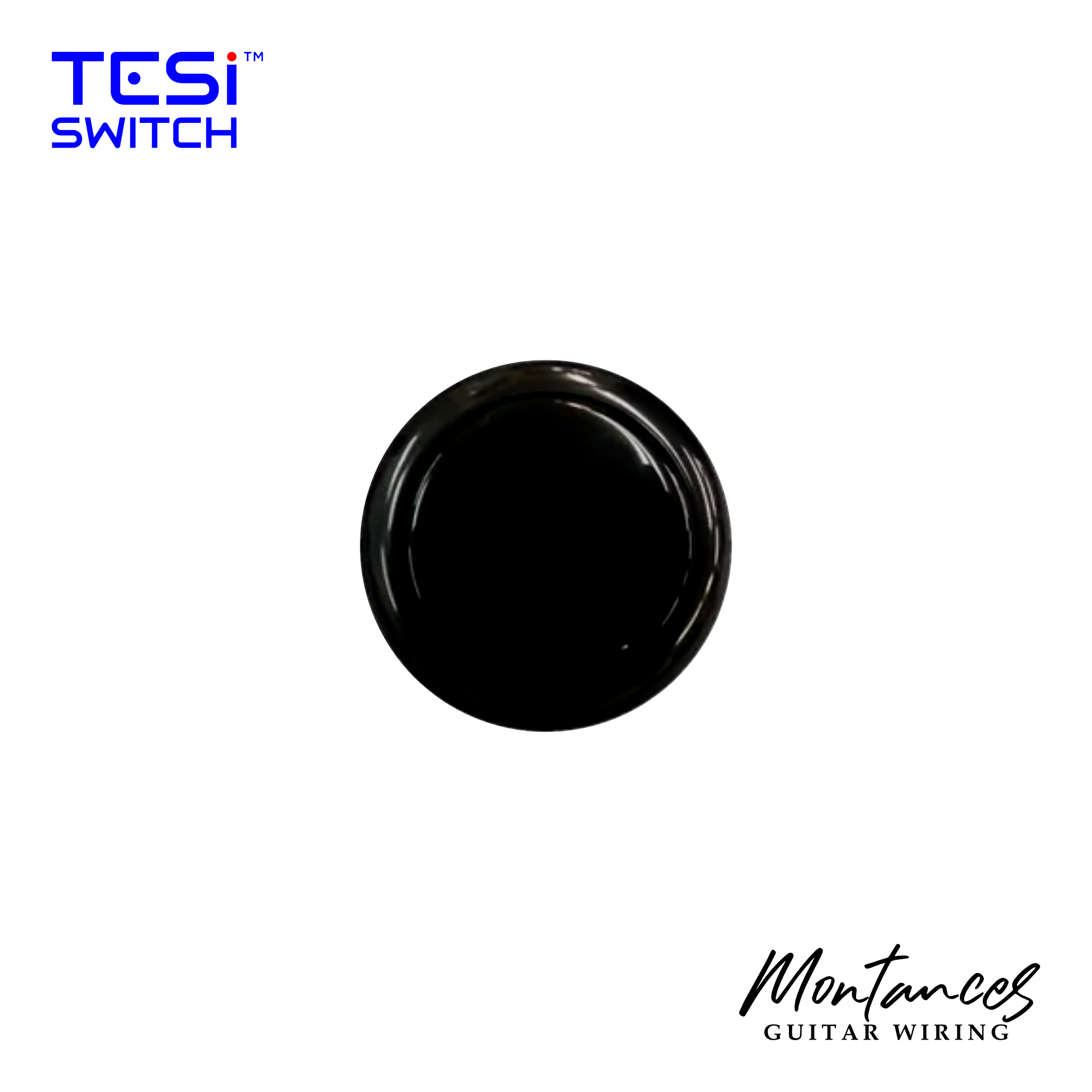

Tesi DITO 24mm Guitar Kill Switch – Black (Snap-In Mount)
Stealth Look. Lightning Fast. Arcade-Grade Durability.
Add a bold, professional touch to your guitar with the Tesi DITO Black 24mm Kill Switch. Designed for ultra-fast stutter effects and flawless reliability, this arcade-style push button switch is built to take a beating—up to 10 million activations. Its all-black design pairs perfectly with modern or minimalist guitar builds.
This snap-in version fits thin mounting surfaces like pickguards or guitar tops with a thickness of 1mm–4mm.
Need the screw-in version for thicker tops?
[Click here to view the threaded version.]
Key Features
-
Sleek Black Finish – Matches stealth or modern guitar aesthetics
-
Ultra-Responsive Spring – Lightest in the Tesi lineup for rapid-fire effects
-
Arcade-Grade Switch – Built for 10 million cycles of use
-
Pre-wired for Easy DIY Install – Works with passive or active pickups
Technical Specifications
-
Type: Momentary Push Button (Kill Switch)
-
Color: Black
-
Operation: Normally Open (correct wiring for kill switch behavior)
-
Mounting Hole Size: 24mm
-
Panel Thickness Support: 1mm – 4mm (snap-in type)
-
Housing: Durable plastic construction
-
Stroke Distance: 2.0 mm
-
Operating Force: 2n – 3n
-
Contact Resistance: 50 mOhm
-
Switch Rating: 0.5A @ 9VDC
-
Mechanical Life: 10,000,000+ cycles
Package Includes
-

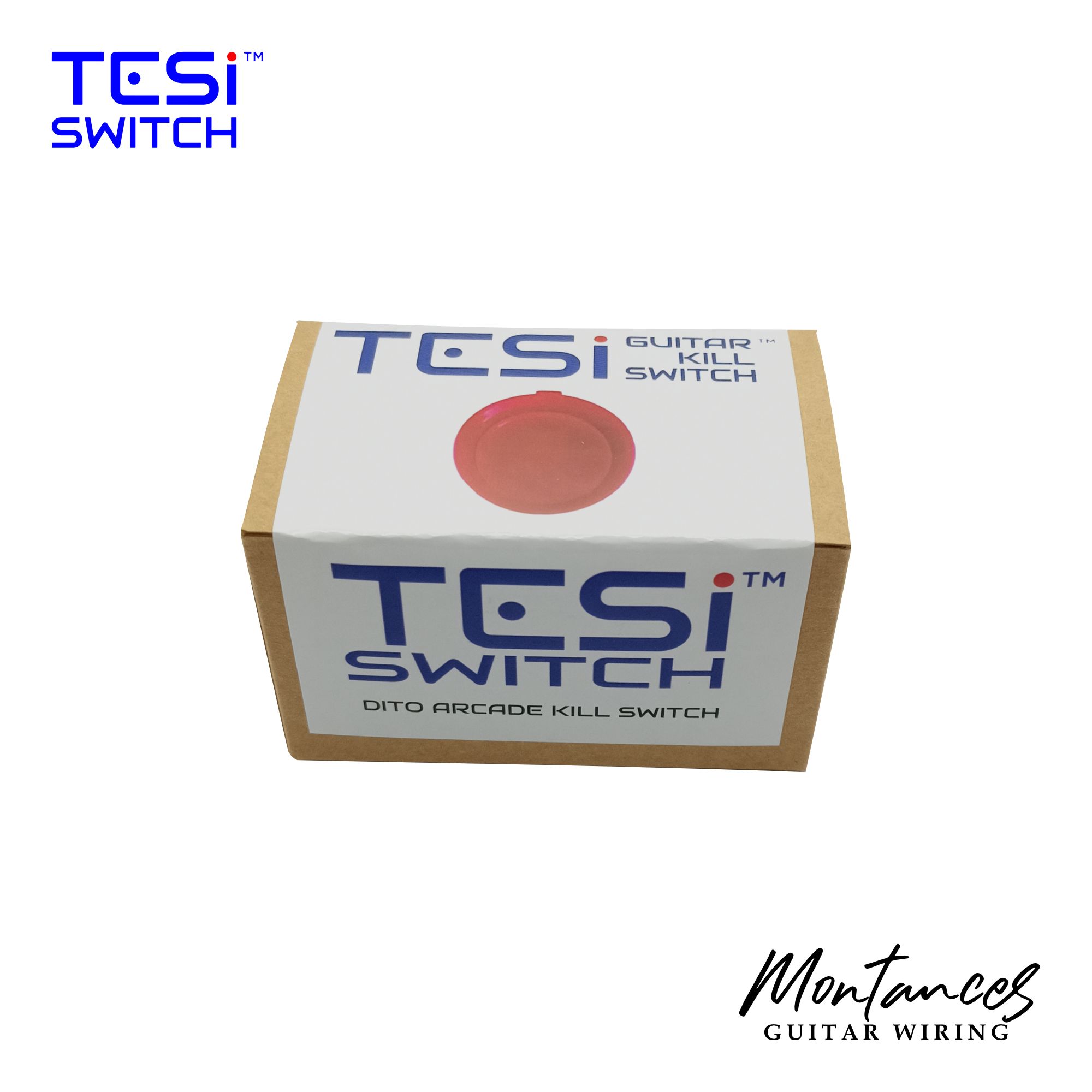

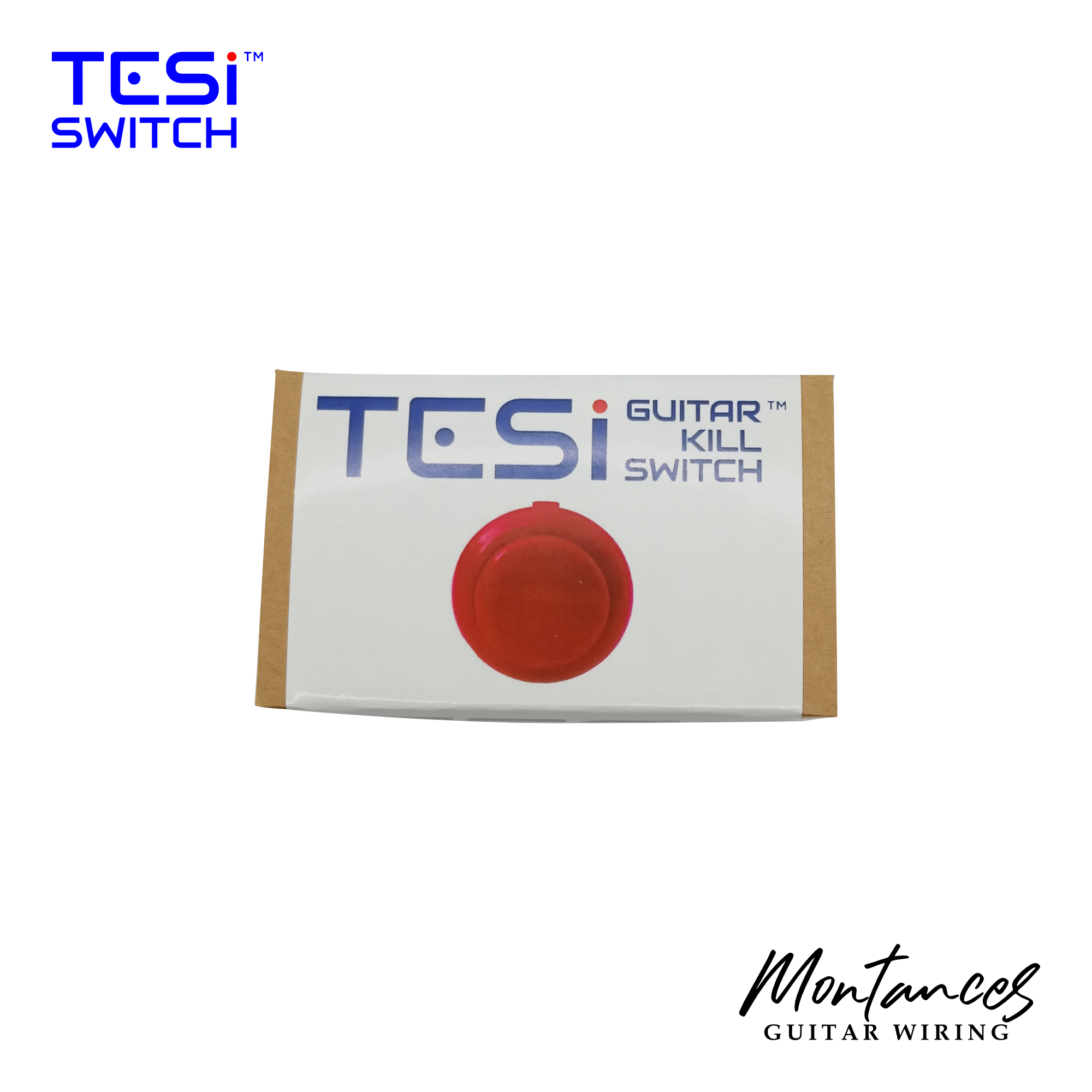

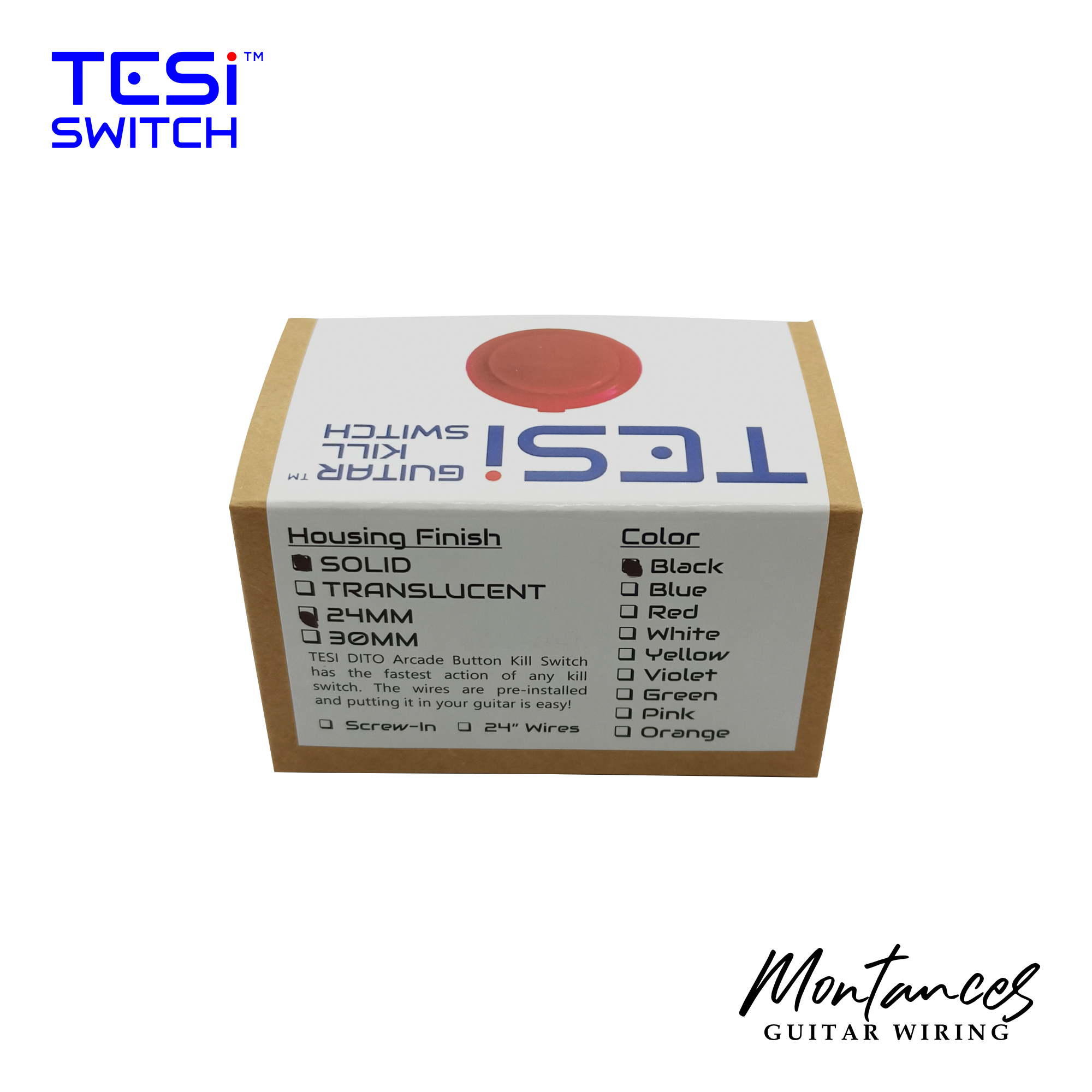

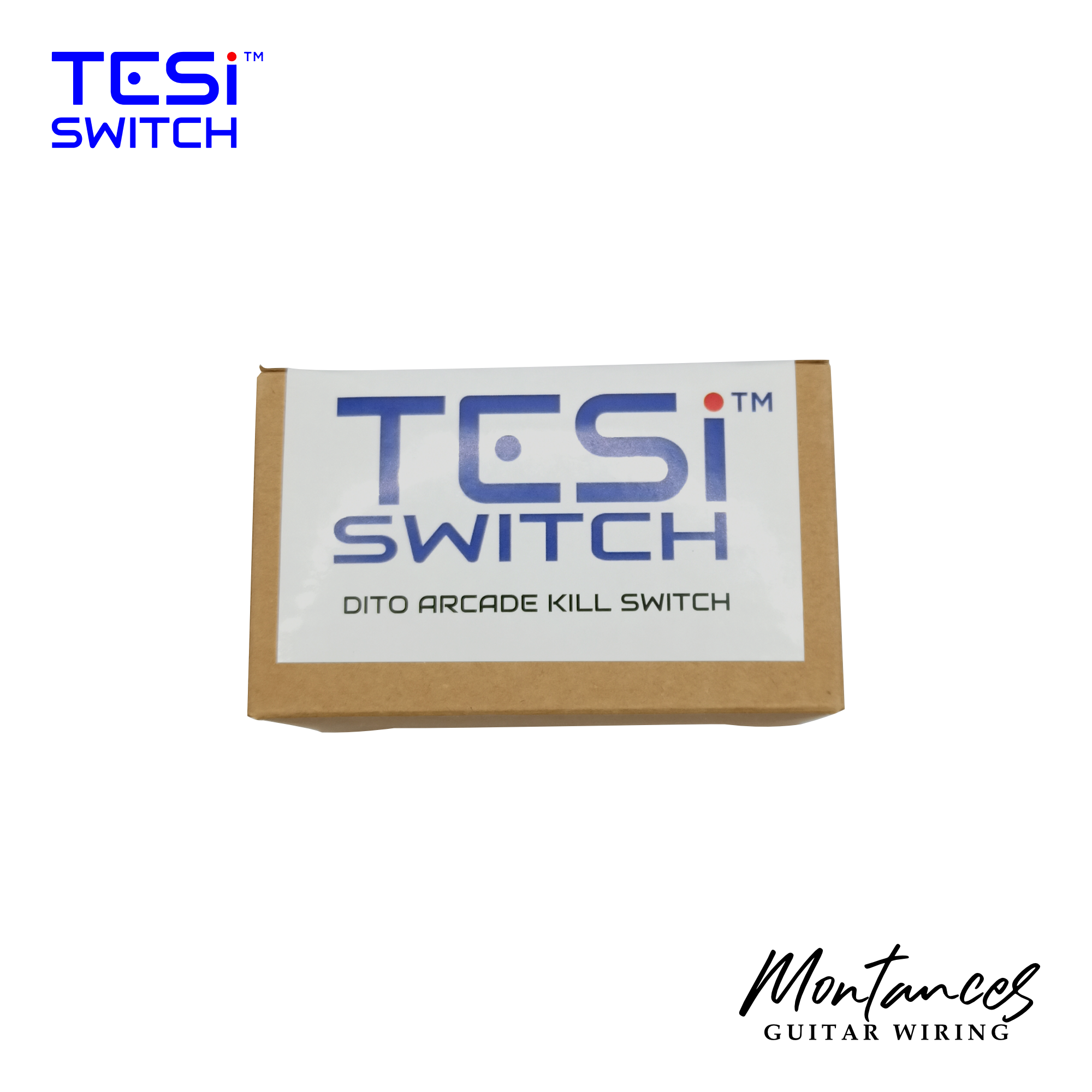

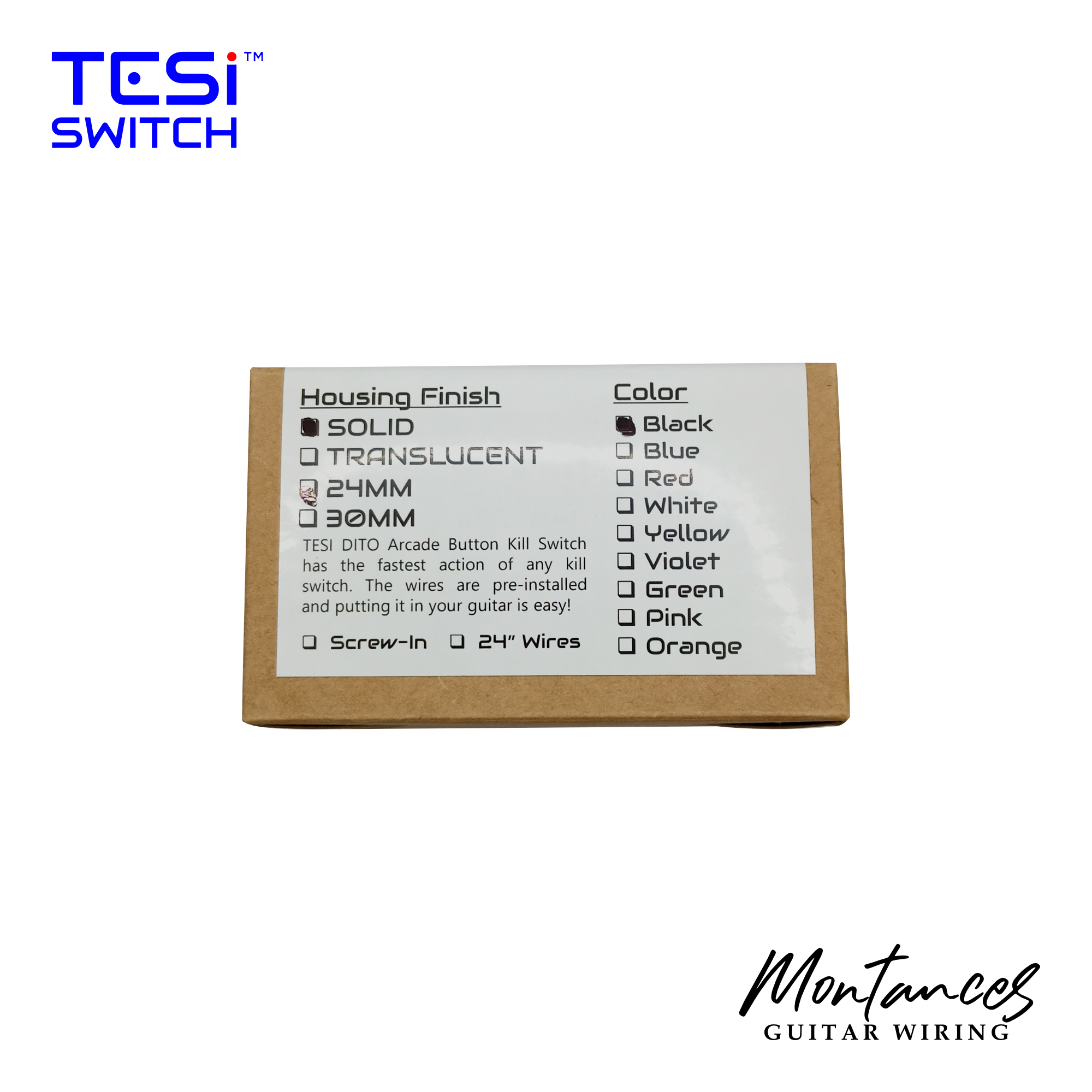

(1) Black Tesi DITO 24mm Kill Switch (Snap-In Mount)
-
(1) Quick-Connect Wiring Bundle:
• 8" White Hot Wire
• 8" Black Ground Wire -
(1) Easy-to-follow wiring instruction sheet
-
(2) Free Tesi Guitar Picks
Why Choose Tesi from Montances Guitar Wiring?
-
Pre-tested for reliability before shipping
-
Quick-connect wiring makes DIY installation simple
-
Compatible with all pickup types
-
Backed by a 1-Year Warranty for peace of mind
Installation Notes
The switch is designed for snap-in mounting. If you're comfortable with a soldering iron, you can wire this yourself. Otherwise, ask a trusted guitar tech for help. Works with both active and passive pickups.
Have a question? Send us a message and we’ll get back to you right away.
Thanks for choosing Montances Guitar Wiring.
