TESI Switch IDO 10mm Guitar Kill Switch Stainless Steel

Name: TESI Switch IDO 10mm Guitar Kill Switch Stainless Steel
Brand: TESI
SKU: TESI-IDO-10-SS
Price: 907.0 PHP
Availability: InStock

No review yet. Write Review

₱1,134.00 ₱907.00

Product type : Switches

Sku : TESI-IDO-10-SS

Units

InStock SOLD OUT

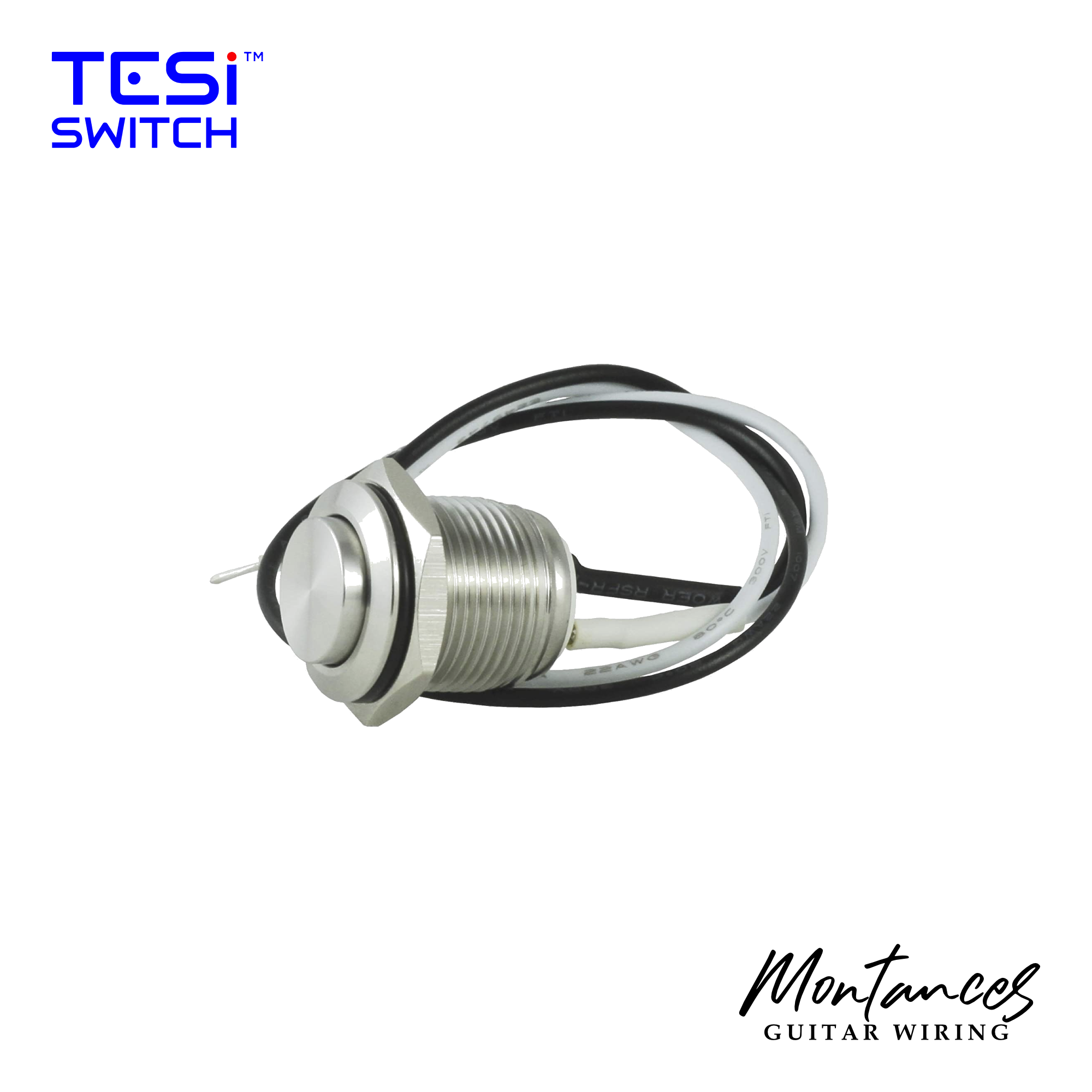

Tesi IDO Super M 10MM Guitar Kill Switch – Momentary Push Button (Multiple Colors)

Easy Installation with Pro-Level Performance – Fits Standard Potentiometer Holes

The Tesi IDO Super M 10MM Kill Switch is designed for guitarists who want to add a professional-grade kill switch without major modifications. Sized to fit most standard 3/8” potentiometer holes, this switch allows you to upgrade without drilling new holes — perfect for modern and vintage guitars alike.

Whether you're running passive or active electronics, this switch is plug-and-play ready and built for stage performance.

Key Features

Fits standard 3/8” potentiometer holes – minimal to no modification required
Durable metal construction in various finish options
Perfect for stutter effects, silent mutes, and kill switch tricks
Works with both passive and active pickup setups
Easy to install with soldered leads pre-attached

Technical Specifications

Type: Momentary Push Button
Operation: Normally Open
Housing Material:
• Stainless Steel (Silver version)
• Plated Brass (Black, Red, or Gold versions)
Mounting Hole Size: 10mm
Compatible Panel Thickness: 1mm – 6mm
Operation Pressure: ~5N
Operation Stroke: 2.0mm
Contact Resistance: 50 mOhm
Mechanical Life: 500,000 cycles
Switch Rating: 2A @ 36VDC

Package Includes

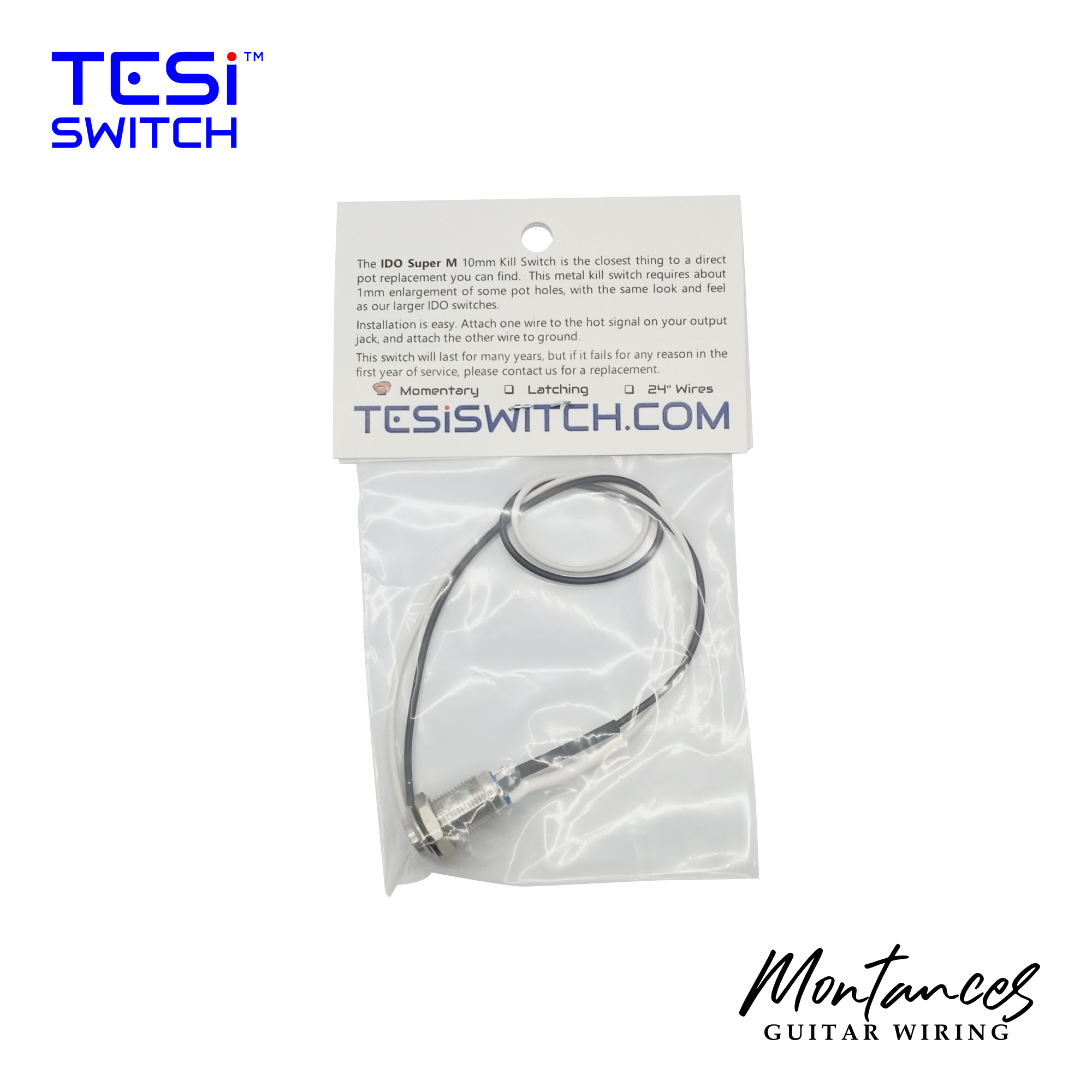

(1) Tesi IDO Super M 10MM Momentary Kill Switch
(1) 8" Ground Wire (Black – pre-attached)
(1) 8" Hot Wire (Red – pre-attached)
(1) Set of easy-to-follow wiring instructions

Installation Notes

No drilling required for guitars with standard 3/8” pot holes
Slight hole adjustment may be needed for 9mm pots (common in import guitars)
Switch is pre-wired for fast and easy soldering
If you ever revert to your original setup, no visible damage or new holes

Warranty and Support

1-Year Limited Warranty
Each switch tested before packaging
Packaged with instructions in a zip bag
Friendly customer support for installation guidance

Get professional-grade performance in a compact form. The Tesi IDO Super M is the kill switch upgrade your guitar deserves.
📩 Message us for color options or compatibility questions.

Thank you for choosing Montances Guitar Wiring.
