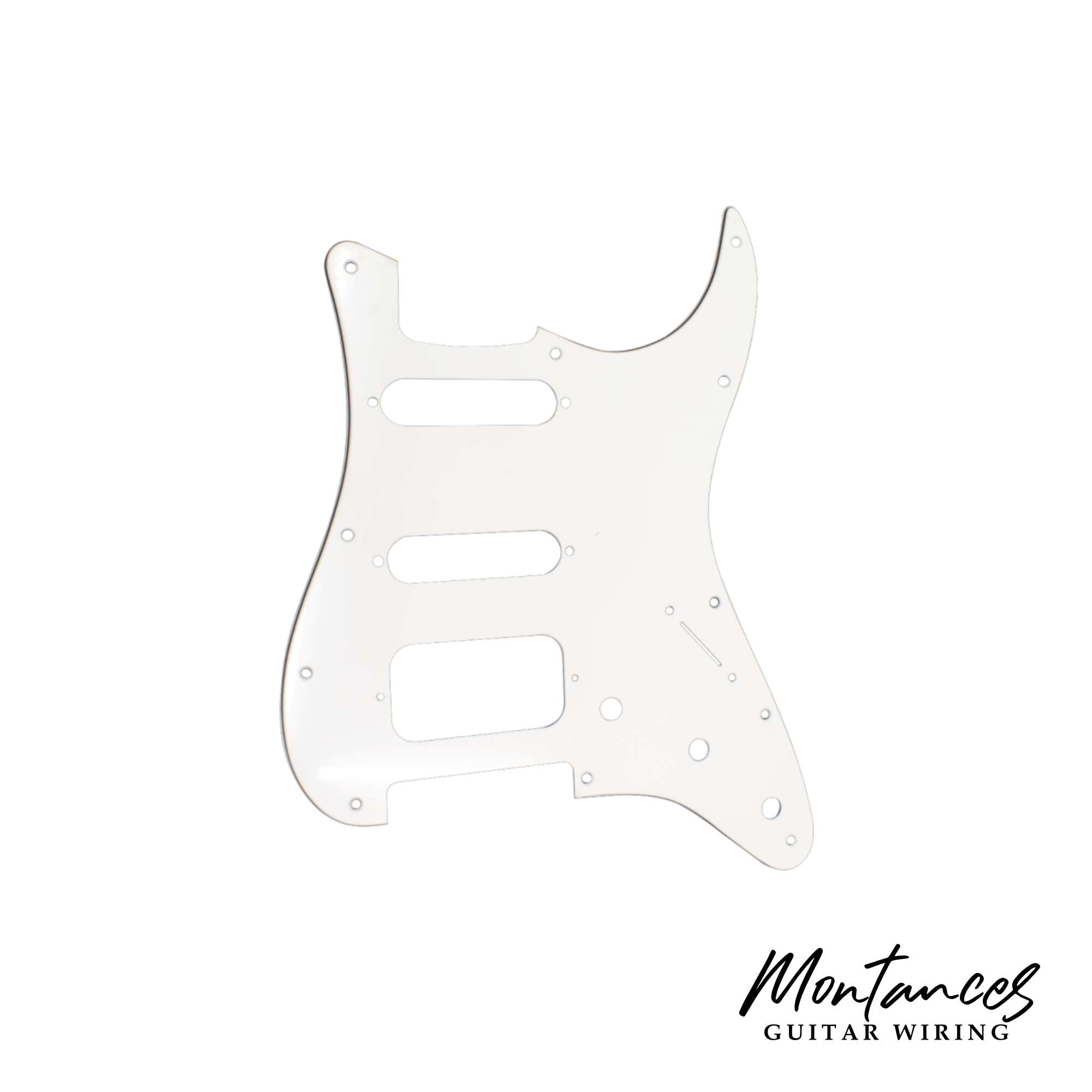

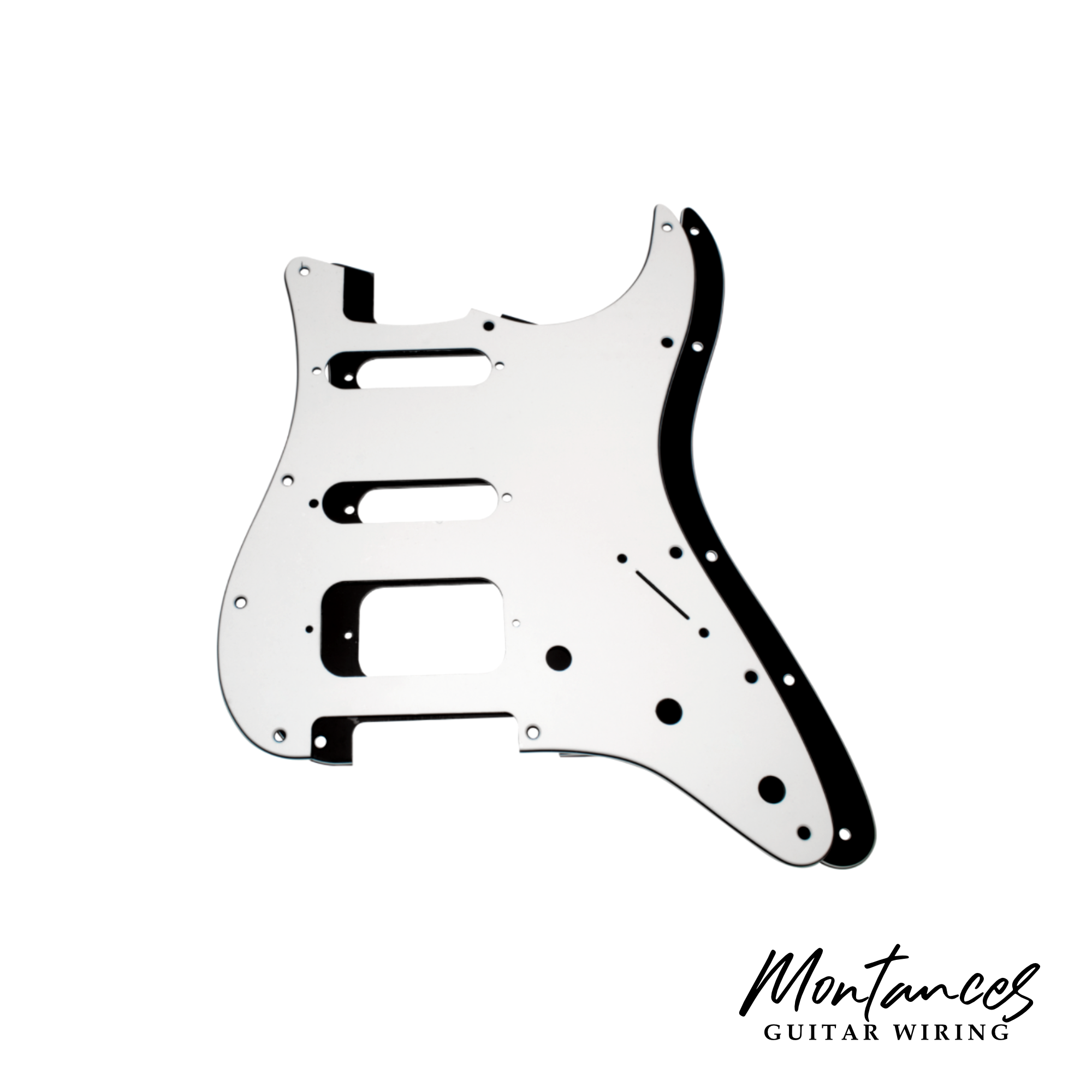

Pickguard for American Deluxe Strat®, HSS, 11 Hole, 3-Ply
(Please Read the Details)

Replacement pickguard for Fender® American Deluxe Strat models. These pickguards have eleven mounting holes and feature cutouts for two single-coil pickups and a humbucker in the bridge position. The humbucker cutout has rounded corners for a flush fit with uncovered pickups. Fits most American Deluxe Stratocasters® that are routed for a humbucker bridge pickup.

Features:
3-ply / 2.5mm thickness
11 mounting holes
Shielding over electronics cavity
Fits ⅜" bushing pots

Colors available:
white 3ply
black 3ply

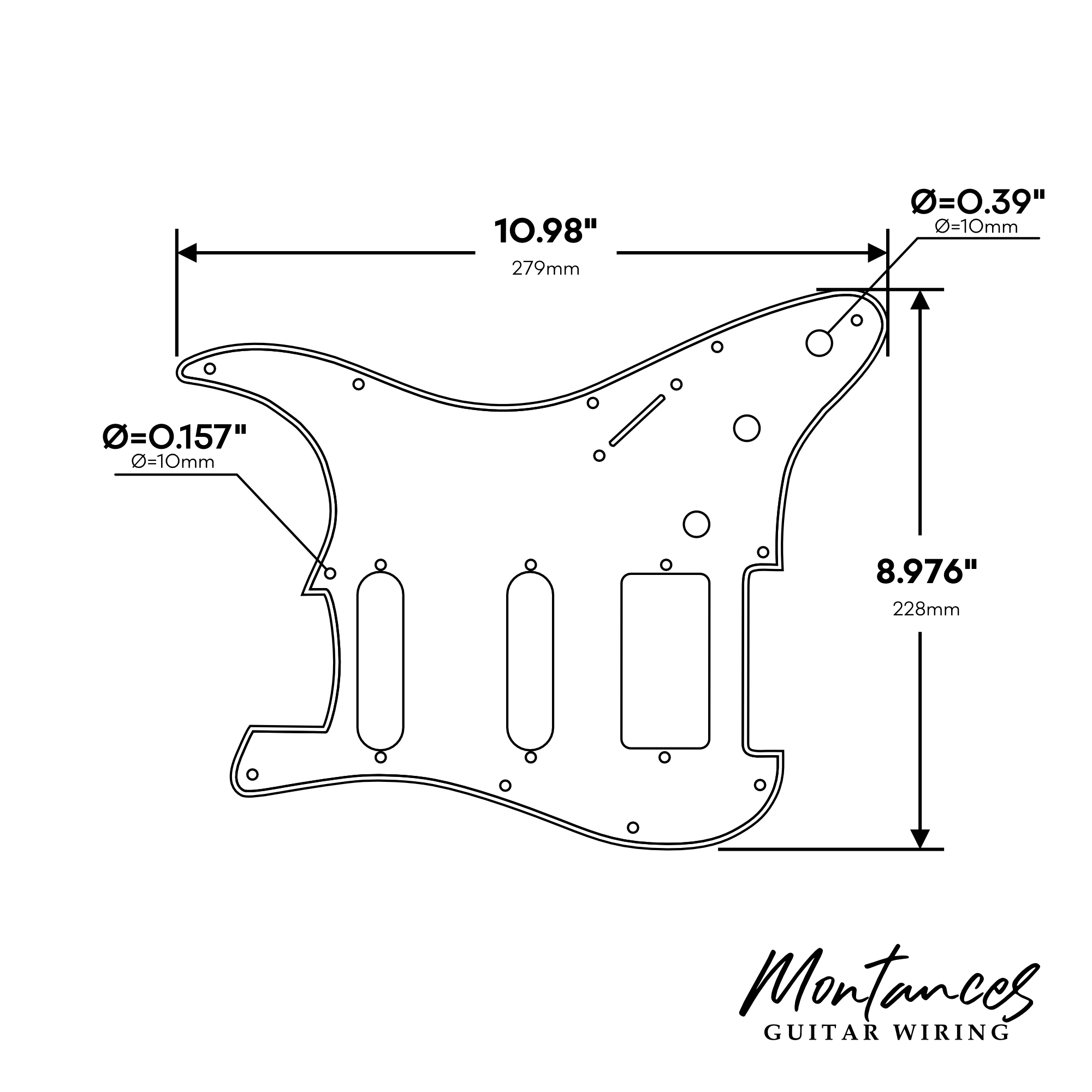

Measurement and Specs:
Length (longest) 279mm
Mounting Holes Diameters 4mm
Potentiometer Mounting Holes Diameters 10mm
Thickness 2.5mm
Width (widest) 228mm

Please send a message before placing your order.
We specialize in custom guitar wiring and hand-wound pickups.

Please let us know if you have questions or clarification.
You can also check our website for more wiring guide info.
Feel free to send a message and we will reply asap.
Thank you!
