Momentary Footswitch DPDT Solder Lugs

Name: Momentary Footswitch DPDT Solder Lugs
Brand: Montances Guitar Wiring
SKU: FS-DPDT-MOMENT-LUG
Price: 420.0 PHP
Availability: InStock

No review yet. Write Review

₱525.00 ₱420.00

Product type : Footswitch

Sku : FS-DPDT-MOMENT-LUG

Units

InStock SOLD OUT

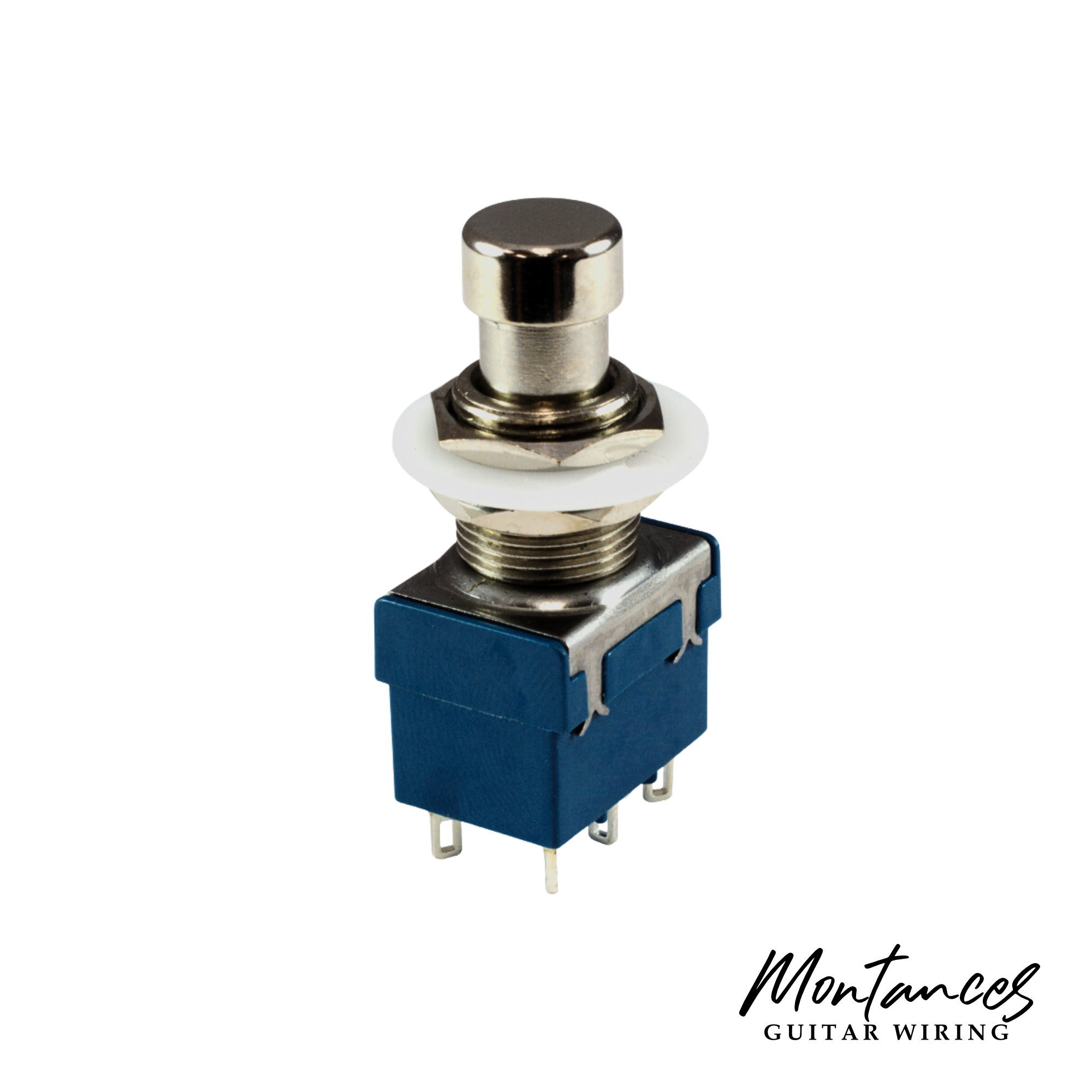

Momentary Footswitch DPDT Solder Lugs

Reliable and Durable DPDT Momentary Footswitch for Your Pedal Builds

Upgrade your pedal builds with our high-quality DPDT momentary footswitch, designed for long-lasting performance. With its robust construction and high cycle rating, this footswitch is perfect for demanding applications.

Key Features:

DPDT Momentary Action: Provides reliable momentary switching for various applications.
High Current Ratings: AC125V/4A and AC250V/2A, suitable for a wide range of electrical loads.
Durable Construction: Rated for 50,000 make-and-break cycles at full load, ensuring long-lasting use.

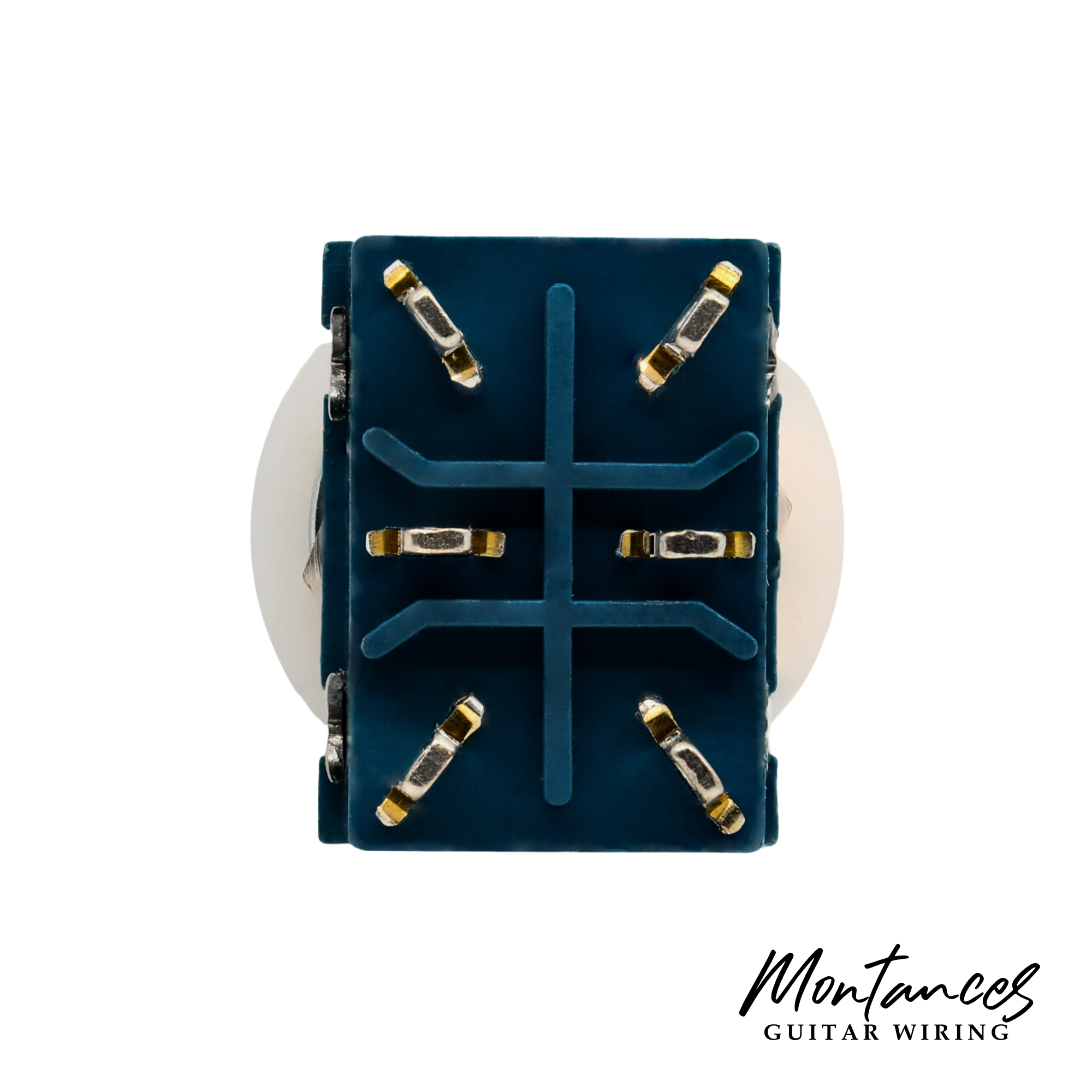

Solder Lugs/Tabs: Simplifies the wiring process with secure and easy connections.

Specifications:

Body Dimensions:

Depth: 0.61 in.
Width: 0.559 in.

Bushing Length: 0.465 in.
Item Height: 1.61 in.
Thread Dimensions:

Major Diameter: 12 mm
Pitch: 0.75 mm

Electrical Ratings:

@ 125 VAC: 4 A
@ 250 VAC: 2 A

Packaging Information:

Dimensions: 1.8 in. × 1 in. × 0.8 in.
Weight: 0.0397 lbs.

Additional Information:

Also available in a PC pin terminal version for different wiring preferences.

Why Choose Our DPDT Momentary Footswitch?

Our DPDT momentary footswitch is built to withstand the rigors of frequent use, making it ideal for both hobbyists and professional pedal builders. Its high current ratings and durable design ensure reliable performance in any application.
