Momentary Footswitch DPDT PC Pins Terminals

High-Performance DPDT Momentary Footswitch with PC Terminals

Enhance your pedal builds with our DPDT momentary On-(On) footswitch featuring PC terminals. This black footswitch is designed for easy PCB integration and offers reliable performance with high current ratings. Ideal for a variety of applications, this switch ensures durability and consistent operation.

Key Features:

  • DPDT Momentary Action: On-(On) switching mechanism for versatile use.

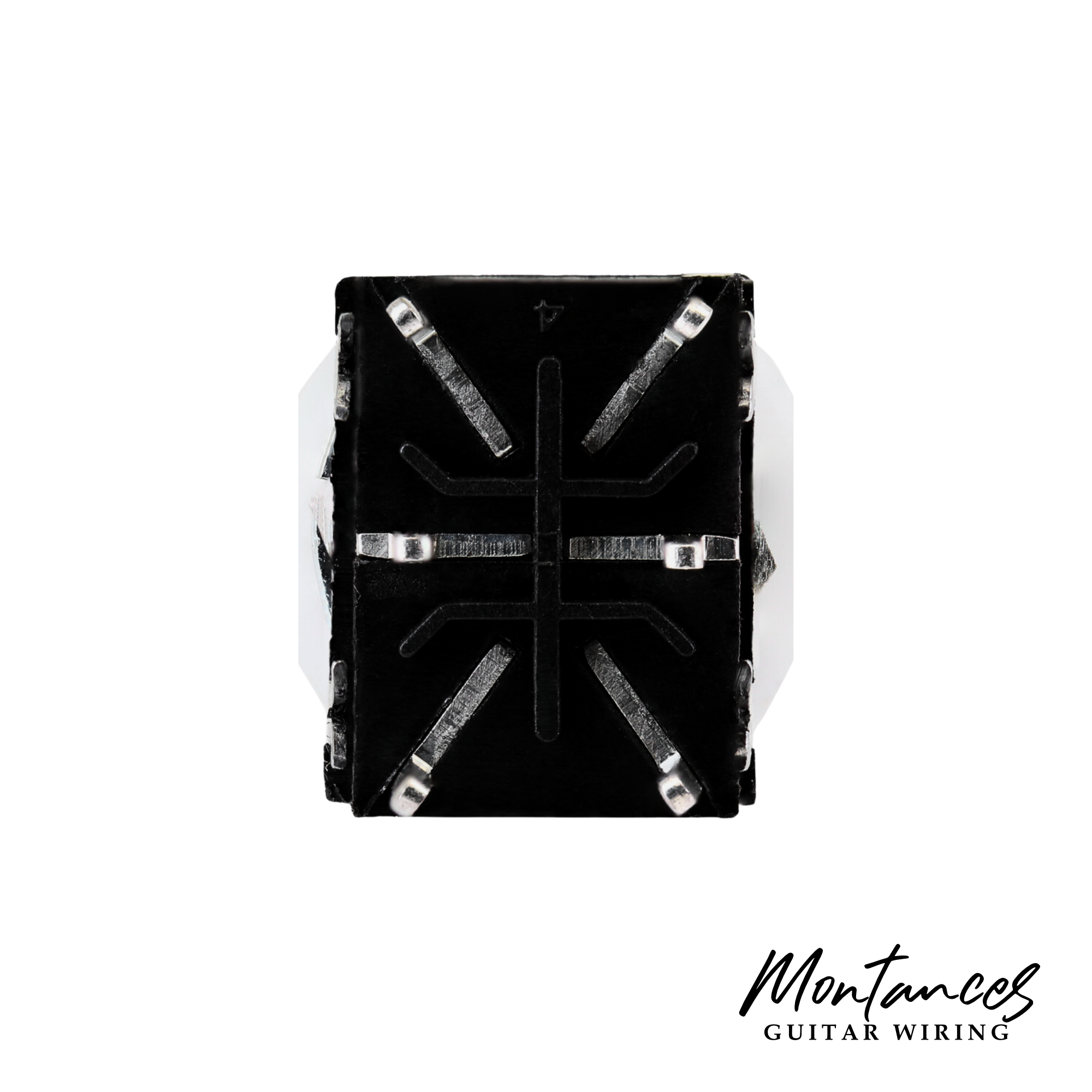

  • PC Terminals: Easy integration with PCB for streamlined wiring.

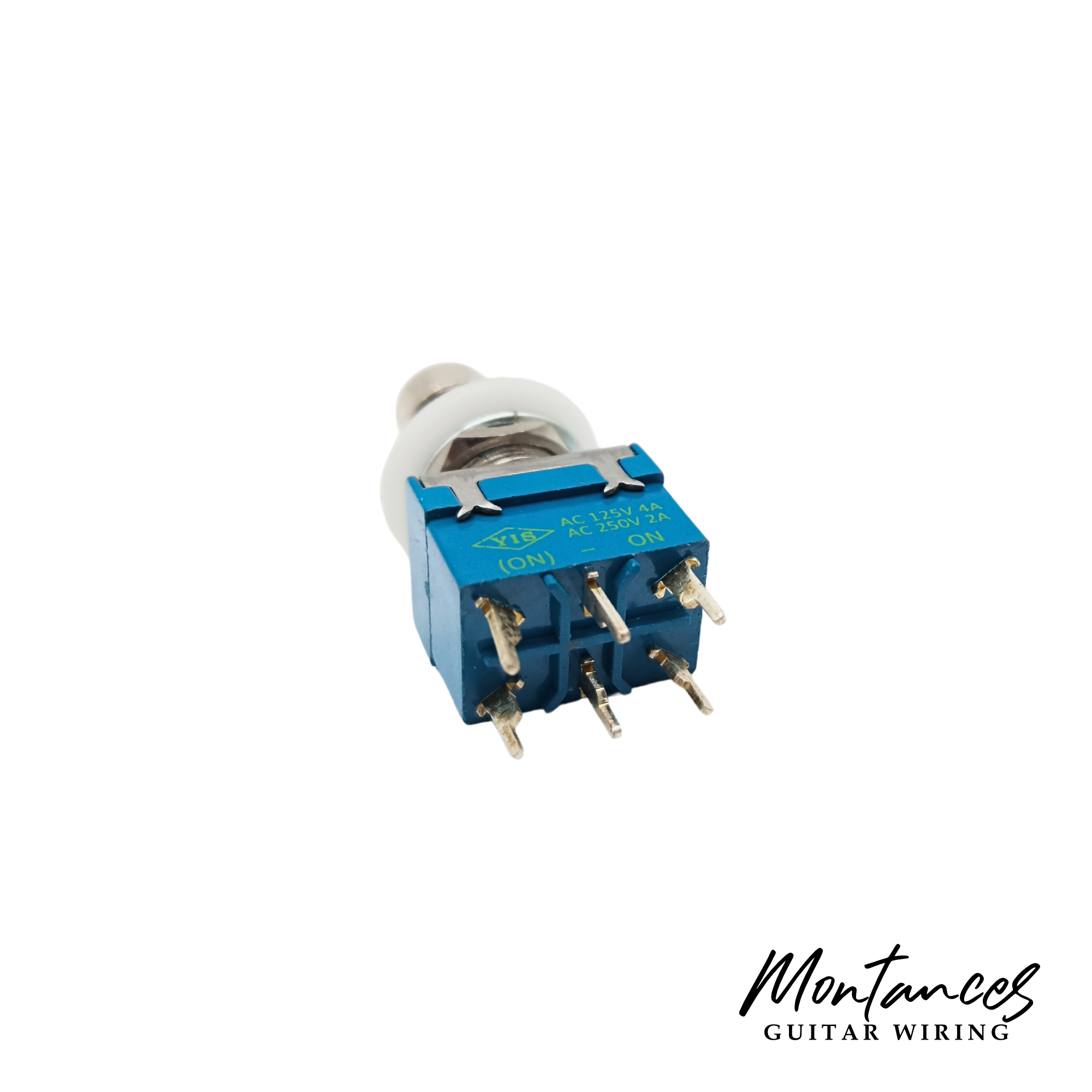

  • High Current Ratings: Suitable for AC125V 4A and AC250V 2A applications.

  • Durable Construction: Rated for 20,000 make-and-break cycles at full load.

Specifications:

  • Body Dimensions:

    • Depth: 0.713 in.

    • Width: 0.555 in.

  • Bushing Length: 0.465 in.

  • Chassis Hole Diameter: 0.5 in.

  • Contact Resistance: 50 mΩ max

  • Electrical Life: 20,000 cycles

  • Insulation Resistance: 100MΩ minimum @ 500 V

  • Item Height: 1.878 in.

  • Thread Dimensions:

    • Major Diameter: 12 mm

    • Pitch: 0.75 mm

  • Operating Temperature: -20°C to 65°C

  • Electrical Ratings:

    • @ 125 VAC: 4 A

    • @ 250 VAC: 2 A

Packaging Information:

  • Dimensions: 1.9 in. × 0.8 in. × 0.8 in.

  • Weight: 0.0441 lbs.

Additional Information:

  • Also available in a solder lug version for different wiring preferences.

Why Choose Our DPDT Momentary Footswitch?

Designed for reliability and ease of use, our DPDT momentary footswitch with PC terminals is perfect for PCB-based projects. With high current ratings and robust construction, this switch is built to handle demanding applications while maintaining long-lasting performance.
