Unlock Superior Performance with the GØRVA Mechano Soft-Touch Footswitch

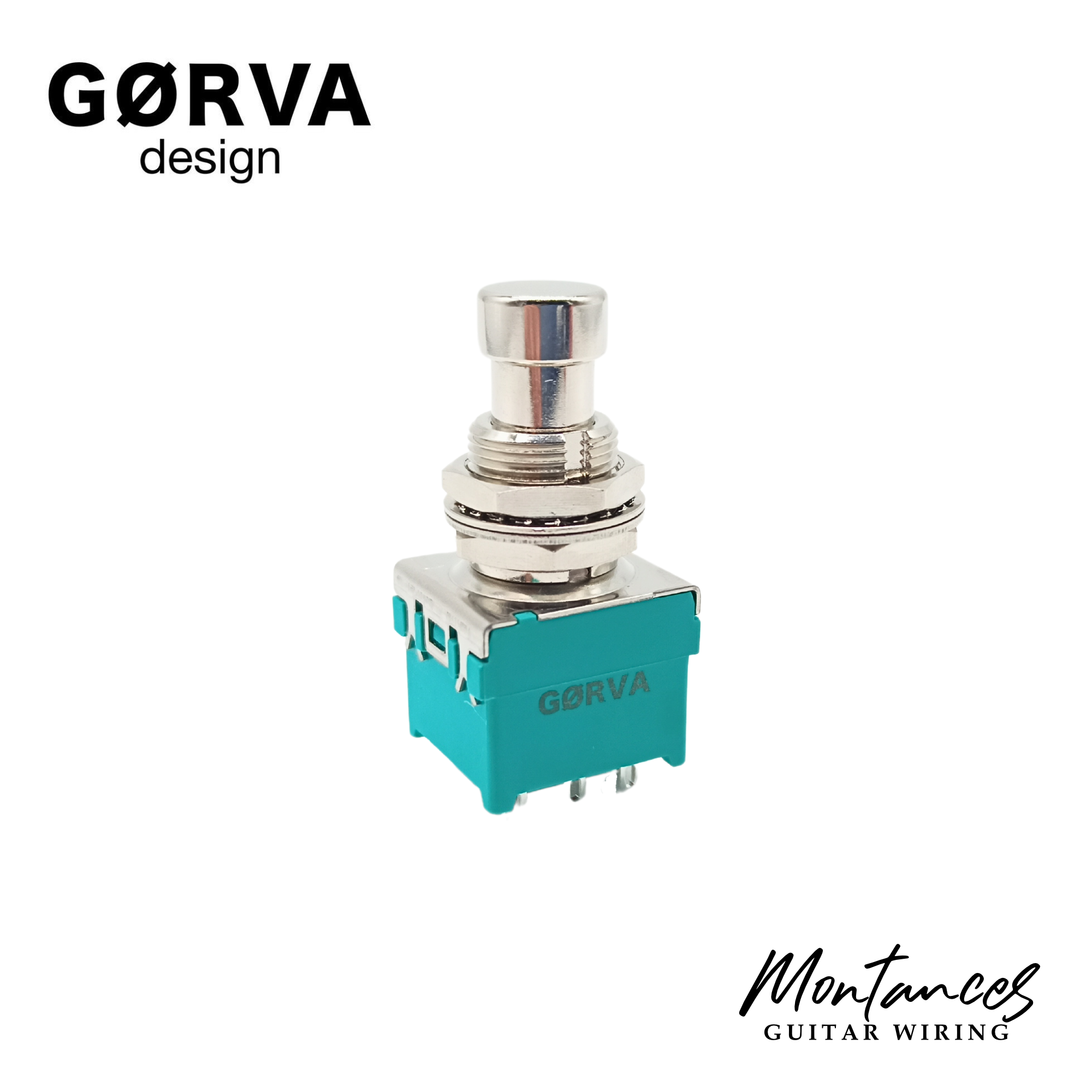

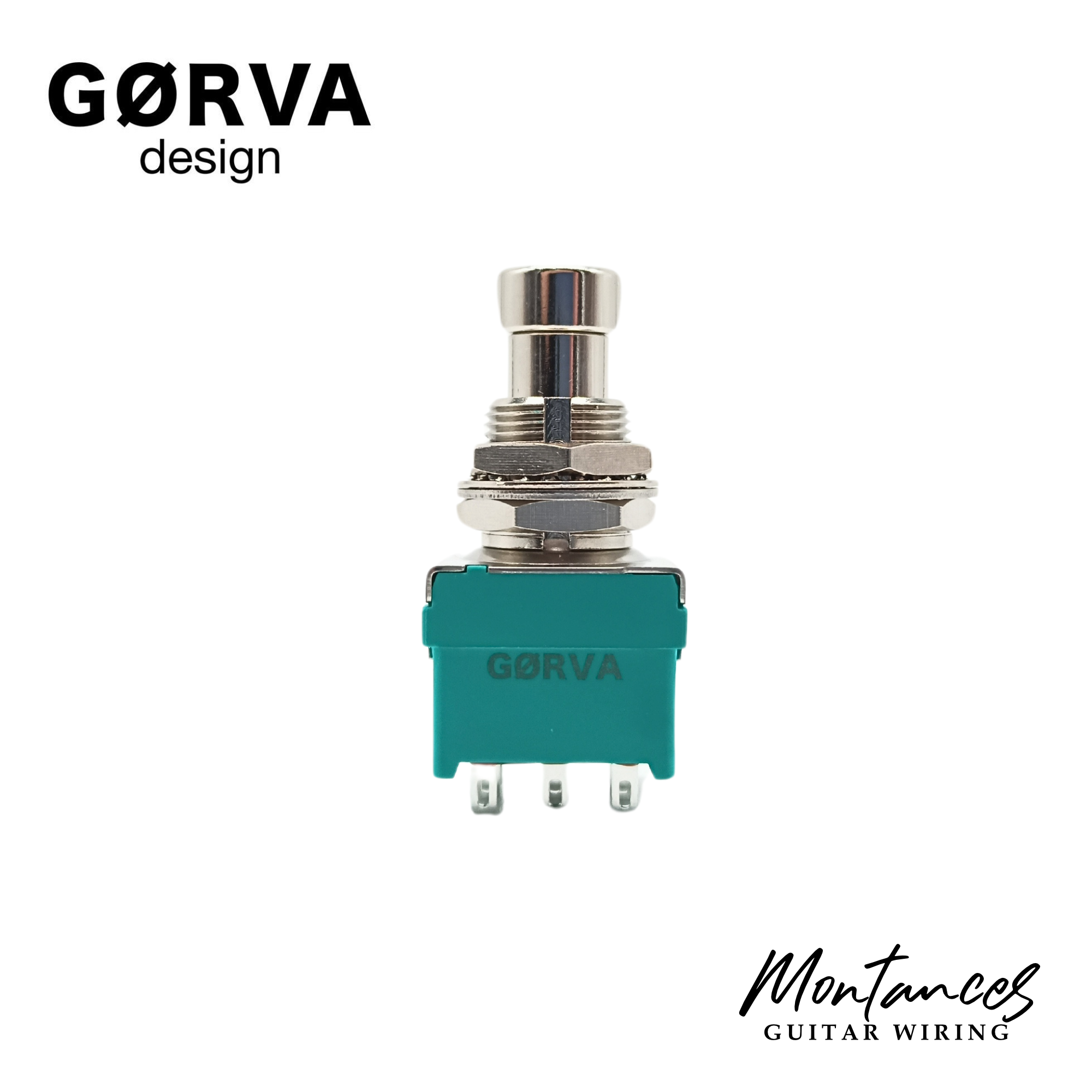

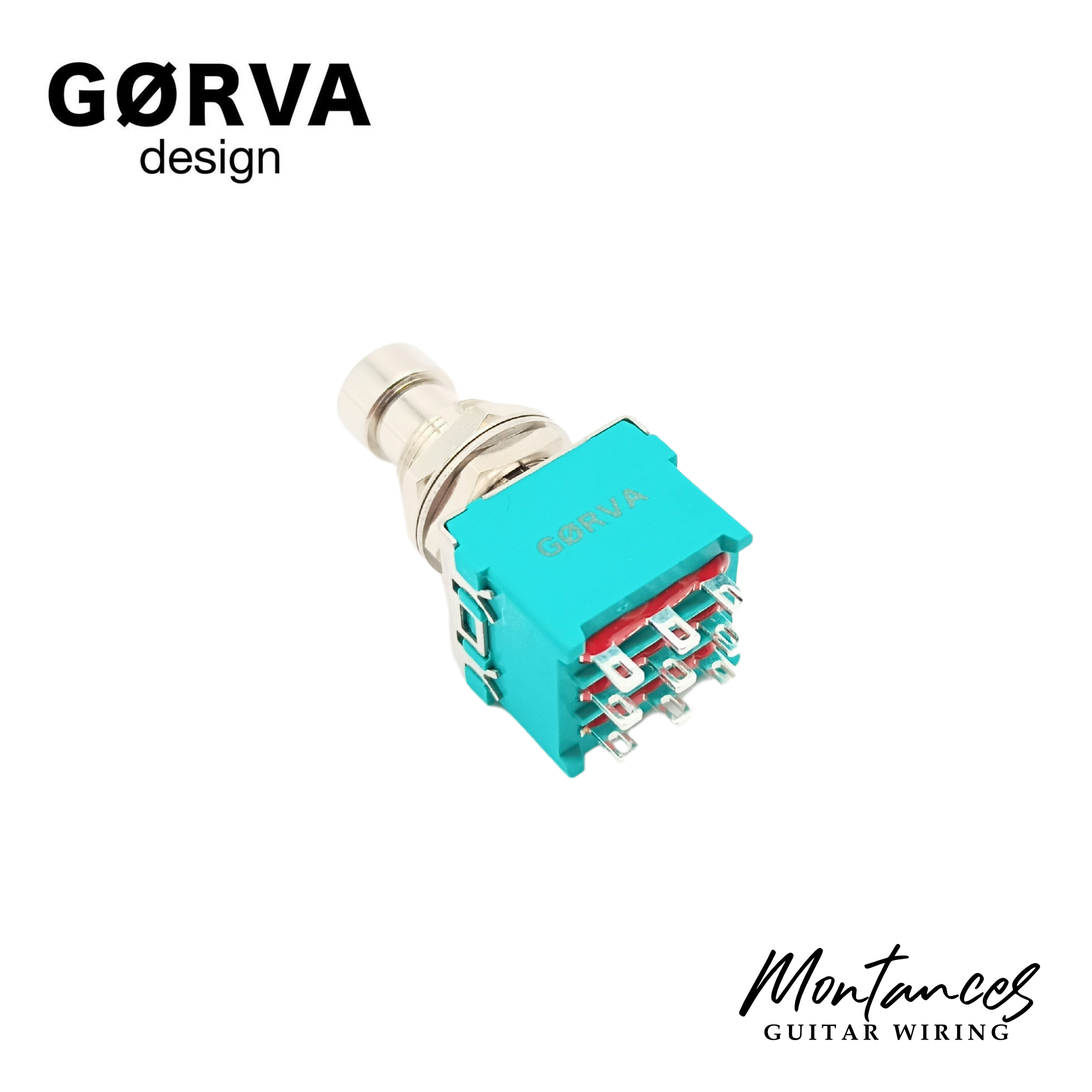

The GØRVA Mechano is a premium 3PDT soft-touch latching footswitch designed to elevate your pedal performance. Known for their high-quality pedal parts, GØRVA Designs delivers yet again with the Mechano switch, offering exceptional durability and seamless functionality.

Key Features:

• 3PDT Latching Stomp Switch: Ensures reliable and consistent performance with every use.

• Soft Touch Actuation: Provides a smooth, quiet operation with an actuation force of 1.0±0.3Kgf, perfect for precision control.

• Durable Green Case: Stylish and sturdy, the green case complements your pedal's aesthetic.

• Long-lasting Performance: With a life rating of 30,000 cycles, this switch outperforms most standard stompbox switches.

• Environmentally Friendly: RoHS compliant and lead-free, ensuring safe and eco-friendly usage.

Why Choose GØRVA Mechano?

GØRVA Designs has quickly established itself as a leader in premium pedal parts. The Mechano footswitch, like their renowned enclosures, exemplifies their commitment to quality and innovation. Upgrade your pedal today with the GØRVA Mechano and experience the difference in every click.

Actuator Shaft Length = 5 mm

Actuator Top Diameter = 10 mm

Actuator Top Height = 5 mm

Body Height = 16.7 mm

Body Length = 19.6 mm

Body Width = 17 mm

Bushing Keyway = 2 mm

Bushing Length = 11.5 mm

Bushing Thread = M12*P0.75

Contact Resistance = Typically 10 mΩ (30 mΩ Max)

Dielectric Strength = 500 V RMS @ Sea Level

Electrical Life = 30,000 Cycles

Insulation Resistance = DC 500 V 100 MΩ Minimum

Operating Force = 1.0±0.3Kgf

Operating Temperature = -10 °C ~ +70 °C

Panel Mount Cutout = 12.5 mm

Power Rating = 9 VDC, 1 A

Solder Lug Length = 3.2 mm

Solder Lug Spacing Length = 5.3 mm

Solder Lug Spacing Width = 4.8 mm

Solder Lug Thickness = 0.75 mm

Solder Lug Width = 2 mm

Packaging Information

Packaging Dimensions = 0.75 in. × 0.625 in. × 1.625 in.

Weight (Packaging) = 0.0485 lbs.
