No review yet. Write Review
₱513.00 ₱410.00

Product type : Footswitch

Sku : FS-3DPT-LUG-BK

-
+
InStock SOLD OUT



Footswitch 3PDT for guitar pedals, Solder Lugs, Soft Click

Build Your Perfect Pedal with Our 3PDT Soft Click Footswitch

Elevate your custom pedal builds with our black-bodied 3PDT footswitches, designed for fast and responsive switching. With a low actuation force and multiple color options, you can achieve both functionality and style in your next project. Matching mounting hardware is included to ensure a seamless installation.

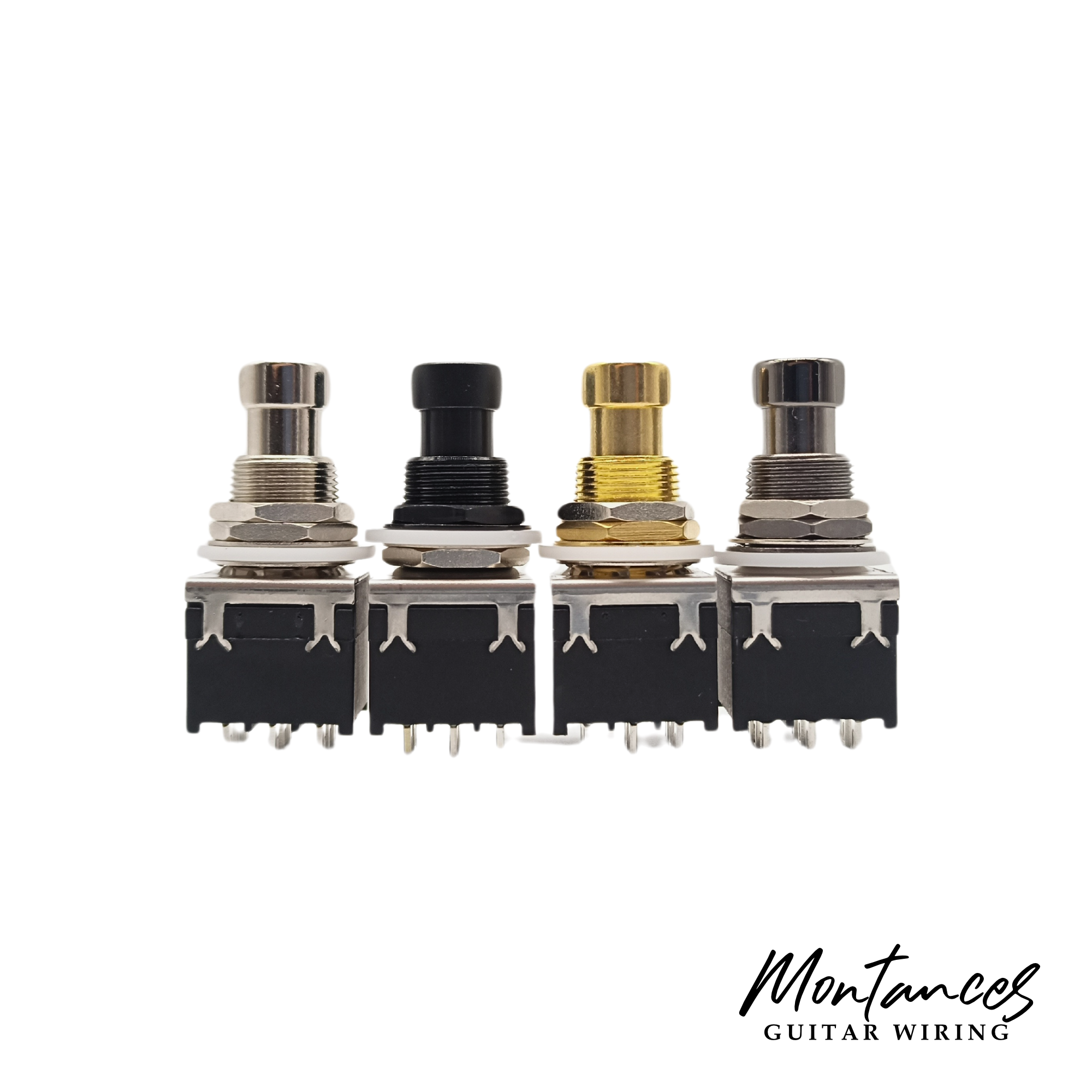

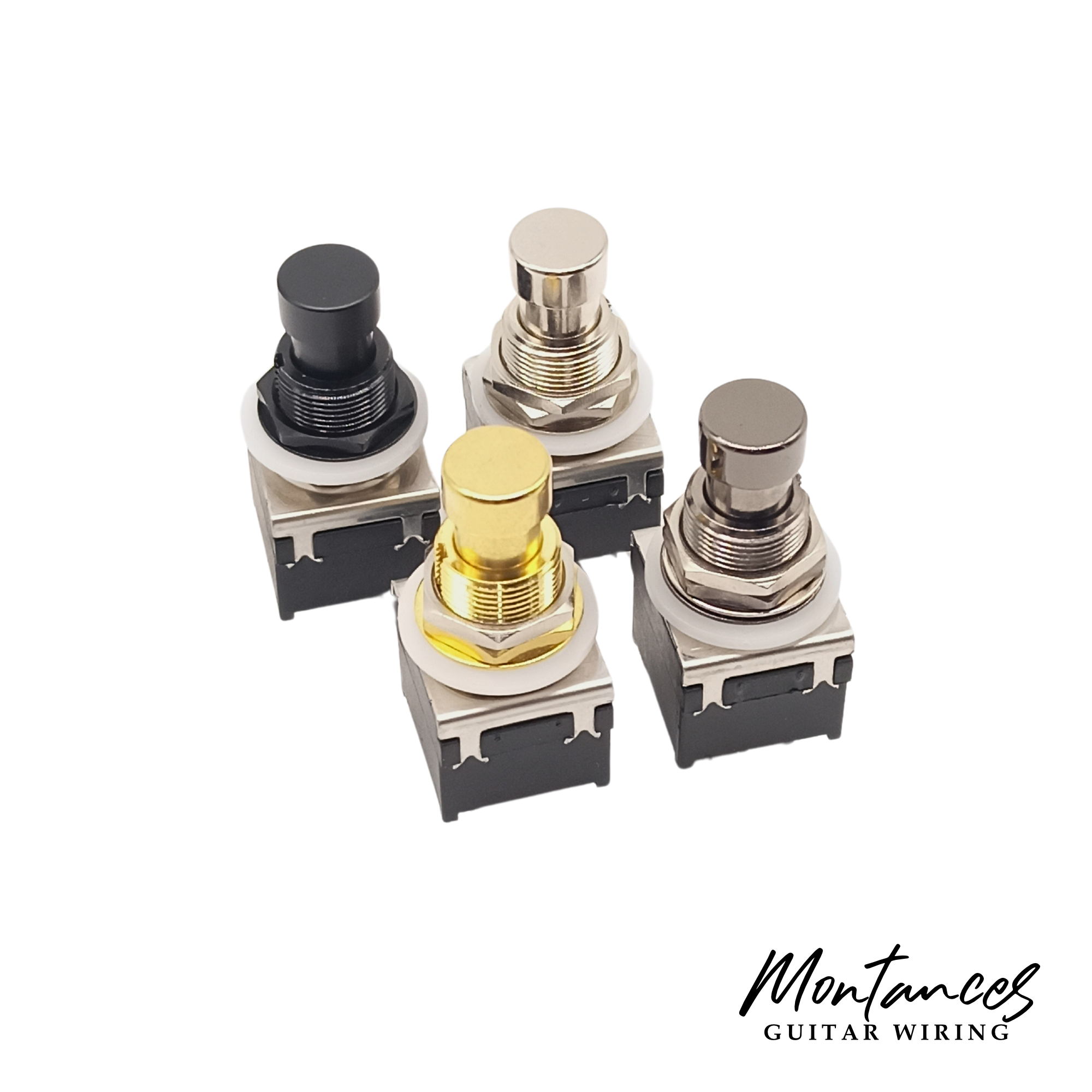

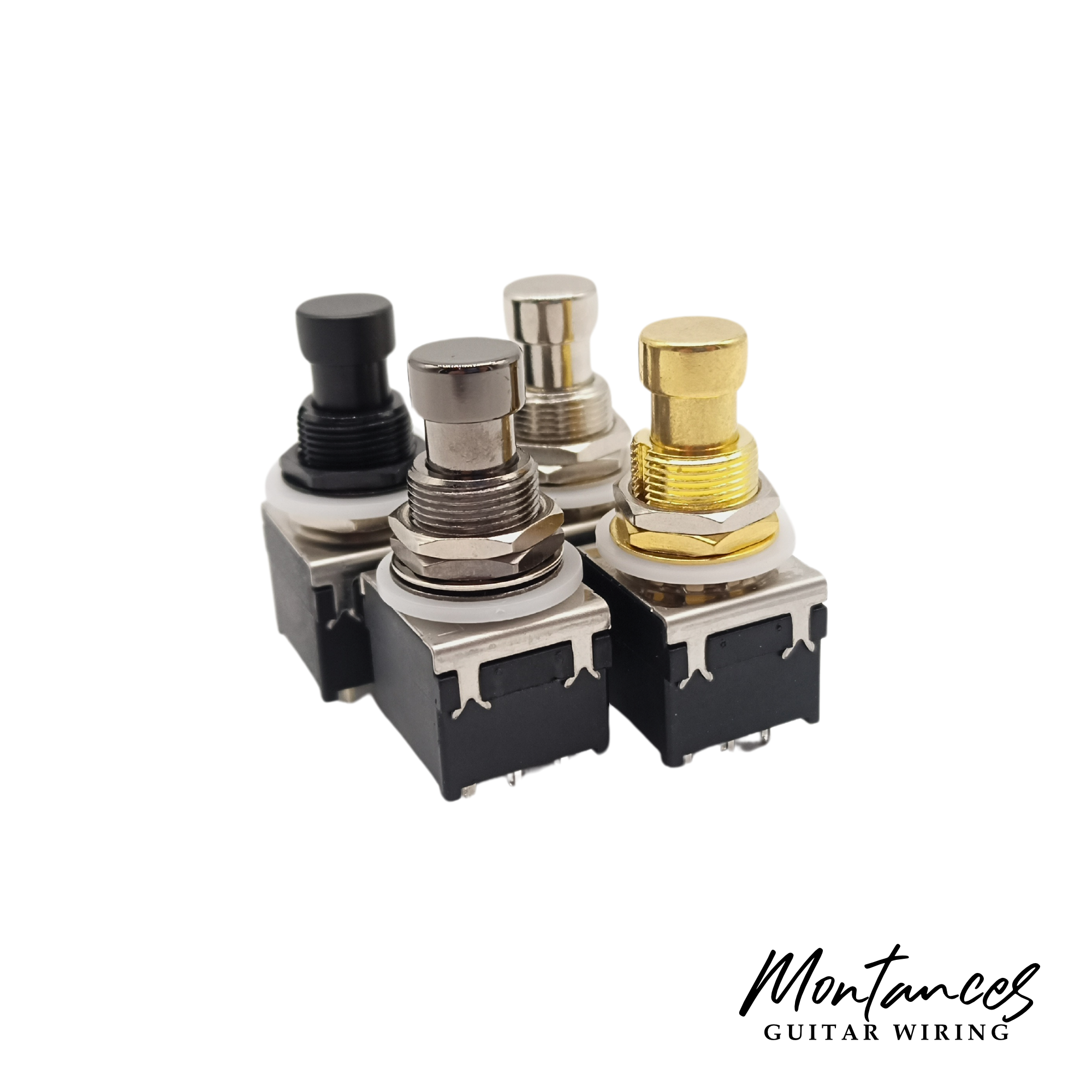

Color Options:

  • Black

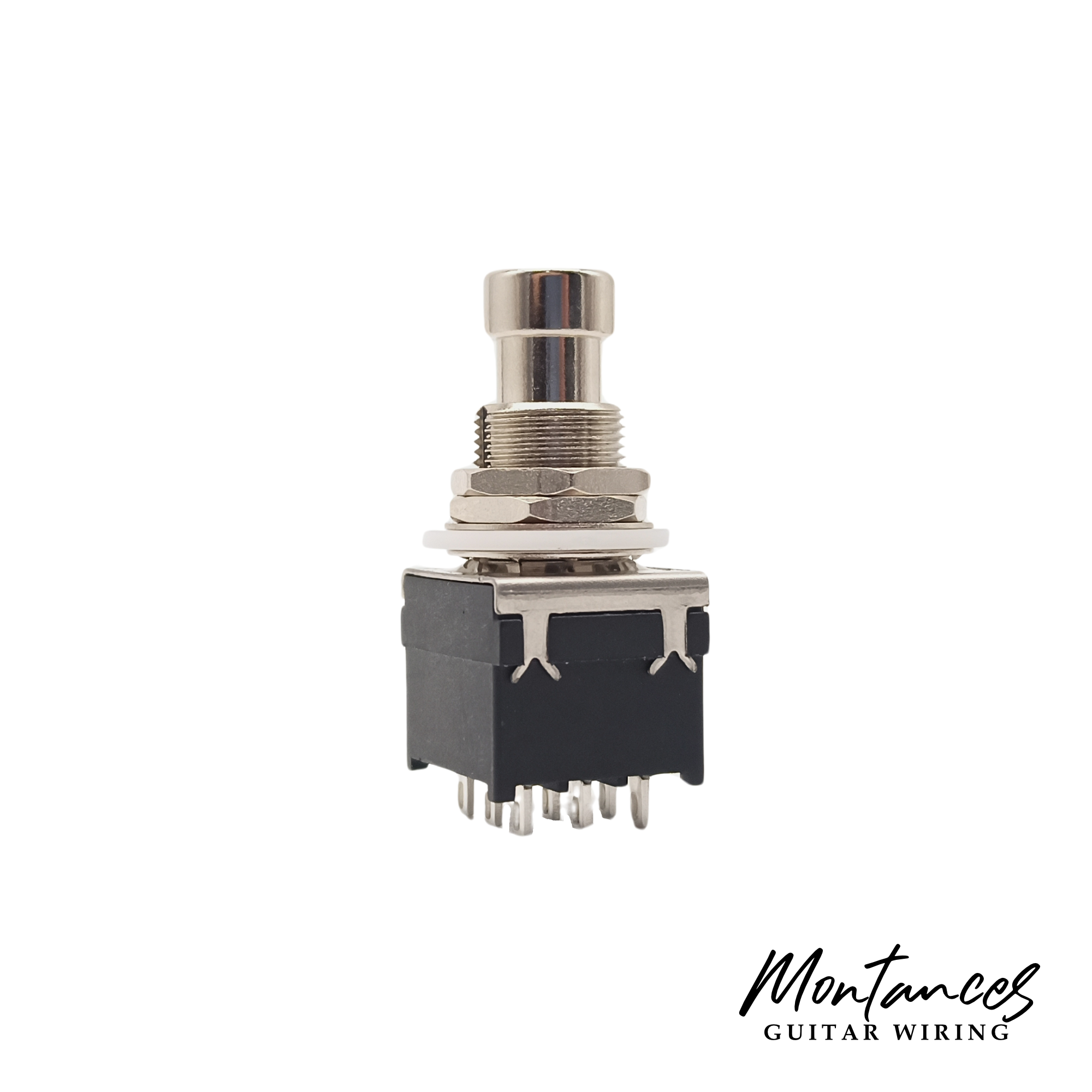

  • Chrome

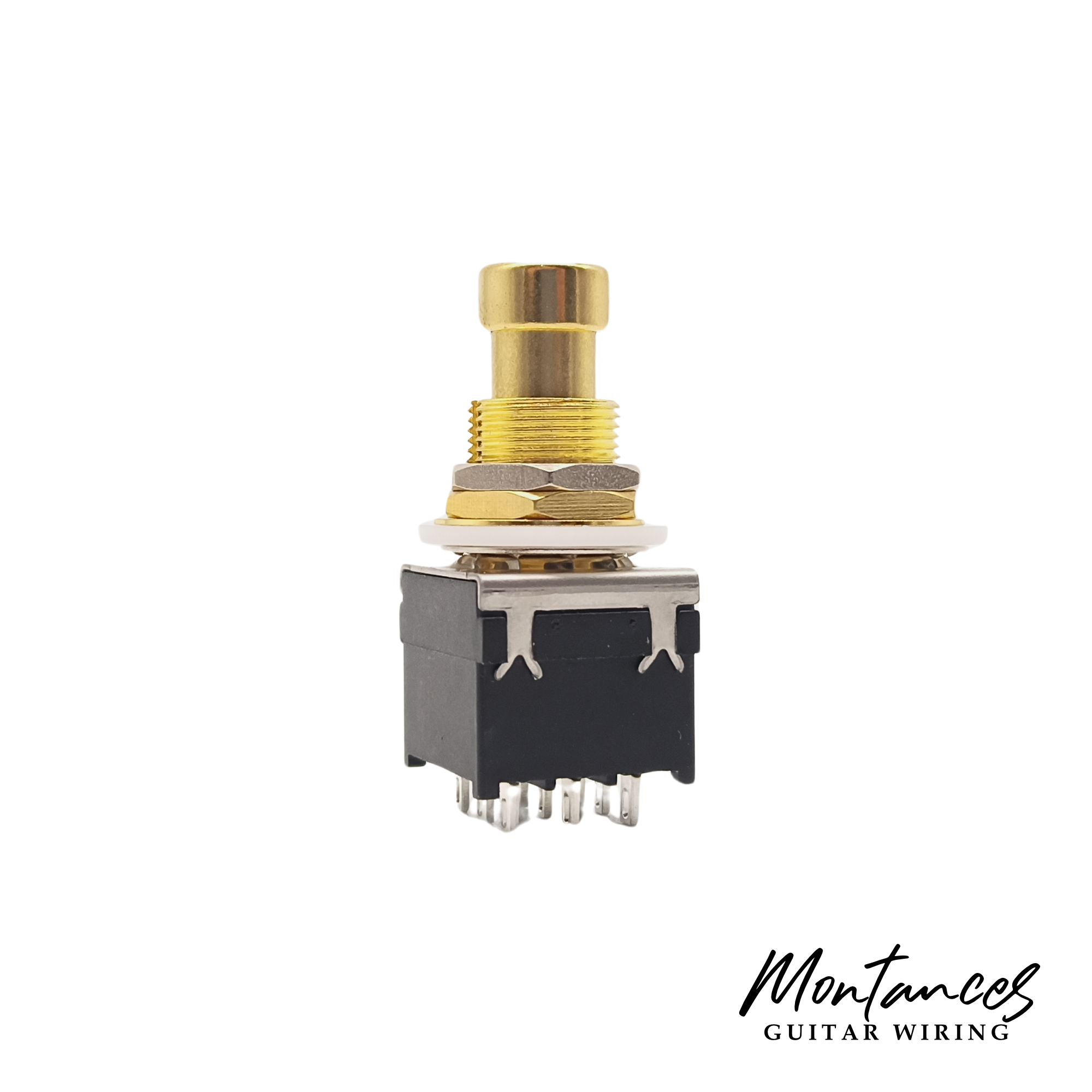

  • Gold

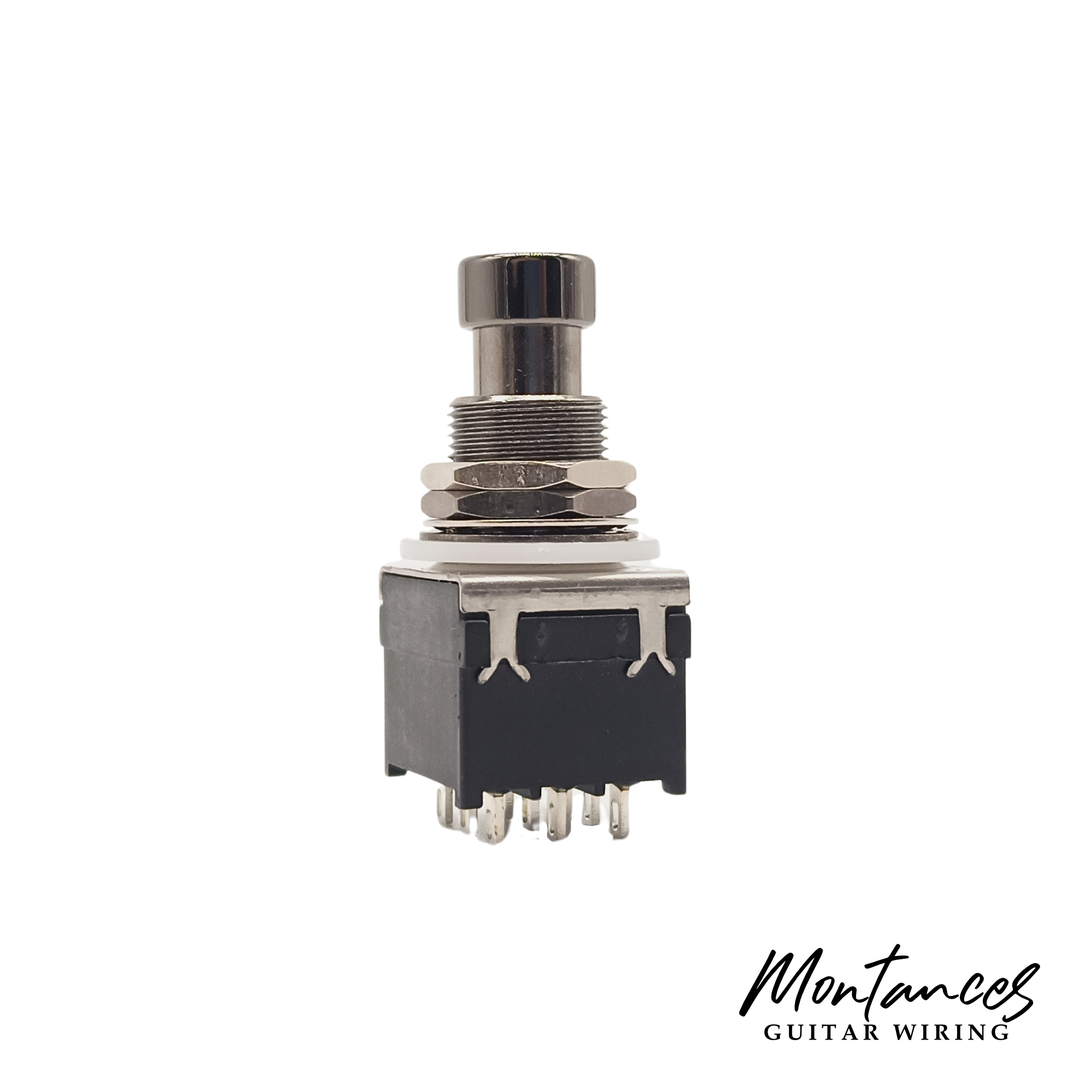

  • Metal Grey

Key Features:

  • Latching Footswitch: Ensures reliable operation with each use.

  • 3PDT Configuration: Provides versatile wiring options for your custom builds.

  • Low Actuation Force: Offers quick and responsive switching with an actuation force of 1.1±0.1kgf.

  • Solder Lugs: Easy to integrate into your pedal designs.

  • Matching Hardware Included: Complete your build with included mounting hardware.

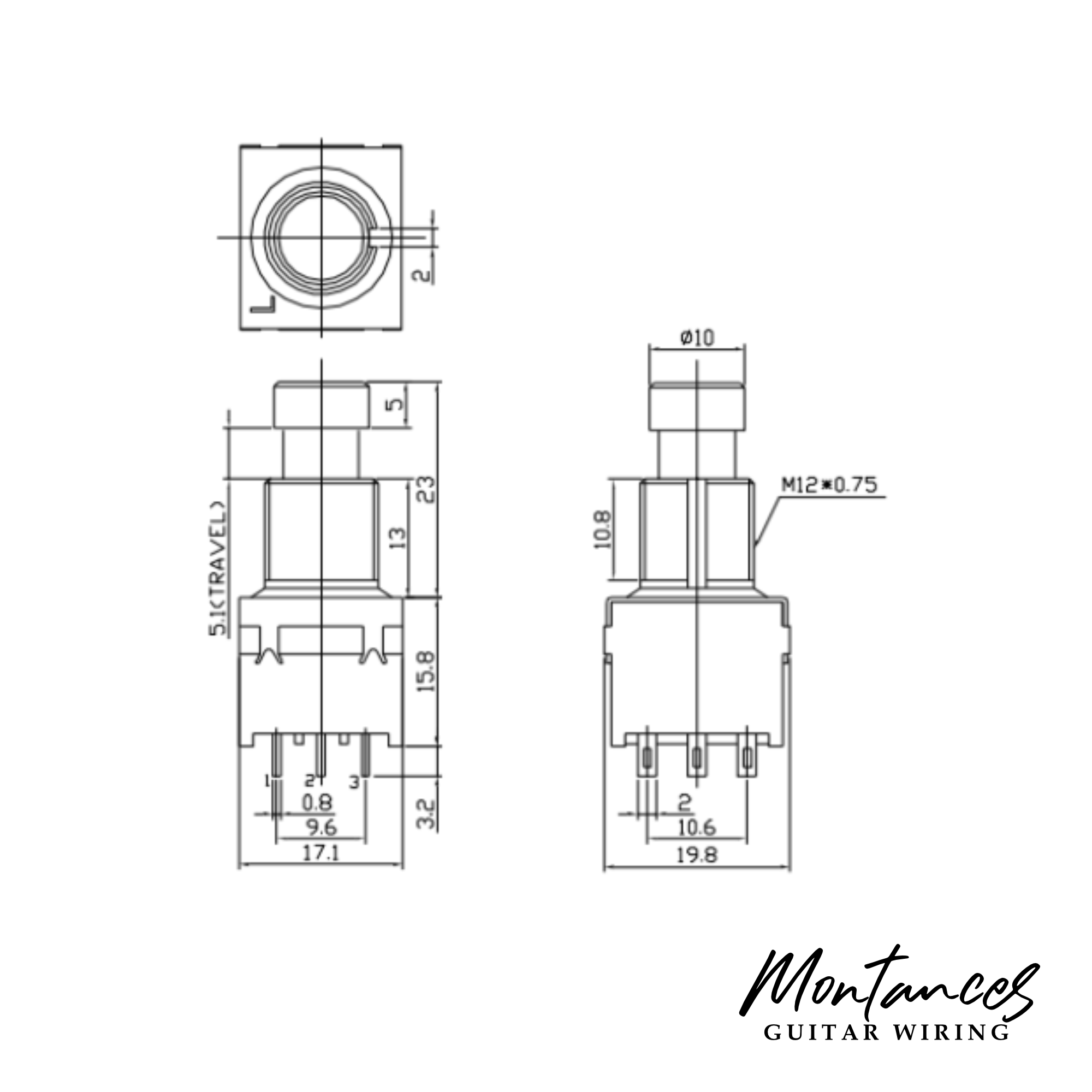

Specifications:

  • Actuation Force: 1.1±0.1kgf

  • Actuator Dimensions:

    • Diameter: 10 mm

    • Height: 5 mm

  • Body Dimensions:

    • Height: 15.8 mm

    • Length: 17.1 mm

    • Width: 19.8 mm

  • Bushing Length: 13 mm

  • Bushing Threading: M12 x 0.75

  • Contact Impedance: 30mΩ max

  • Insulation Resistance: 500VDC 100MΩ minimum

  • Lifespan: 10,000 cycles

  • Pin Dimensions:

    • Spacing Length: 4.8 mm

    • Spacing Width: 5.3 mm

    • Thickness: 0.8 mm

    • Width: 2 mm

  • Electrical Rating: Suitable for use with 9VDC up to 1A

  • Travel Distance: 5.4 mm

  • Withstand Voltage: 500VAC for 1 minute

Packaging Information:

  • Dimensions: 1.616 in. × 0.772 in. × 0.666 in.

  • Weight: 0.0397 lbs.

Why Choose Our 3PDT Soft Click Footswitch?

Our 3PDT footswitches are perfect for those who demand reliability and precision in their pedal builds. With options to match your aesthetic and a robust design to ensure long-lasting performance, these footswitches are a top choice for custom pedal enthusiasts.
