Carling Mini Toggle Switch DPDT, 2 Position ON-ON

Name: Carling Mini Toggle Switch DPDT, 2 Position ON-ON
Brand: Montances Guitar Wiring
SKU: CARL-DPDT-ON-ON
Price: 405.0 PHP
Availability: InStock

No review yet. Write Review

₱506.00 ₱405.00

Product type : Switches, Mini-Toggle Switch

Sku : CARL-DPDT-ON-ON

Type

DPDT ON-ON

Units

InStock SOLD OUT

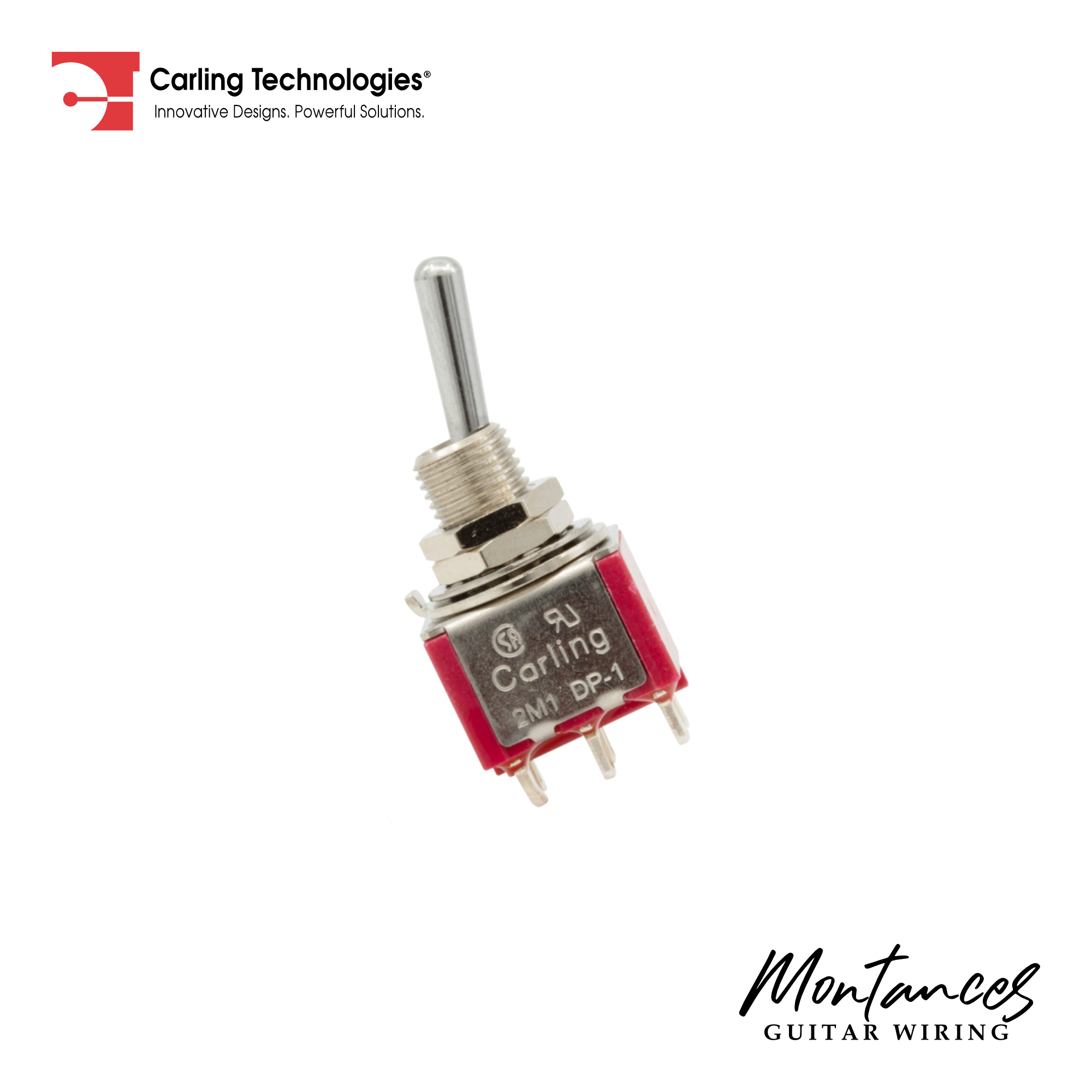

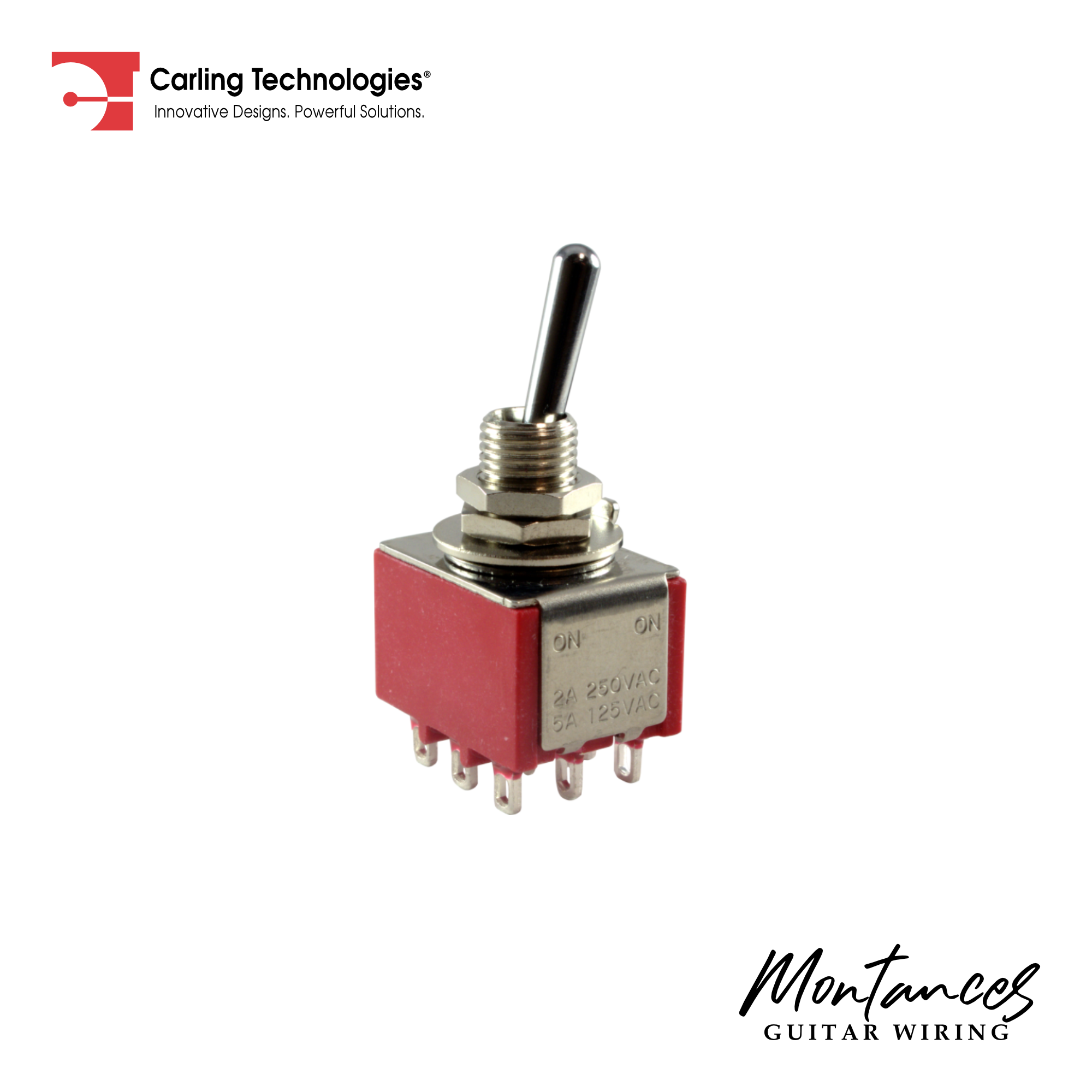

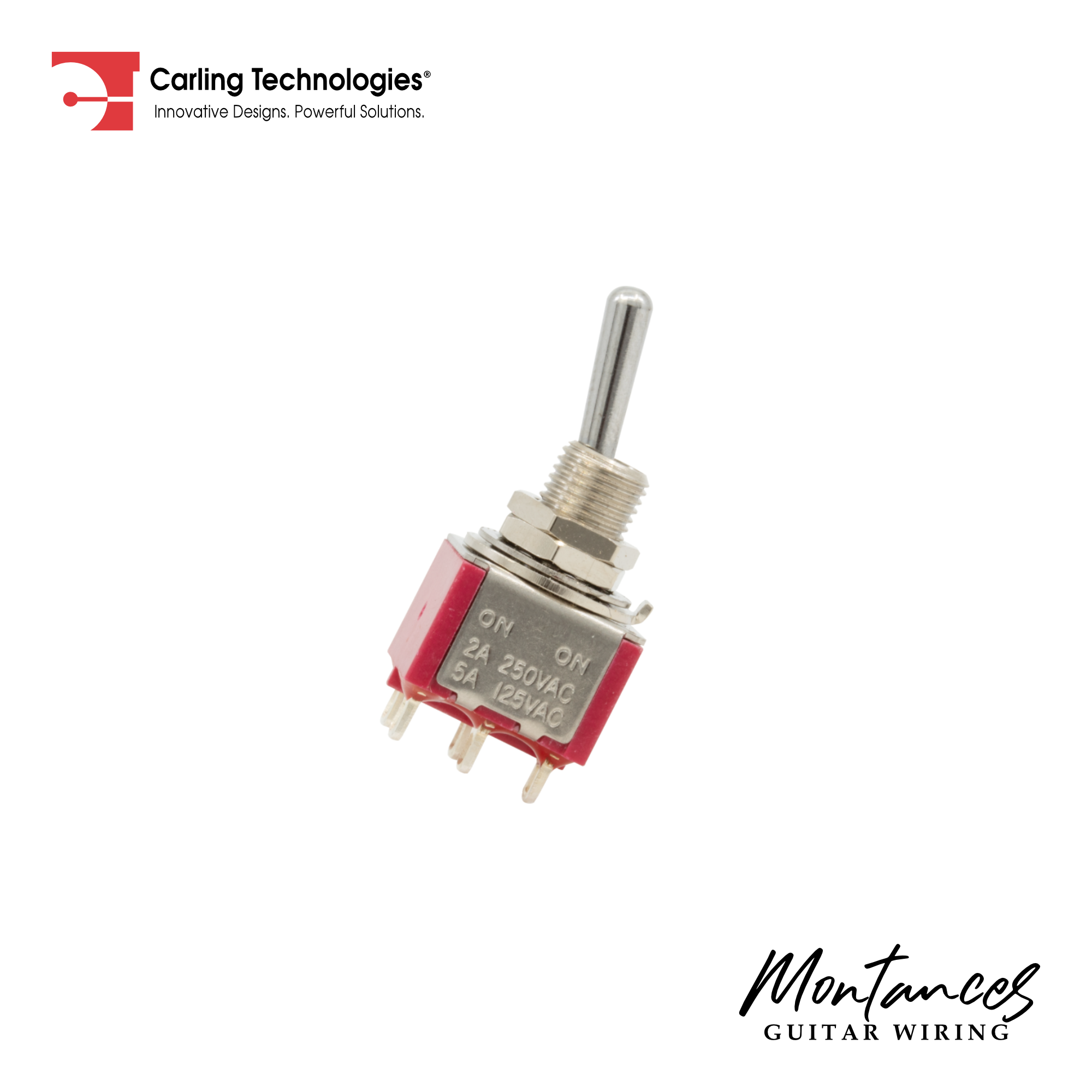

Carling DPDT Mini Toggle Switch – 2-Position (ON-ON)

Reliable Mini Toggle for Guitar, Bass, and Stompbox Mods

This 2-position DPDT mini toggle switch from Carling is a compact and high-quality solution for a wide range of guitar, bass, and effects pedal modifications. Whether you're working on coil-tapping, phase switching, or series/parallel mods, this switch delivers smooth operation and solid connectivity.

Ideal for tight control cavities or pedal builds where space is a concern.

Tonal Applications

Coil-split your humbuckers for single-coil tone
Toggle between in-phase and out-of-phase wiring
Engage series/parallel switching for tone variety
Integrate into pedal enclosures or onboard mods

Technical Specifications

Switch Type: DPDT (Double Pole Double Throw)
Switch Function: ON-ON (2-position)

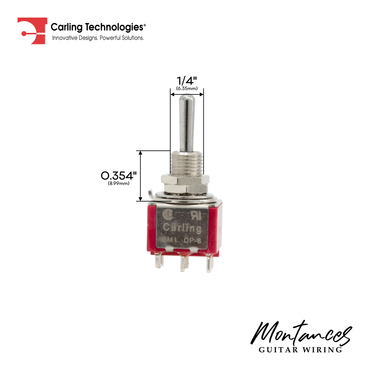

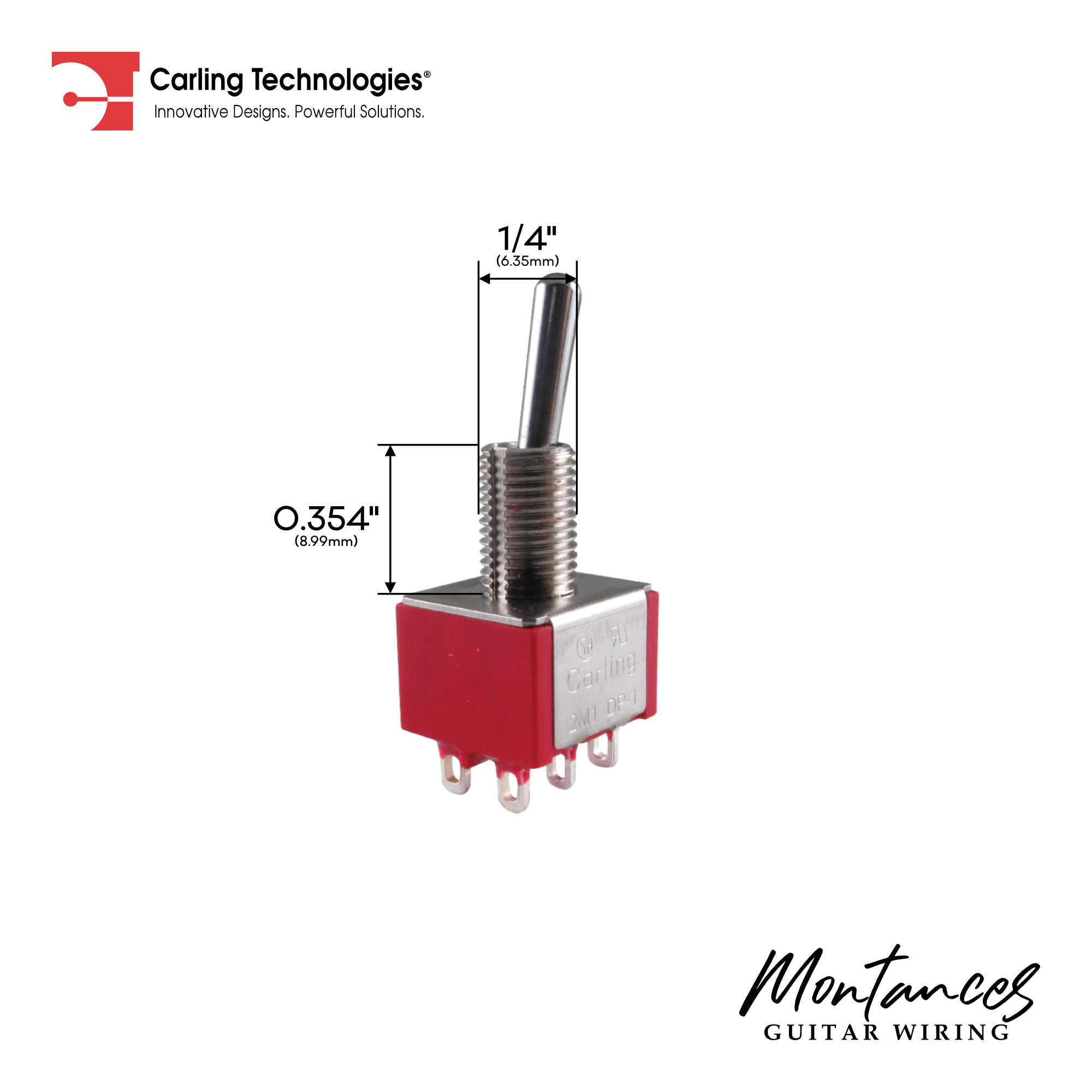

Bushing Length: 0.354"
Mounting Hole Diameter: 1/4" (6.35mm)

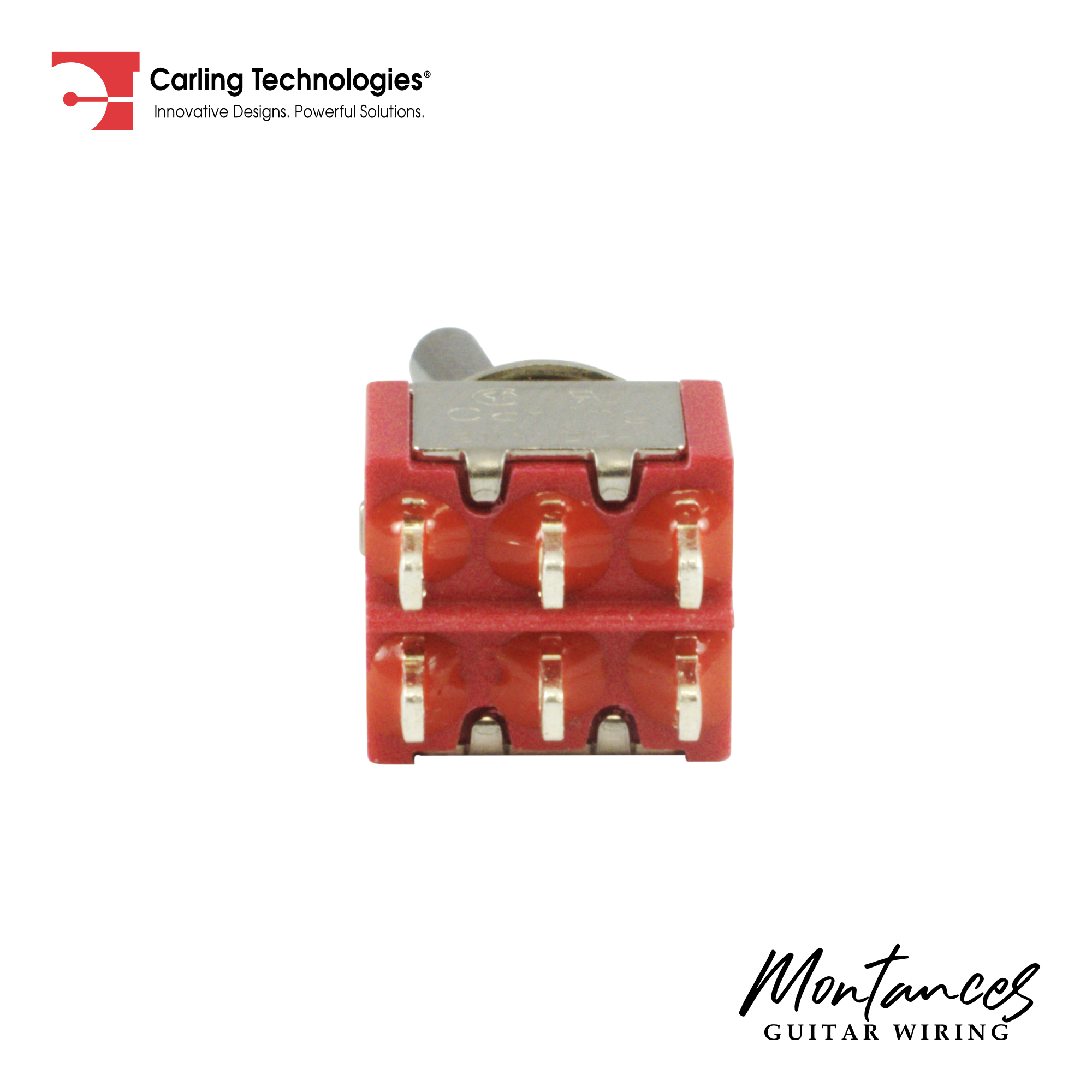

Terminals: Solder lugs
Mounting Hardware: Nut and washer included

Warranty and Support

All switches are quality-tested and supported with installation guidance.
Need help with wiring? Feel free to reach out.

We specialize in custom guitar wiring and hand-wound pickups.

📩 Message us for questions, custom wiring support, or bulk orders.

Thank you for choosing Montances Guitar Wiring.
