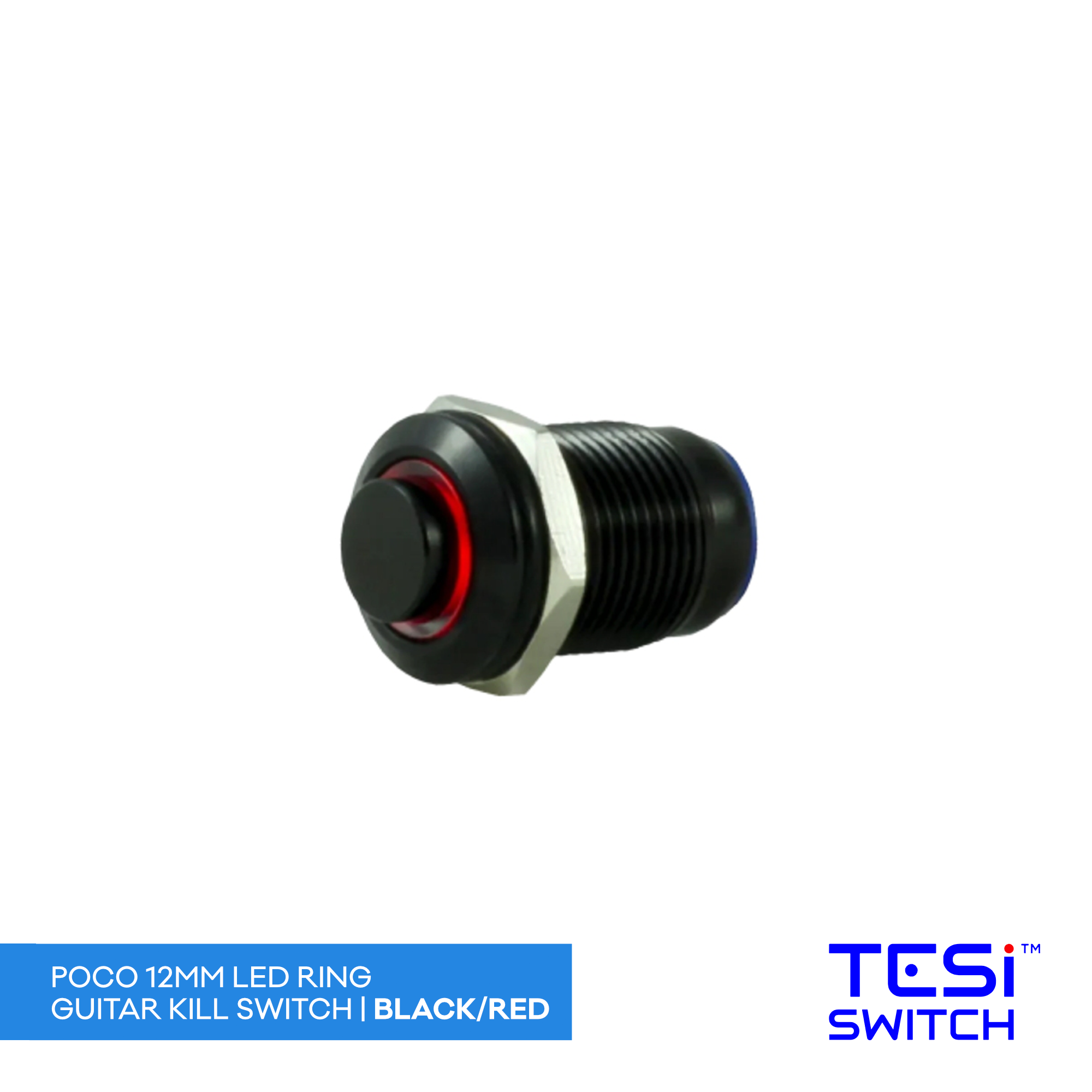

TESI Switch POCO 12MM LED Ring Guitar Kill Switch - Black/Red

TESI Switch POCO 12MM LED Ring Guitar Kill Switch - Black/Red
TESI Switch POCO 12MM LED Ring Guitar Kill Switch - Black/Red
TESI Switch POCO 12MM LED Ring Guitar Kill Switch - Black/Red
TESI Switch POCO 12MM LED Ring Guitar Kill Switch - Black/Red
TESI Switch POCO 12MM LED Ring Guitar Kill Switch - Black/Red
TESI Switch POCO 12MM LED Ring Guitar Kill Switch - Black/Red

TESI Switch POCO 12MM LED Ring Guitar Kill Switch - Black/Red

No review yet. Write Review
₱1,745.00 ₱1,047.00

Product type : Switches

Sku : TESI-POCO-12-BKRD

-
+
InStock SOLD OUT

Tesi POCO 12MM Momentary LED Push Button Guitar Kill Switch Black (Select LED Color)



THIS LISTING IS FOR THE 12MM POCO KILL SWITCH IN BLACK WITH LED.

Specs:

Type: Momentary Push Button Switch

Operation Type: Normally Open (yes, this is correct for instrument kill switch operation. Included instructions show you how to wire it properly!)

Housing Material: Plated Brass

Mounting hole size: 12mm

Mounting Panel Thickness: 1mm-6mm

Operation Pressure: about 5n

Operation Stroke: 2.5mm

LED Rated Voltage:  6V (includes wires to use with 9V battery and additional resistors in case you want to get creative with the wiring)

          *note:  This will also function with an 18v active electronics system. Please make a note on your order to make sure you get the right resistors.

LED Life: About 40,000 hours

LED Power Draw: 15mA

Contact Resistance: 50 mOhm

Mechanical Life: 500,000 cycles

Switch Rating: 2A/36VDC


What does all this mean?  You're getting a tough switch that will last a long time in your instrument and look good doing it!


The switch is easy to install. If you have the slightest bit of skill with a soldering iron you can do it yourself. If you do not have that skill, you should have a guitar repair person do it.  The mounting hole is slightly larger than a standard volume or tone pot (12MM vs. 9MM) which means that if you decide to go back to your original setup, you don't have to buy a new pickguard or repair that hole in your wood.


This package comes with everything:

(1) Tesi POCO 12mm Momentary Guitar Kill Switch

(1) Tesi Quick-Connect wiring Bundle that includes:

     (1) 8" Black/Black ground wire

     (1) 8" Black/White hot wire

     (1) 8" 9V Battery Harness with 330-ohm resistor

     (1) On/Off Rocker Switch

(1) Set of easy-to-follow wiring instructions

(1) Spare 270 Ohm resistor for custom wiring jobs


When used with active pickups and/or a stereo output jack (not included) the Tesi POCO does not require the additional on/off rocker switch.


Each Tesi Guitar Kill Switch is guaranteed against defect for one year from the date of sale.  Contact us for more details.


The Tesi Switch Difference:

We test every switch before packaging it.  As a result, the failure rate is less than 1%.  We package the 12MM and larger switches in a custom-cut foam block and place them in a small box for protection. The box also includes a couple of Tesi Switch guitar picks, as well as all the wiring necessary to install in an active or passive system, and we are always happy to help with installation questions.
