TESI Switch DITO Arcade Button Guitar Kill Switch Solid Red

TESI Switch DITO Arcade Button Guitar Kill Switch Solid Red
TESI Switch DITO Arcade Button Guitar Kill Switch Solid Red
TESI Switch DITO Arcade Button Guitar Kill Switch Solid Red
TESI Switch DITO Arcade Button Guitar Kill Switch Solid Red
TESI Switch DITO Arcade Button Guitar Kill Switch Solid Red
TESI Switch DITO Arcade Button Guitar Kill Switch Solid Red

TESI Switch DITO Arcade Button Guitar Kill Switch Solid Red

No review yet. Write Review
₱873.00 ₱559.00

Product type : Switches

Sku : TESI-DITO-ARC-RD

Sorry! Our TESI Switch DITO Arcade Button Guitar Kill Switch Solid Red is currently sold out.

Want to be notified when it becomes available again? Simply register your interest and we'll send you a message when it does.

-
+
InStock SOLD OUT

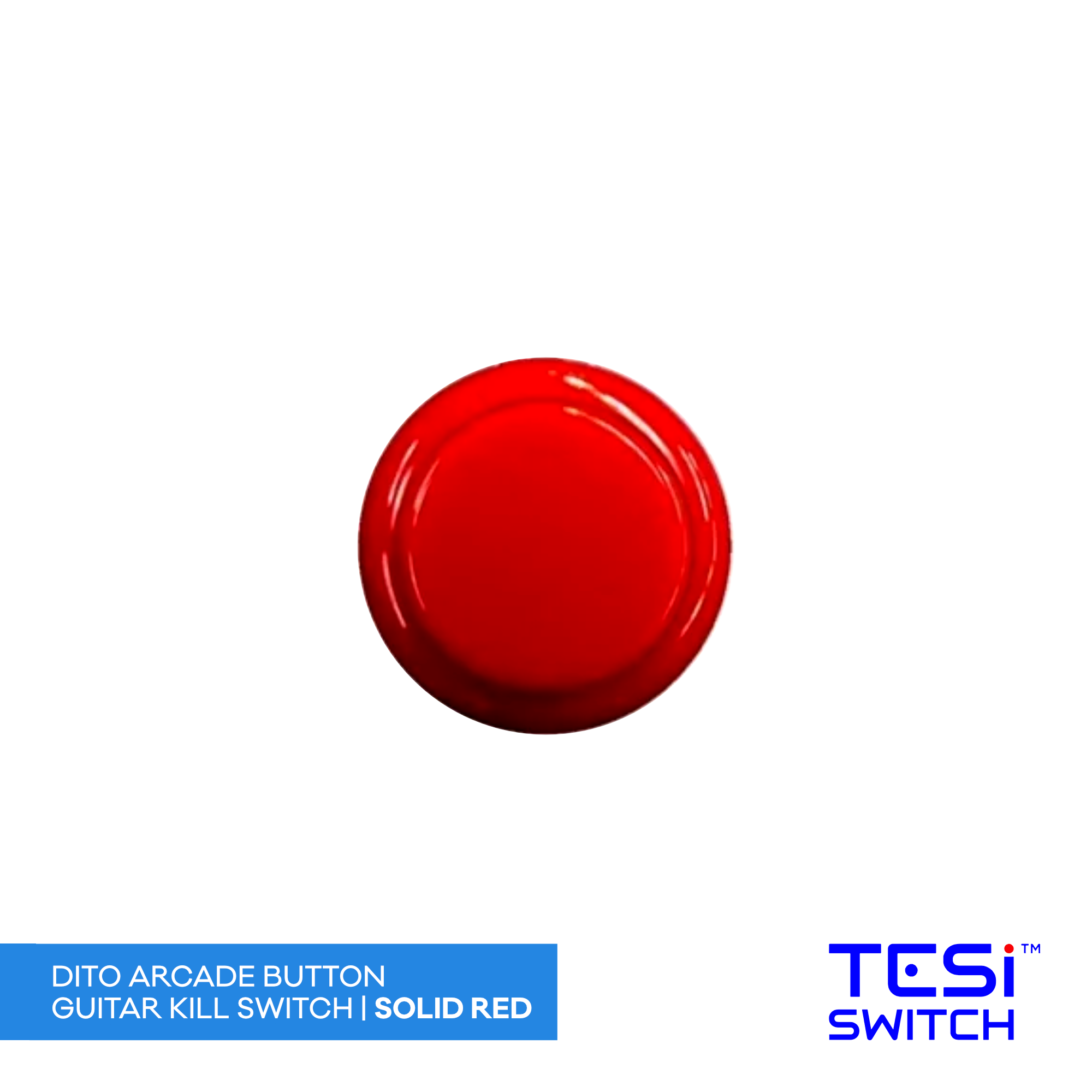

Tesi DITO 24MM Solid Arcade Push Button Guitar Kill Switch


THIS LISTING IS FOR THE 24MM DITO ARCADE BUTTON KILL SWITCH WITH SNAP-IN MOUNTING FOR THIN TOP AND PICKGUARDS

If you need the screw-in version for thicker mounting surfaces, CLICK HERE!


People often ask, what is the fastest kill switch you have?   It's this one.  The DITO has the lightest spring available in any Tesi Switch.  As an arcade switch, it's designed to be pounded over and over to make sure you have the speed, accuracy, and endurance to defeat your enemies.  Under constant abuse, this switch will take 10,000,000 (ten million) hits.


Specs:

Type: Momentary Push Button Switch

Operation Type: Normally Open (yes, this is correct for instrument kill switch operation. Included instructions show you how to wire it properly!)

Housing Material: Plastic

Mounting hole size: 24mm

Mounting Panel Thickness: 1mm-4mm

Operation Pressure: about 2n-3n

Operation Stroke: 2.0 mm

Contact Resistance: 50 mOhm

Mechanical Life: 10,000,000 cycles

Switch Rating: .5A/9VDC


What does all this mean?  You're getting a tough switch that will last a long time in your instrument and look good doing it!


The switch is easy to install. If you have the slightest bit of skill with a soldering iron you can do it yourself. If you do not have that skill, you should have a guitar repair person do it.


This package comes with everything:

(1) Tesi DITO 24mm Momentary Arcade Button Guitar Kill Switch

(1) Tesi Quick-Connect wiring Bundle that includes:

     (1) 8" Black ground wire

     (1) 8" White hot wire

(1) Set of easy-to-follow wiring instructions


This switch can be used with active or passive pickups with no additional parts required.  Just solder the wires (already attached to the switch) and get ready for action!


Each Tesi Guitar Kill Switch is guaranteed against defect for one year from the date of sale.  Contact us for more details.


The Tesi Switch Difference:

We test every switch before packaging it.  As a result, the failure rate is less than 1%.  We package the 12MM and larger switches in a custom-cut foam block and place them in a small box for protection. The box also includes a couple of Tesi Switch guitar picks, as well as all the wiring necessary to install in an active or passive system, and we are always happy to help with installation questions.
