Tele Guitar Wiring Kit HH

Tele Guitar Wiring Kit HH
(Please Read the Details)

Do you want a high-end guitar tone at a low-end budget?
A good way to start is by upgrading your Telecaster guitar wiring and electronics.

This set is perfect for a Tele style guitar with H-H pickup configuration.
Bridge: Humbucker (H)
Neck: Humbucker (H)

Upgrade Kit includes the following:
1 OAK Grigsby USA 3-way pickup selector switch
1 switch tip (barrel type)
2 Bourns Potentiometers (US specs)*
1 Switchcraft Guitar Output Jack
1 Orange Drop Capacitor
1 Treble Bleed Circuit
2ft Gavitt Vintage PushBack Cloth Wire (white)
2ft Gavitt Vintage PushBack Cloth Wire (black)

Parts included are of the best quality and typically used in high-end guitar builds. All are USA brands.

Options:

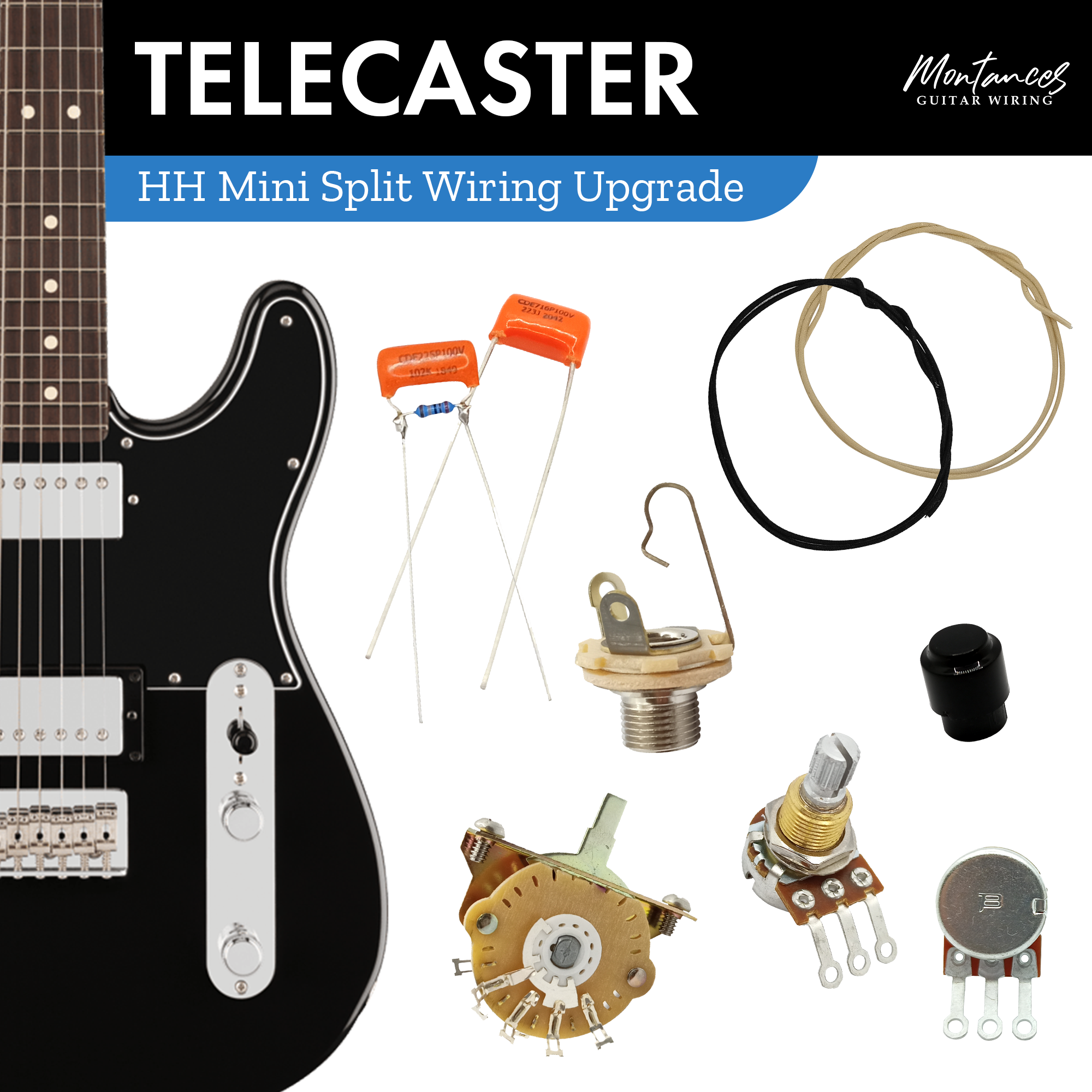

- mini potentiometer, split shaft
- mini potentiometer, solid shaft (6.0mm shaft diameter)**

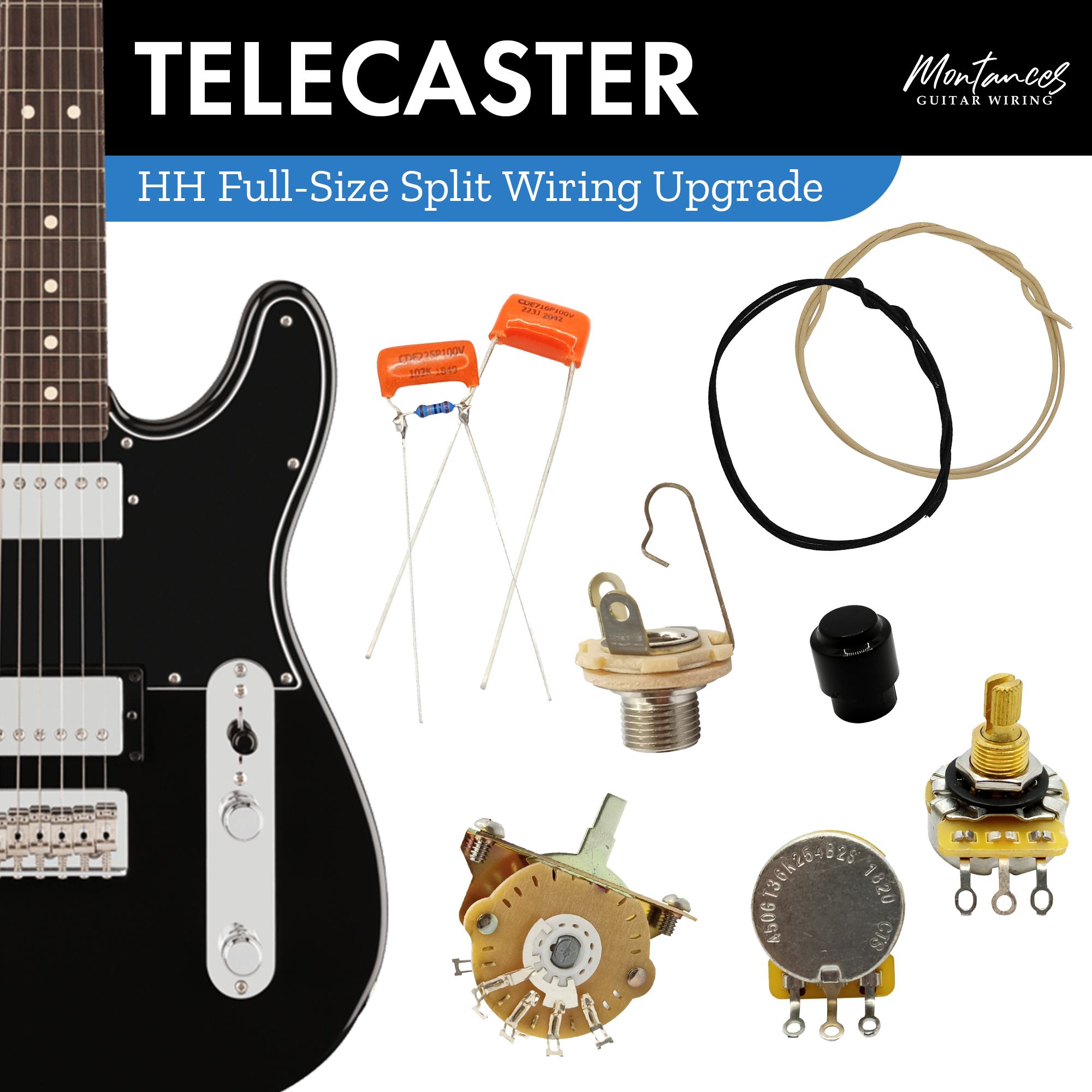

- full-size potentiometer, split shaft

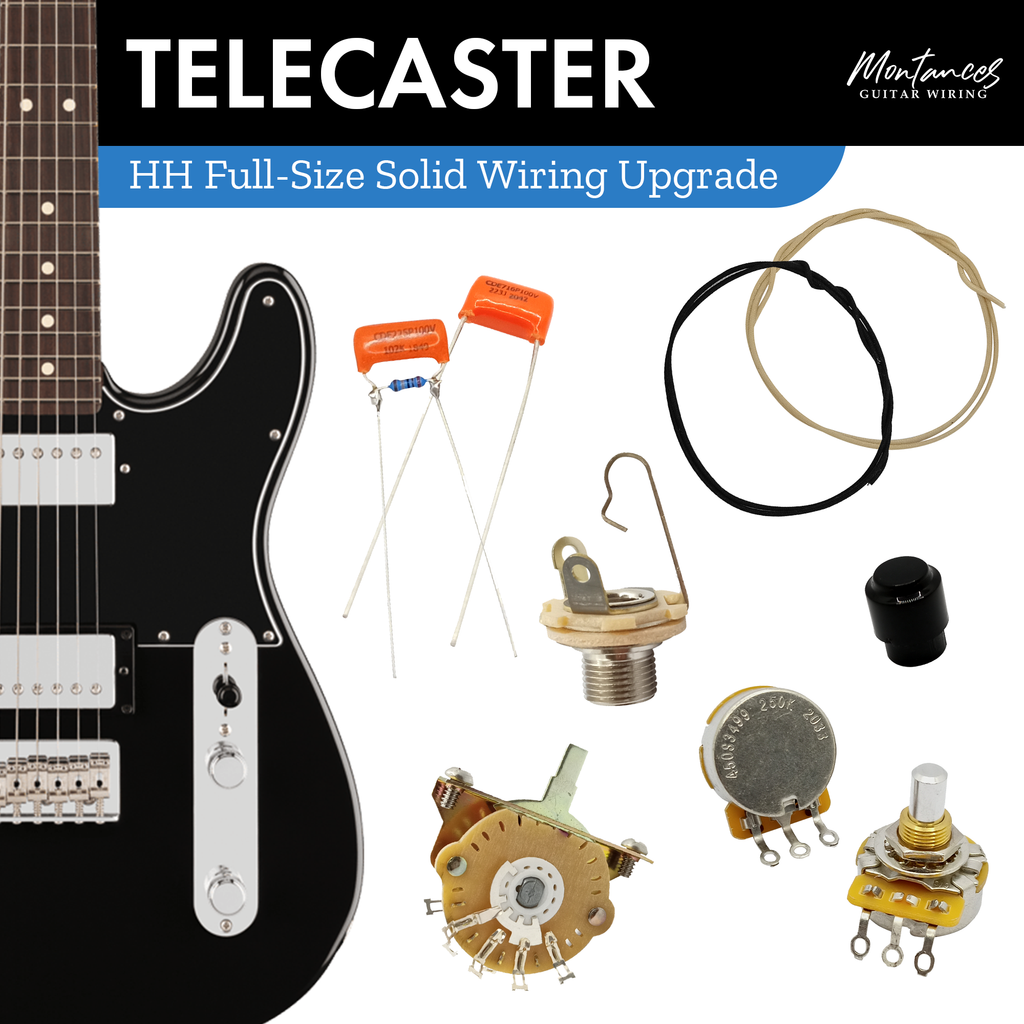

- full-size potentiometer, solid shaft (6.35mm shaft diameter)**

NOTES:

* Bourns full-size pots are low torque for quick-to-turn knobs.
* If you want high-torque pots instead, send a message before purchase so we can change them for you.

*Potentiometer thread length and thread height is ⅜”. Each potentiometer comes with 2 sets of hex nut and washer to fit pickguard installation. Direct body mounting will also fit.

We use standard values for capacitors and potentiometers although specs can be replaced upon request.
Please send a message if you want to change something. Otherwise, we will ship standard options.

** For the Mini Solid Shaft, the shaft diameter is 6.0mm only.
For the Full-size Solid Shaft, the shaft diameter is 1/4" or 6.35mm.
Some knobs only allow up to 6.0mm shaft diameter.
Please check and measure to make sure that your knobs will fit.
We also have the 6.35mm knobs variant if you need it. Just check out the metal knobs 1/4" 6.35mm version.

Each of the components was carefully tested in our laboratory to ensure the best-balanced set that will improve the tone of your guitar.
The kit already includes a Treble Bleed Circuit which helps in maintaining a uniform tone at different volume levels.

Your Tele deserves a treat!

Please let us know if you have questions or clarification.
Feel free to send a message and we will reply asap.

We also do custom wirings. Just let us know your requirements.

Tips:
Standard Wiring Diagrams are in the product photo.
Learn more about guitar wiring by joining our F.B. group: Guitar Wiring Philippines

**********
We specialize in custom guitar wiring and handwound pickups.

Please let us know if you have questions or clarification.
You can also check our website for more wiring guide info.

Feel free to send a message and we will reply asap.
