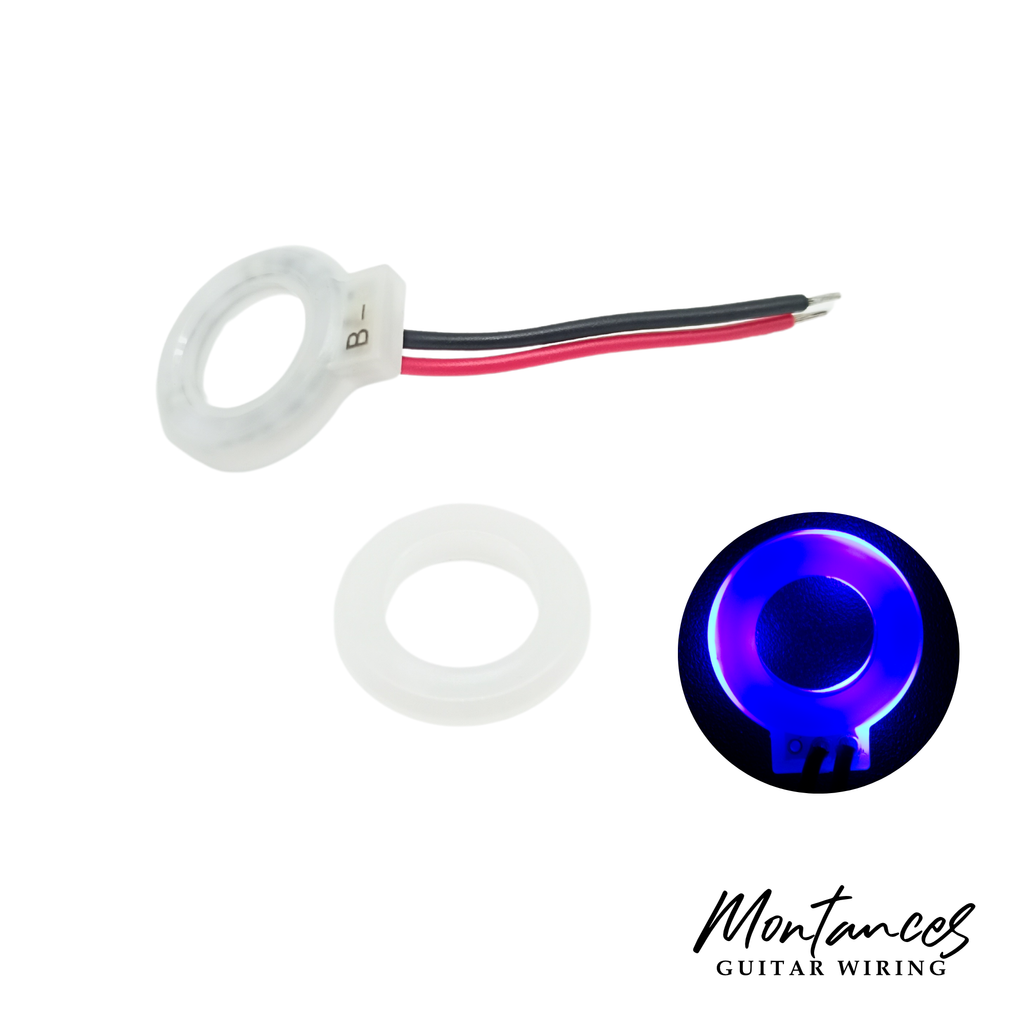

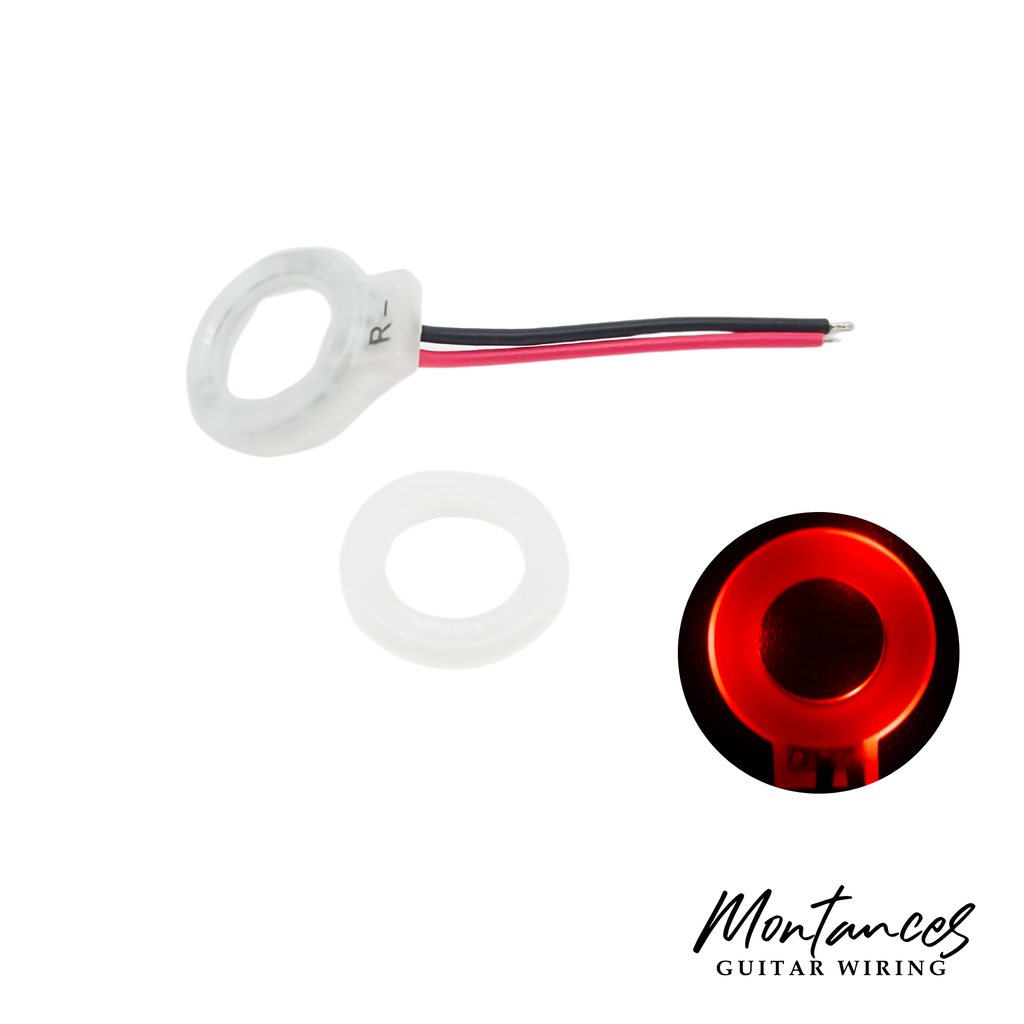

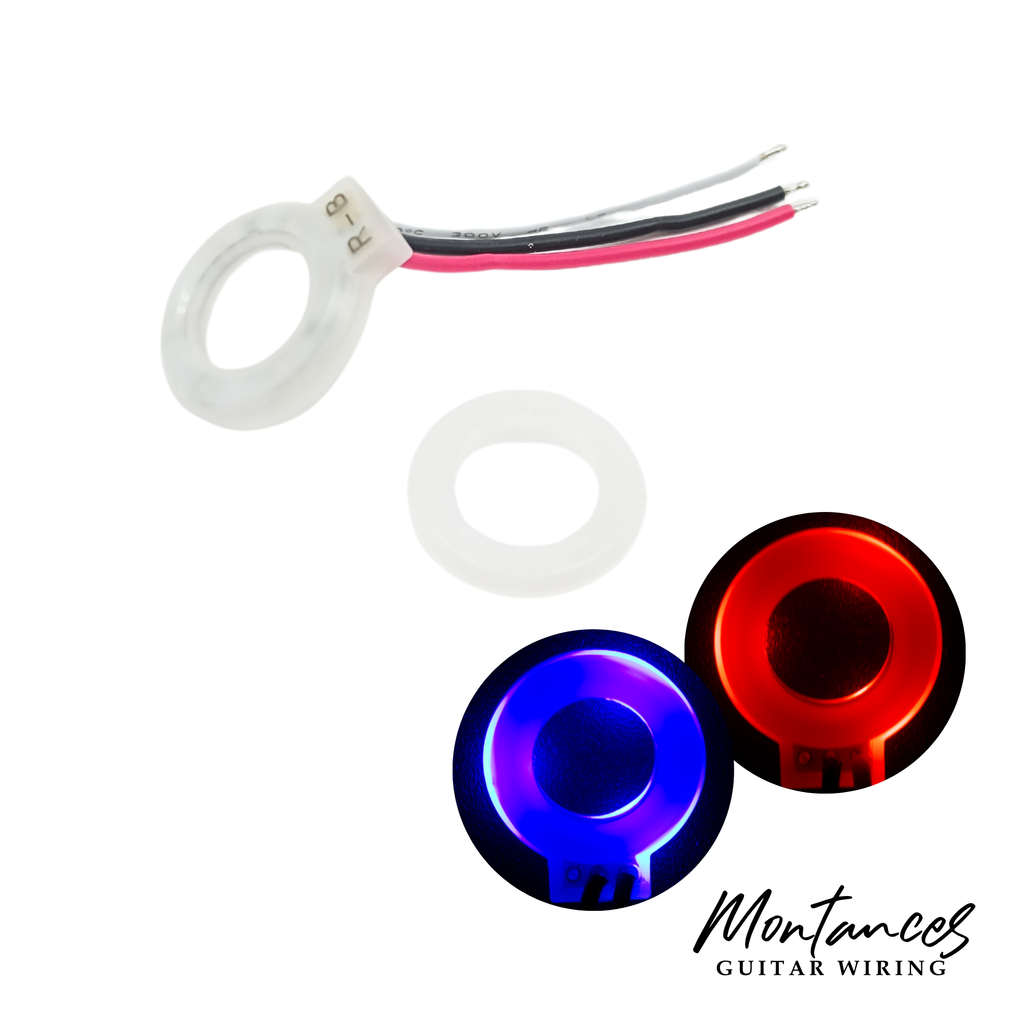

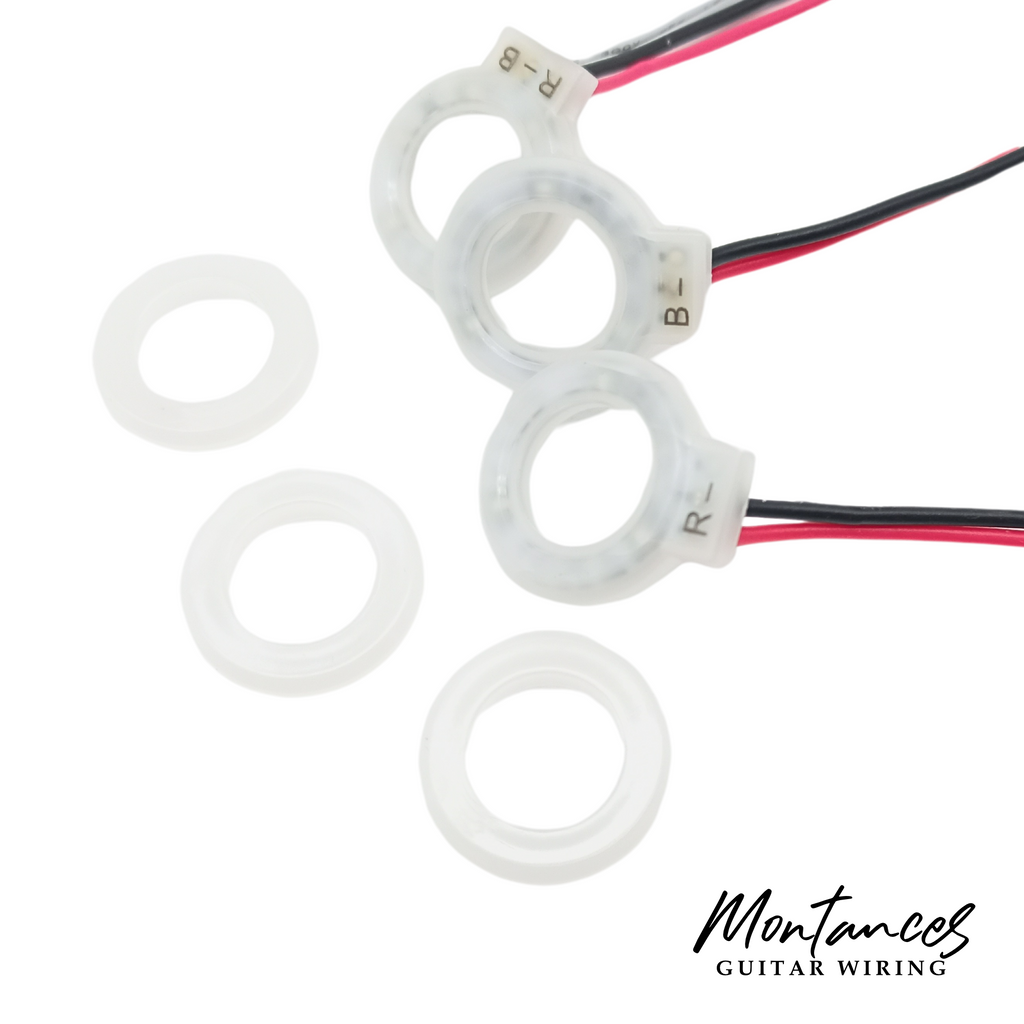

Footswitch LED Ring with Bezel, 9V

 Footswitch LED Ring with Bezel, 9V

Illuminate Your Pedal with Our 9V LED Footswitch Ring

Enhance your pedalboard with these leaded LED rings, designed specifically for standard footswitches. These LED rings feature an array of LEDs with built-in current limiting, eliminating the need for additional components when using 9VDC power. Available in red, green, blue, and two-color combinations, these rings offer versatile lighting options to suit your style.

Key Features:

• Easy Integration: No additional parts needed for use with 9VDC, thanks to internal current limiting.

• Versatile Color Options: Available in red, green, blue, and two-color combinations to match your pedal's design.

• Durable Construction: Made with a sturdy bezel and robust LED array for long-lasting performance.

Specifications:

• Bezel Dimensions:

• Inner Lip Diameter: 14.8mm

• Outer Diameter: 20mm

• Outside Thickness: 2mm

• Total Thickness: 3.4mm

• LED Ring Dimensions:

• Inner Diameter: 12mm

• Length with Wire Mount: 24.1mm

• Outer Diameter: 21mm

• Thickness: 4mm

• Voltage: 9VDC

• Wire Mount Dimensions:

• Thickness: 3.2mm

• Width: 9.7mm

Packaging Information:

• Dimensions: 0.945 in. × 0.852 in. × 0.255 in.

• Weight: 0.0044 lbs.

Compatibility Note: Ensure a 15mm panel hole for proper fitment with your footswitch. Refer to the full dimensions to check compatibility with your specific setup.

Why Choose Our LED Footswitch Ring?

Upgrade your pedalboard with these easy-to-install LED rings, providing vibrant illumination and a professional look. Perfect for enhancing visibility and adding a custom touch to your gear.
