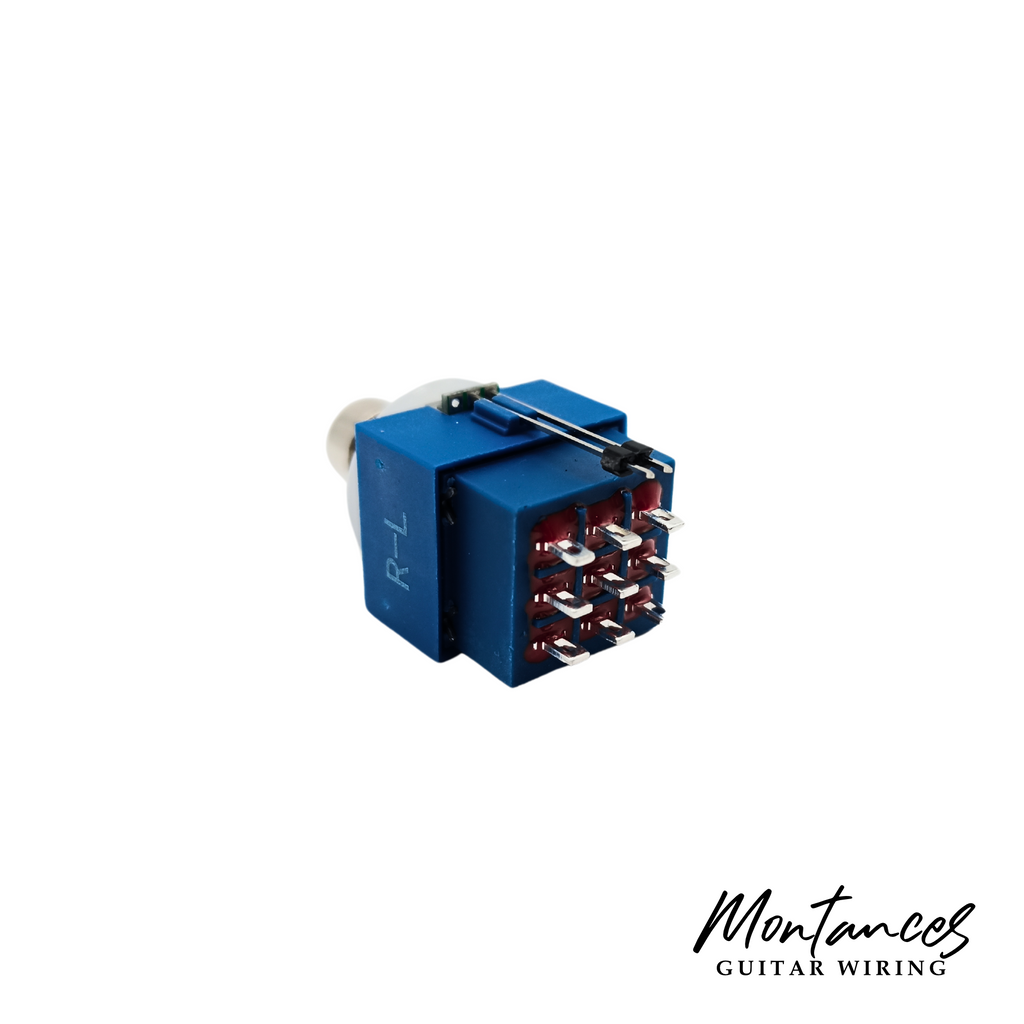

Foot Switch 3PDT, Push Button, Latching, 9 Pin with LED for guitar pedals

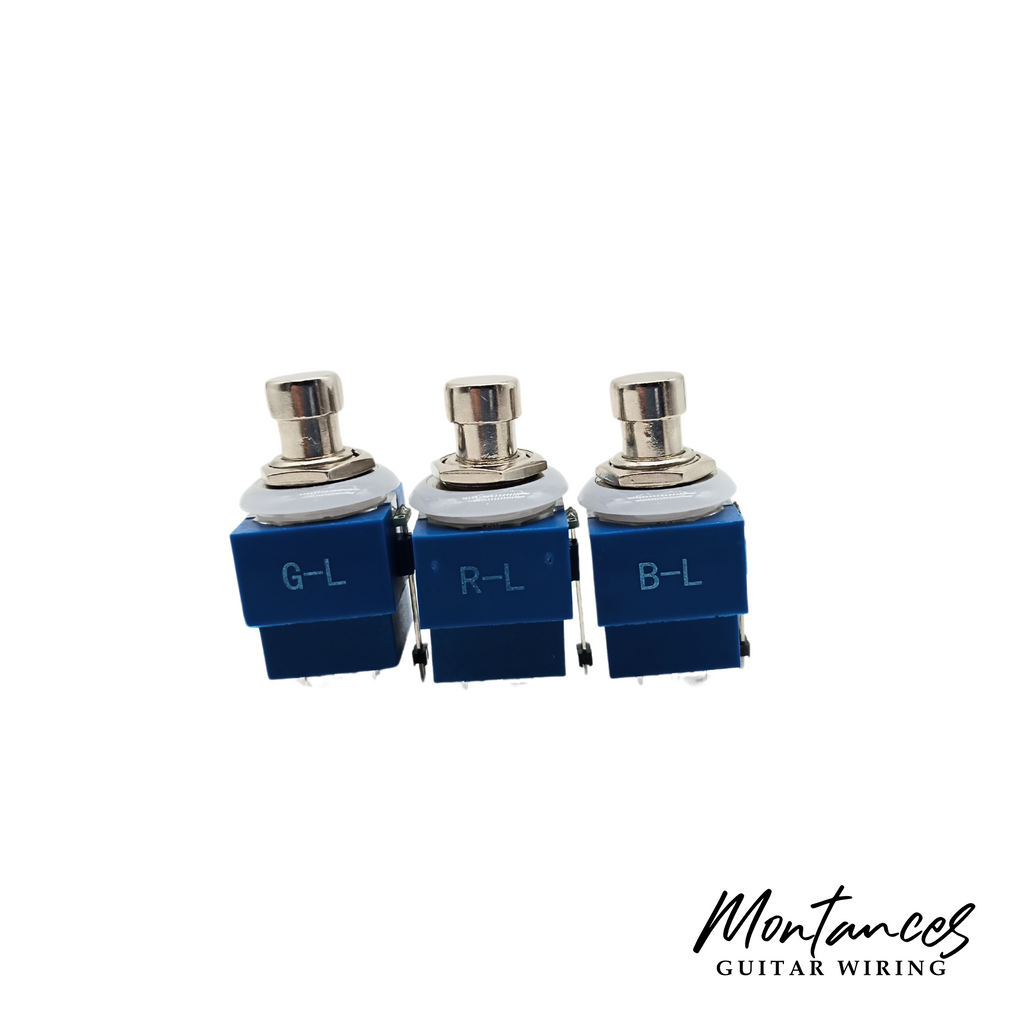

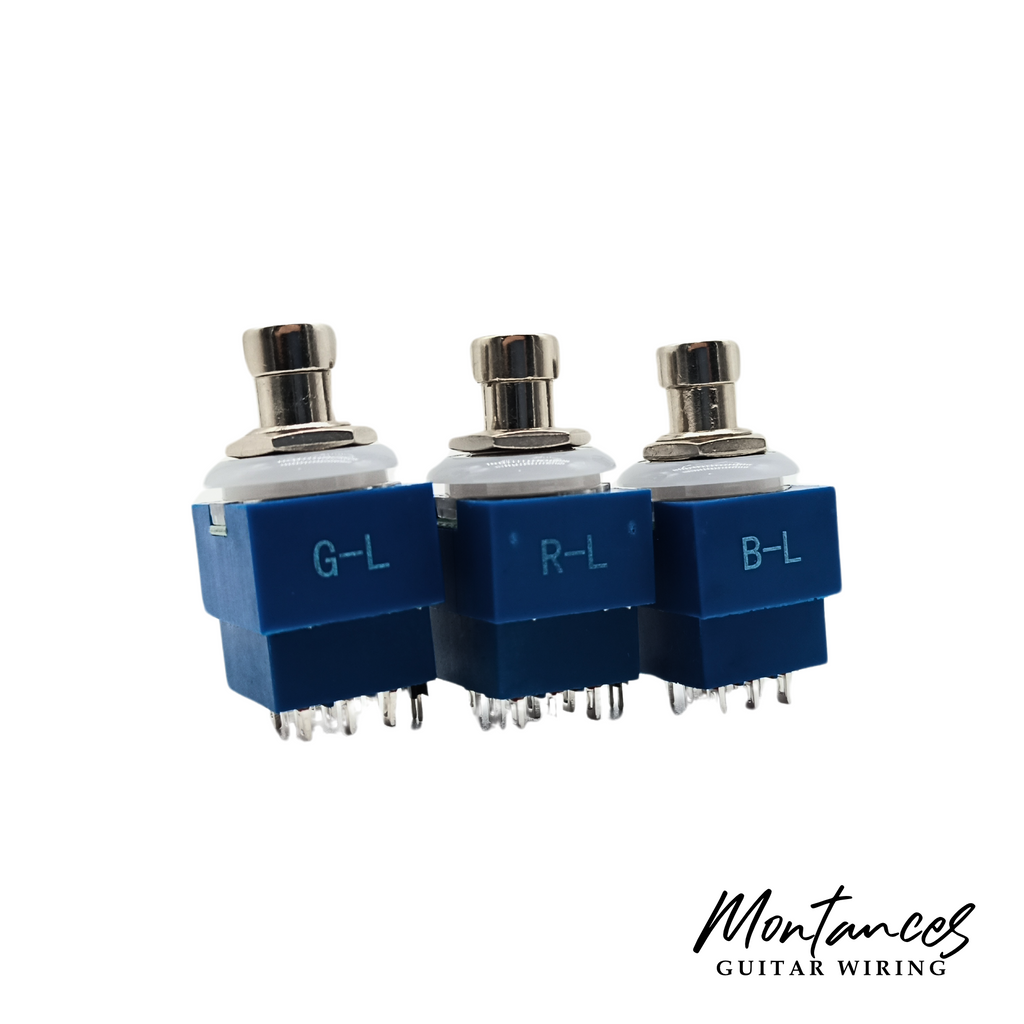

High-Quality 3PDT Push Button Foot Switch with Red, Blue, and Green LEDs

Upgrade your pedal builds with our premium 3PDT push button foot switch. This latching switch offers reliable performance and is equipped with solder terminals for easy installation. Available in red, blue, and green LED variants, it provides visual indication for various applications.

Caution! External resistors are needed for the LEDs. Otherwise, you will burn and destroy them permanently!

Key Features:

  • 3PDT Latching Action: Offers reliable on-on functionality for a variety of uses.

  • Built-in LED Indicator: Available in red, blue, and green for visual feedback.

  • High Current Ratings: Supports 4A at 125VAC, 2A at 250VAC, and 4A at 30VDC.

  • Durable Construction: Rated for over 10,000 cycles, ensuring long-lasting use.

  • Wide Operating Temperature Range: Suitable for environments from -25°C to +85°C.

  • Solder Terminals: Simplifies the wiring process with secure connections.

Specifications:

  • Electrical Ratings:

    • @ 125VAC: 4 A

    • @ 250VAC: 2 A

    • @ 30VDC: 4 A

  • Ambient Temperature: -25°C to +85°C

  • Contact Resistance: < 50MΩ

  • Insulation Resistance: > 100MΩ @ 500VDC

  • Dielectric Strength: > 1000VAC for 1 minute

  • Electrical Life: > 10,000 cycles

LED Information:

  • Resistor Requirements: External resistors are needed for the LEDs.

    • Recommended range: 330 ohms to 1k ohms with a 9V battery or power supply.

    • 680 ohms is a good choice for balancing brightness and battery life.

  • LED Voltage:

    • Red: Begins to glow at 1.3V, sufficient light at 1.8V.

    • Green: Begins to glow at 2V, full brightness at 2.8V.

    • Blue: Begins to glow at 2.5V, full brightness at 3.2V.

Packaging Information:

  • Dimensions: 1.7 in. × 0.855 in. × 0.75 in.

  • Weight: 0.0507 lbs.

Installation Tips:

  • Ensure the use of appropriate resistors for the LED to prevent damage and ensure optimal performance.

  • The recommended resistor values are 330 ohms to 1k ohms, with 680 ohms being ideal for prolonging battery life.

Why Choose Our 3PDT Foot Switch with LED?

Our 3PDT push button foot switch combines reliable latching action with bright LED indicators, making it perfect for custom pedal builds and other applications requiring visual feedback. Its robust design and high current ratings ensure dependable performance, while the solder terminals facilitate easy installation.
