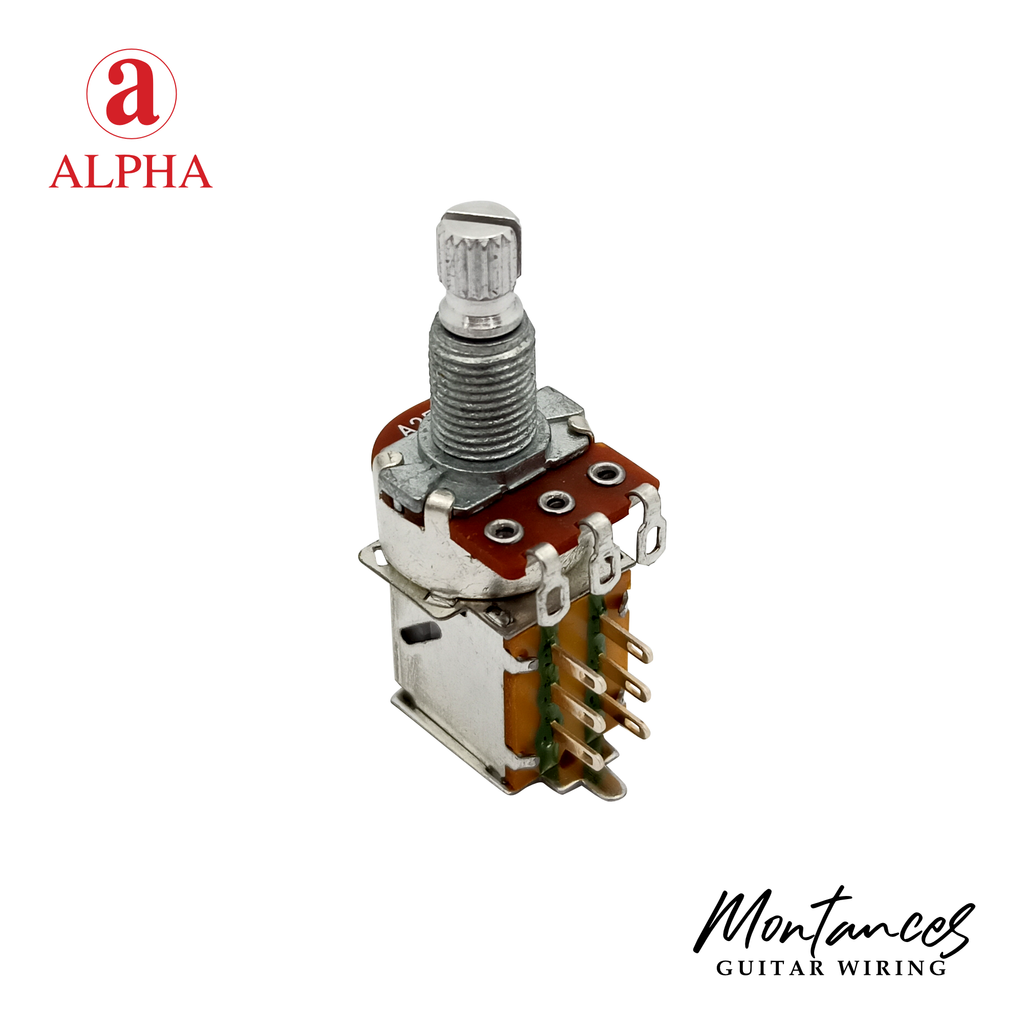

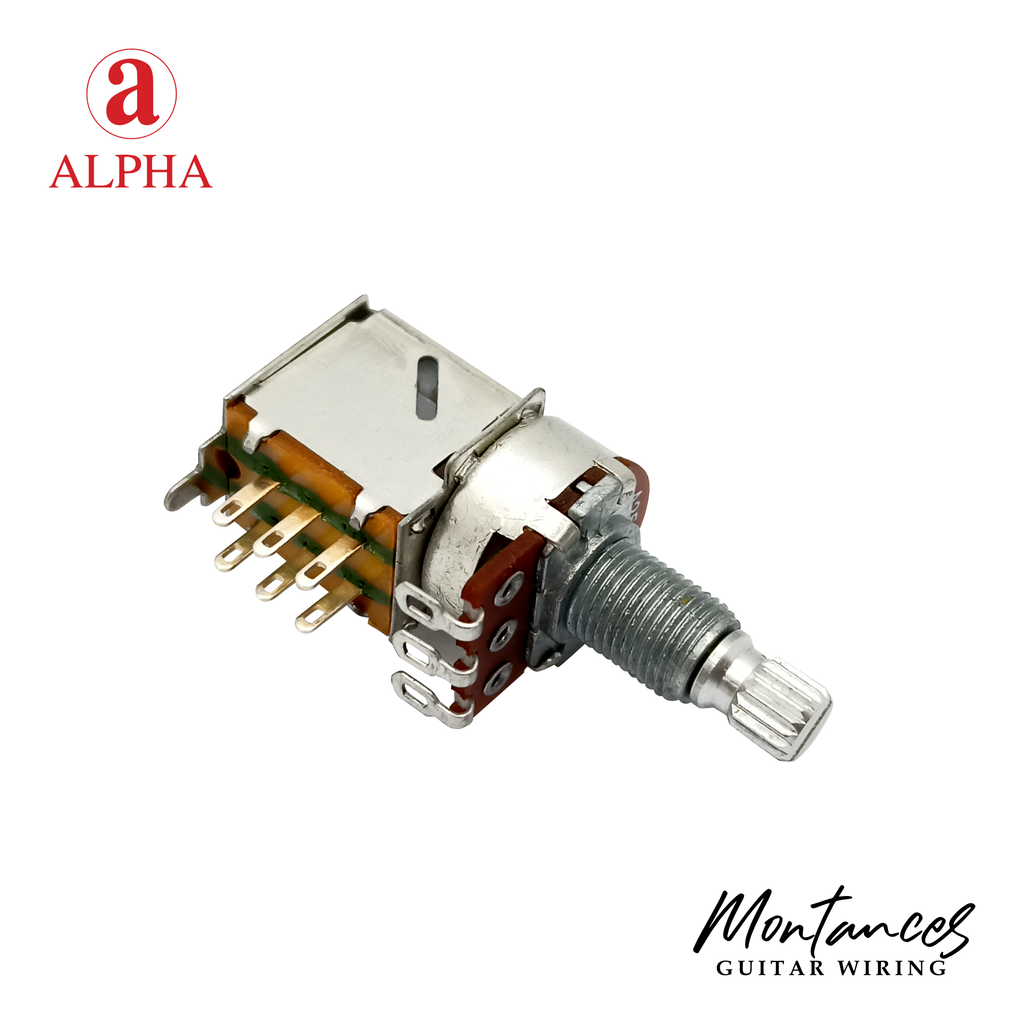

Alpha® Metric ⅜” Standard Length Push-Pull Potentiometer (Split Shaft)

Alpha® Metric ⅜” Standard Length Push-Pull Potentiometer

₱442.00 ₱553.00
27 sold

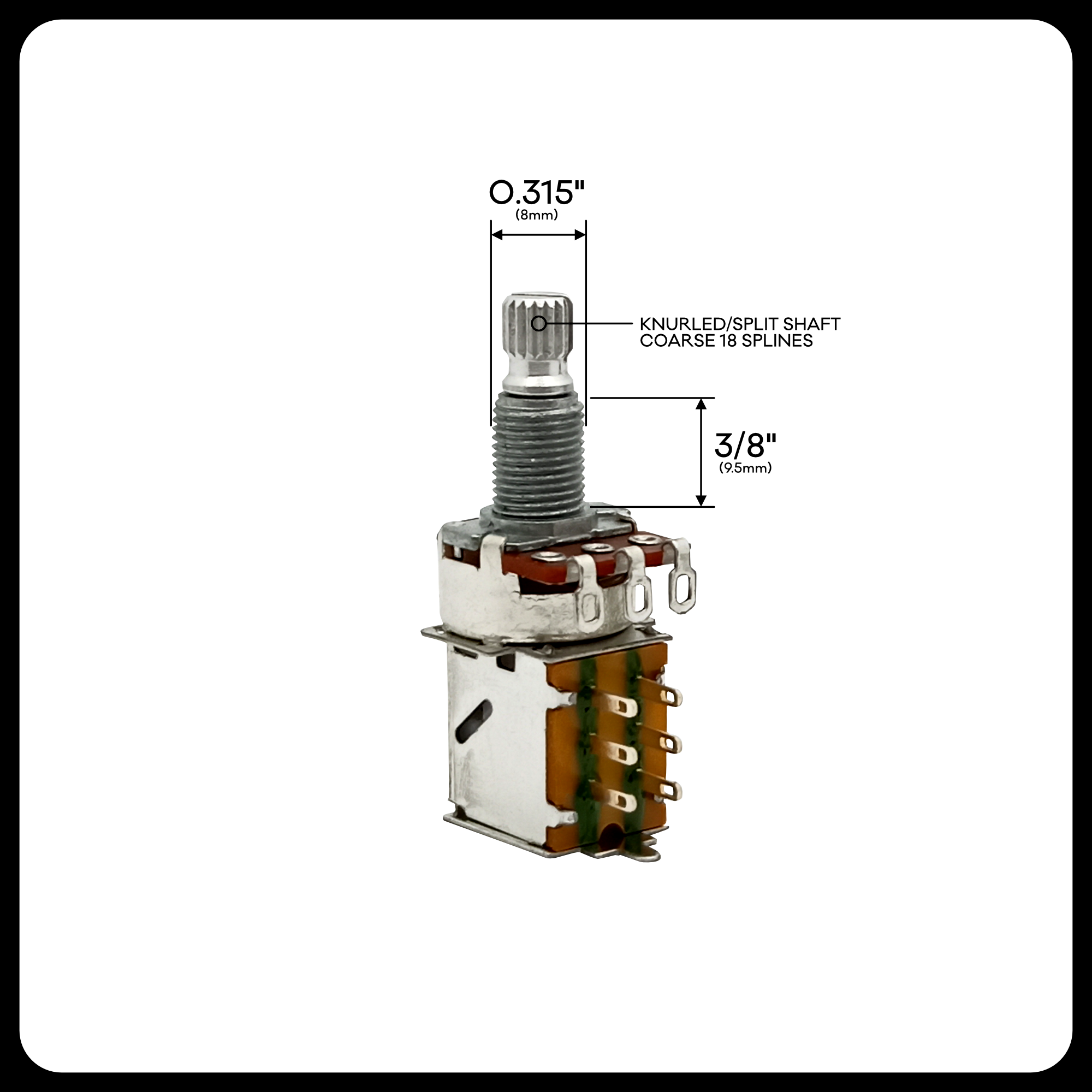

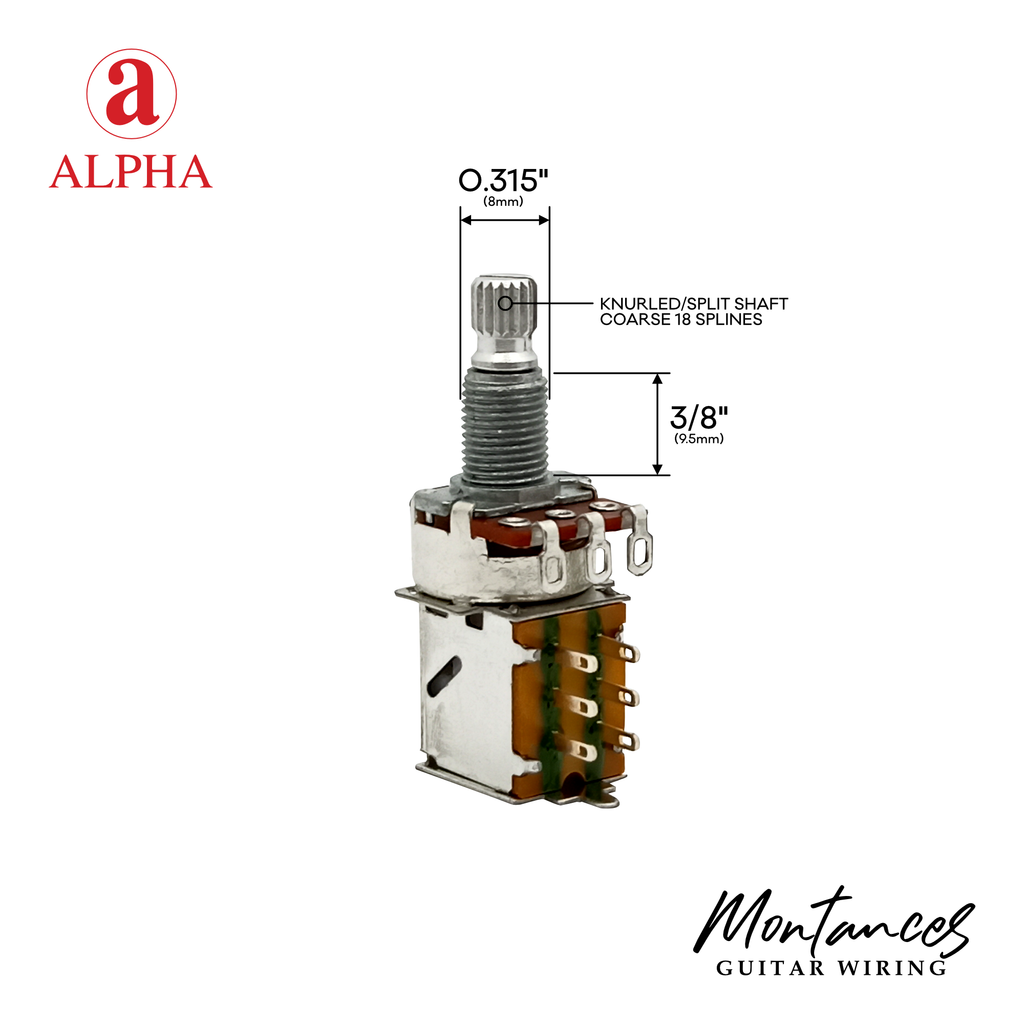

8mm bushing · 3/8" (9.5mm) standard length Split, 18 splines (Coarse) Wood top, body, or pickguard
Fits Asian / metric guitars
Shaft Split, 18 splines (Coarse)
Thread 8mm bushing · 3/8" (9.5mm) standard length
Mounting Wood top, body, or pickguard

Options

Value & Taper

Will it fit my guitar?

    Fit values for this pot are stored in four product fields (fit, thread, mounting, shaft). If a product has no values, this checker hides itself.

    Typical US pots use a 3/8″ (9.5mm) bushing and 24 splines. Typical Asian pots use an 8mm bushing and 18 splines.

    Technical specifications

    Value 250K, 500K
    Taper Audio, Linear
    Fits Asian / metric guitars
    Thread 8mm bushing · 3/8" (9.5mm) standard length
    Mounting Wood top, body, or pickguard
    Shaft Split, 18 splines (Coarse)
    Brand Alpha

    US vs Asian pots

    US pots (CTS and similar) usually have a 3/8″ (9.5mm) bushing and fine 24-spline shafts.

    Asian or metric pots (Alpha, many Bourns) usually have an 8mm bushing and coarse 18-spline shafts.

    A metric pot drops loosely into a US hole. A US pot will not fit a metric hole without enlarging it.

    Knobs must match the spline count. Forcing the wrong one can break the shaft.

    Will this Alpha® Metric ⅜” Standard Length Push-Pull Potentiometer fit my guitar without drilling?
    This pot uses an 8mm bushing · 3/8" (9.5mm) standard length designed for Asian / metric guitars. It drops straight into most Asian-made and metric guitars (Squier, Epiphone, Ibanez, Yamaha, Cort, etc.) without drilling. On USA-made guitars with larger 3/8" (9.5mm) holes, it mounts with the washer, though a US 3/8" bushing pot gives a snugger fit.
    Which knobs fit this potentiometer (Split, 18 splines (Coarse))?
    This pot has a Split, 18 splines (Coarse) shaft and requires 18-spline (metric coarse-knurl) push-on knobs (or universal set-screw knobs). 24-spline US knobs will not seat properly on an 18-spline shaft.
    Is the thread length right for a pickguard, control plate, or wood top?
    This model has a 8mm bushing · 3/8" (9.5mm) standard length suited for wood top, body, or pickguard (standard rear-routed wood tops up to ~6mm thick, pickguards, and control plates). For thick carved tops (>12mm), choose a 3/4" (19mm) long-thread pot instead.
    Which option should I choose (250K / Audio, 250K / Linear, 500K / Audio, 500K / Linear)?
    Available options for this pot: 250K / Audio, 250K / Linear, 500K / Audio, 500K / Linear.Choose 250K for single-coil pickups (Strat, Tele, Jazz/P-Bass) to smooth out bright highs, or 500K for humbuckers and P-90s to preserve clarity and top-end chime. Audio Taper (A / Log) matches how the human ear hears volume changes (ideal for Volume and most Tone controls), while Linear Taper (B) sweeps resistance at a uniform rate.

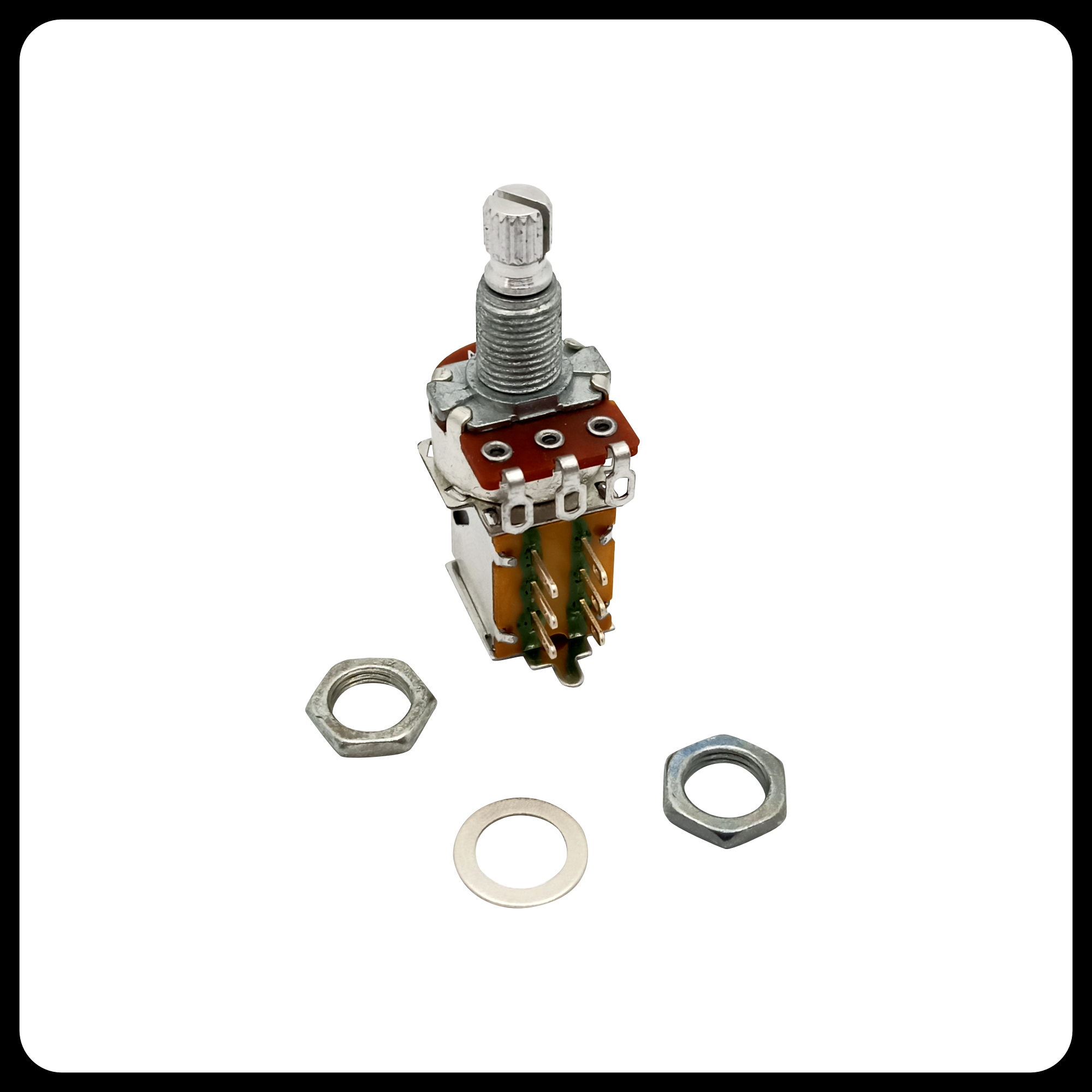

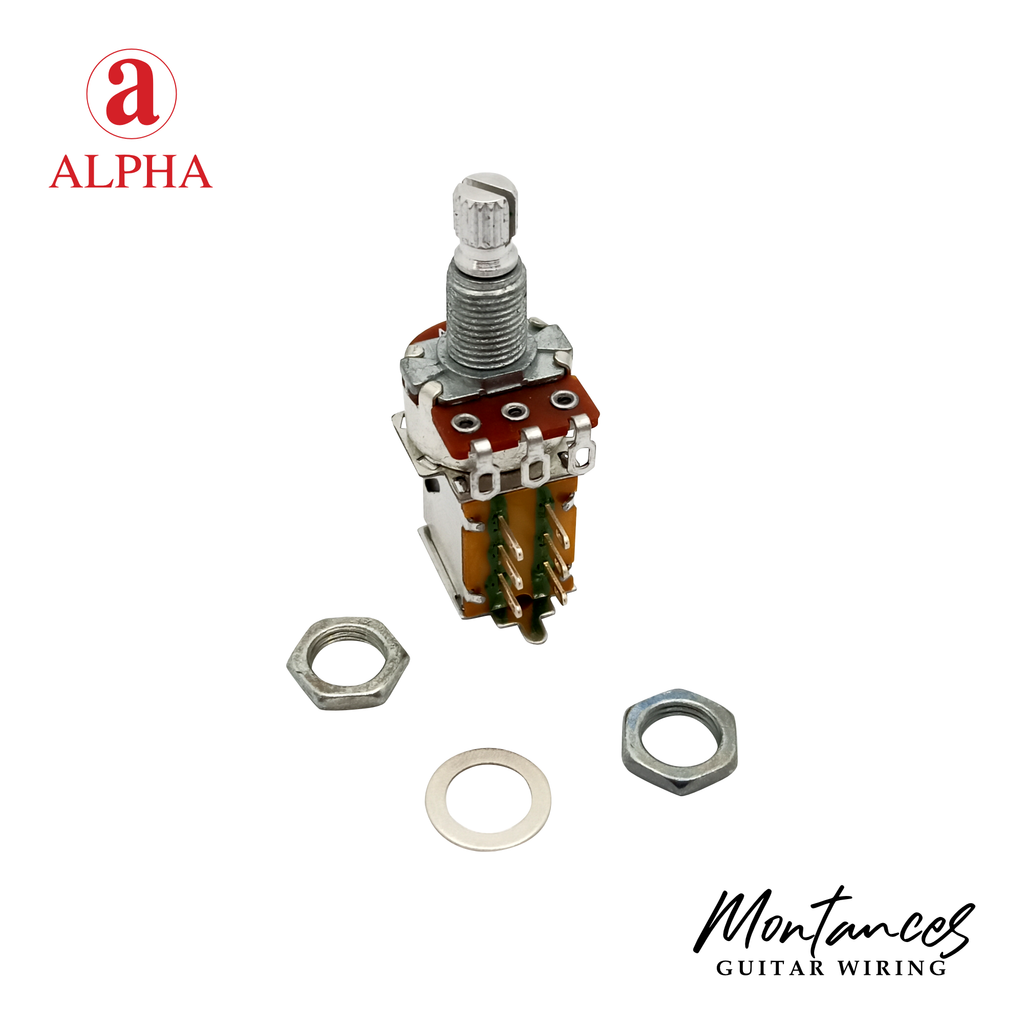

    Does this Alpha pot include mounting hardware?
    Yes—each potentiometer includes its matching mounting nut and washer(s). When soldering ground wires to the back of the casing, use a 40W–60W iron with rosin-core solder and keep heat contact brief (2–3 seconds) to protect the internal conductive track.
